wood veneer peeling lathe

The rotary cutter is used to rotary cut wood segments into veneer. The general method of rotary cutting is as follows: the left and right chuck axes clamp the two ends of the wood section and drive it to rotate. The knife blade mounted on the knife bed is parallel to the axis of the chuck and makes a feeding motion along its vertical direction, and the veneer of equal thickness is cut along the direction of the wood segment’s annual wheel.

Product Description

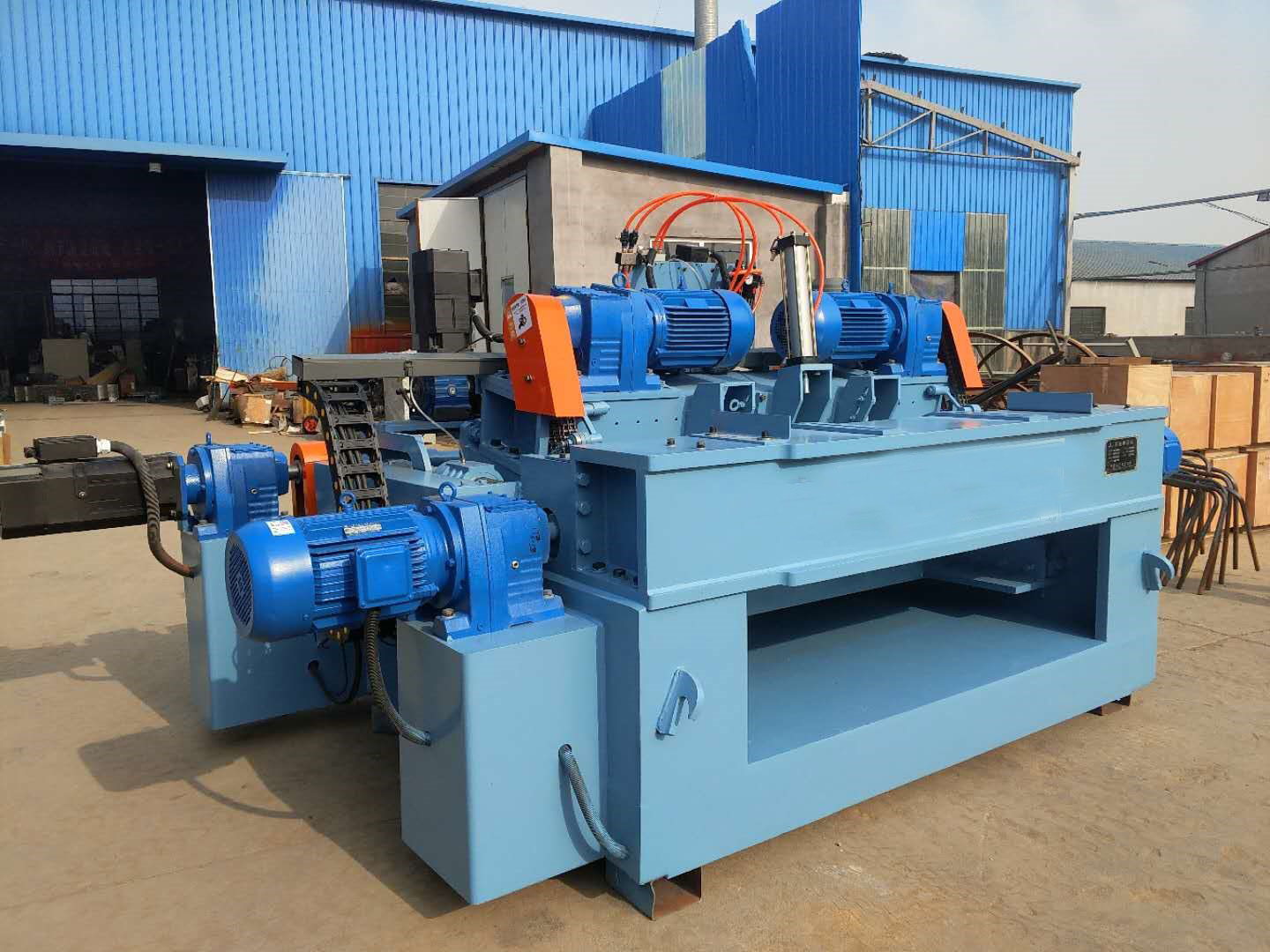

Wood Veneer Peeling Lathe

spindleless veneer peeling lathe
30-110M/MIN All Servo Speed Adjustable Model
30-80m/min Model
30-110m/min Model
Roller length
1500mm
1500mm
Opening
500mm
500mm
Remain logs diameter
28mm
24mm
Peel thickness
0.8-4mm
0.8-4mm
Cutting width
≥400mm
≥400mm
Peel speed
30-80m/min
30-110m/min
Single roller power
7.5kw*2 (Huali)
11kw*2 (servo motor)
Double roller power
7.5kw*2 (Huali)
11kw*2 (servo motor)
Feeding power
7.5kw (servo motor)
7.5kw(Servo motor)
Total power
40.5kw
56kw
Screw diameter
90mm
90mm
Control unit

Peeling Speed Adjustable System

Closed Loop Servo Control

Peeling Speed Adjustable System

Closed Loop Servo Control
Total weight
6000kg
7000kg
Overall dimension
4200*2300*1550mm
4200*2500*1200mm
Our Advantages



spindleless veneer peeling lathe
wood veneer peeling machine
LEAD CONTROL SYSTEM
The CNC PLC control system is Lead system with driver or inverter, it is more stable, specially designed for our  wood veneer peeling lathe.
It can guarantee veener with good surface and even thickness in high peeling speed.
wood veneer peeling machine
SERVO MOTOR
Our feeding motor and clipping motor adopts Futian Servo motor. It is better than other brand servo motor.
The accurate feeding will make veneer thickness more even, and clipper servo motor gives an accurate cutting width.
wood veneer peeling machine
HUALI BRAND MOTOR
All normal motors are Huali brand, the best China motor brand. All reducer is Helical Gear type.
It is more stable and long service life.
wood veneer peeling machine
2 CUTTING WIDTH SHIFT IN ONE LOG
The cutting width can set 2 width and shift freely.
And the cutting blade action is faster, it can save the veneer, no any waste of veneer.
wood veneer peeling machine
SCREW FIXING FRAME
Whole machine frame is fixed by screw instead of welding.
Welding will destroy steel inside structure, and result in transshape after several years.
But screw fixing frame can guarantee frame no out of shape.
wood veneer peeling machine
TAIWAN FEEDING SCREW
Taiwan high quality feeding screw, screw diameter is 90mm, much bigger than other factorys.
Very accurate feeding, wear-resisting and long service life.
wood veneer peeling machine
Matching machines
wood veneer stacker
wood veneer stacker for veneer peeling line
Model
4*4FT Vacuum Stacker
4*8FT Vacuum Stacker
Veneer Length
660-1300mm
500-2600mm
Veneer Width
960-1270mm
960-1270mm
Veneer Thickness
0.5-4mm
0.5-4mm
Veneer Sorting Grade
1 grading
1 grade (4*8ft)/2 grade (4*4ft)
Stacking Height
1000mm
1000mm
Vacuum Absorb Motor
1.5KW*4PCS
2.2KW*6Pcs
Total Power
23.2KW
32KW
Lifting Mode
Chain lifting
Hydraulic lift table
Total Weight
2400kgs
4300kgs
Overall Dimension
8000*2040*2750mm
8700*2000*2750mm
Our factory



sinoeuro plywood production line machine
sinoeuro plywood production line machine veneer peeling line
veneer peelinfg line factory
veneer peeling line manufacturer
Company Introduction
sinoeuro plywood production line machine
sinoeuro plywood production line machine
sinoeuro plywood production line machine
Packing & Shipping
sinoeuro plywood production line machine
To better ensure the safety of your goods, professional, environmentally friendly,
convenient and efficient packaging services will be provided.
