veneer peeling machine plywood production line

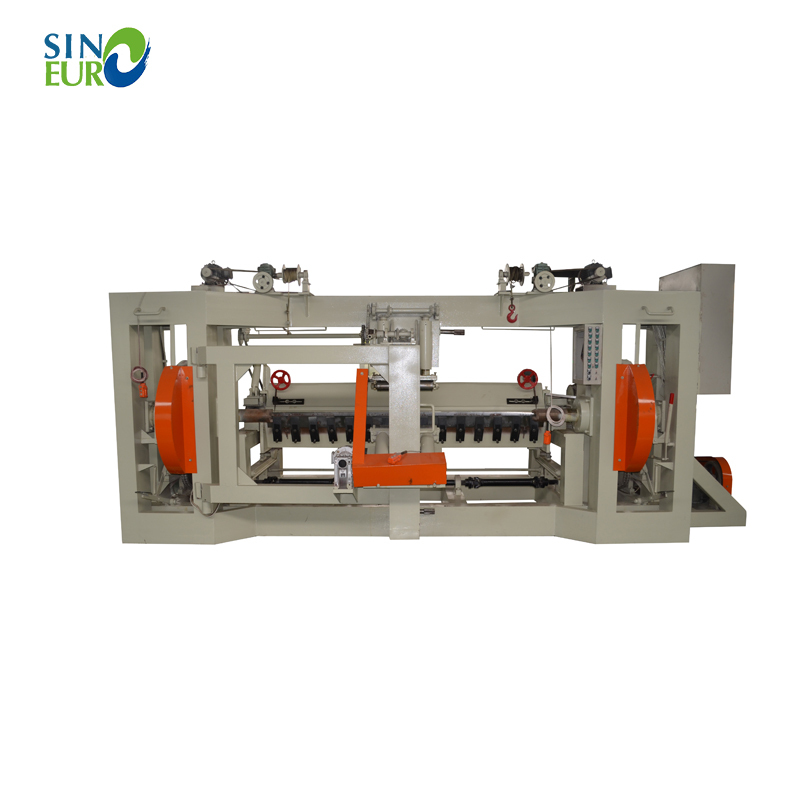

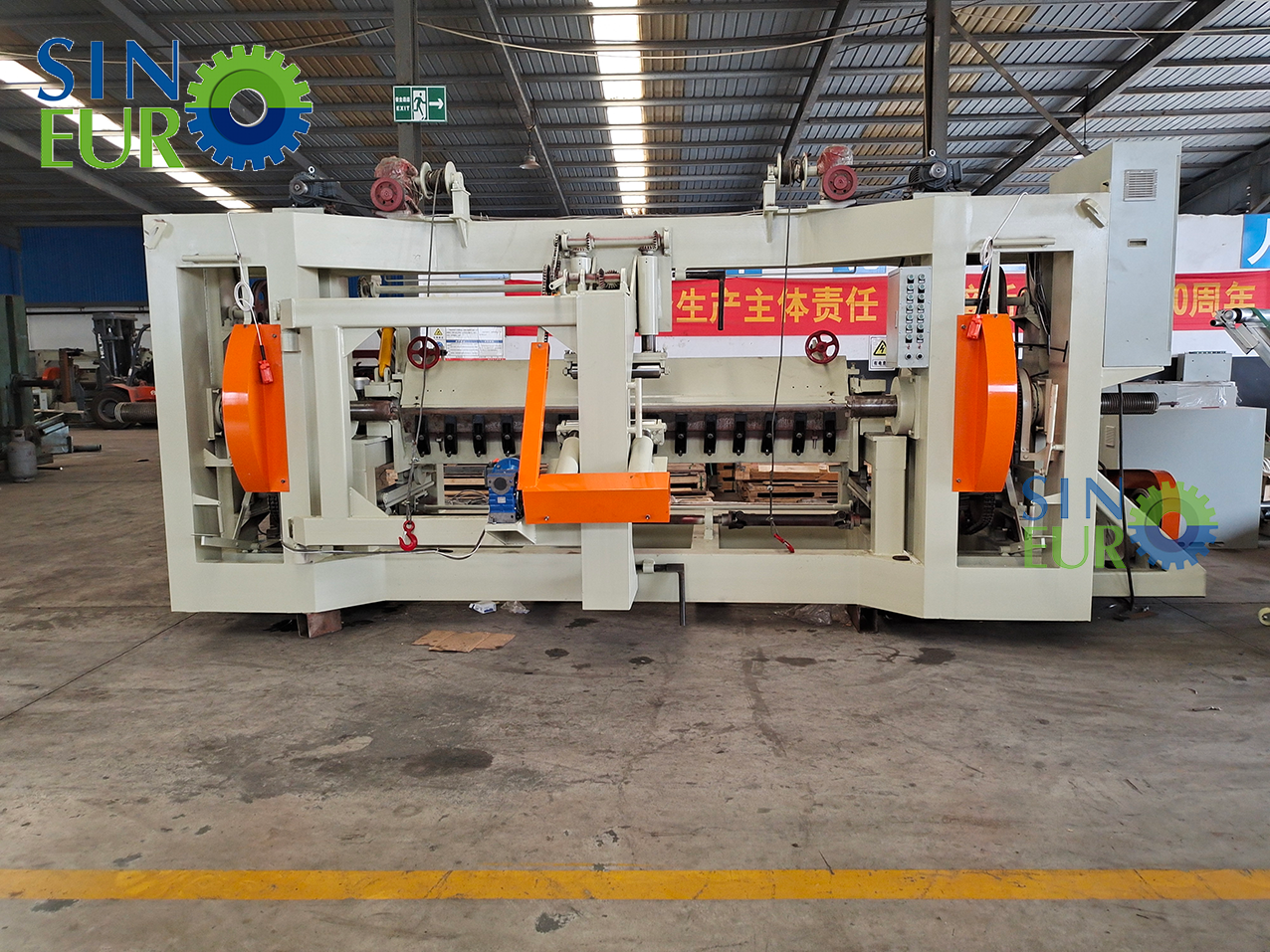

Horizontal spindle veneer peeling machine is one of important equipment for plywood production. It mainly produces about 0.2-2.2mm nature decoration veneer (face veneer) for plywood surface decoration. It is suitable for big diameter wood and diameter can be up to 1500mm. The machine can be customized according to client’s requirement.

Taiwan Delta brand inverter and Franch Schneider electric components, machine runs stably.

Rotary cutting with high accuracy, quick speed, veneer surface smooth.

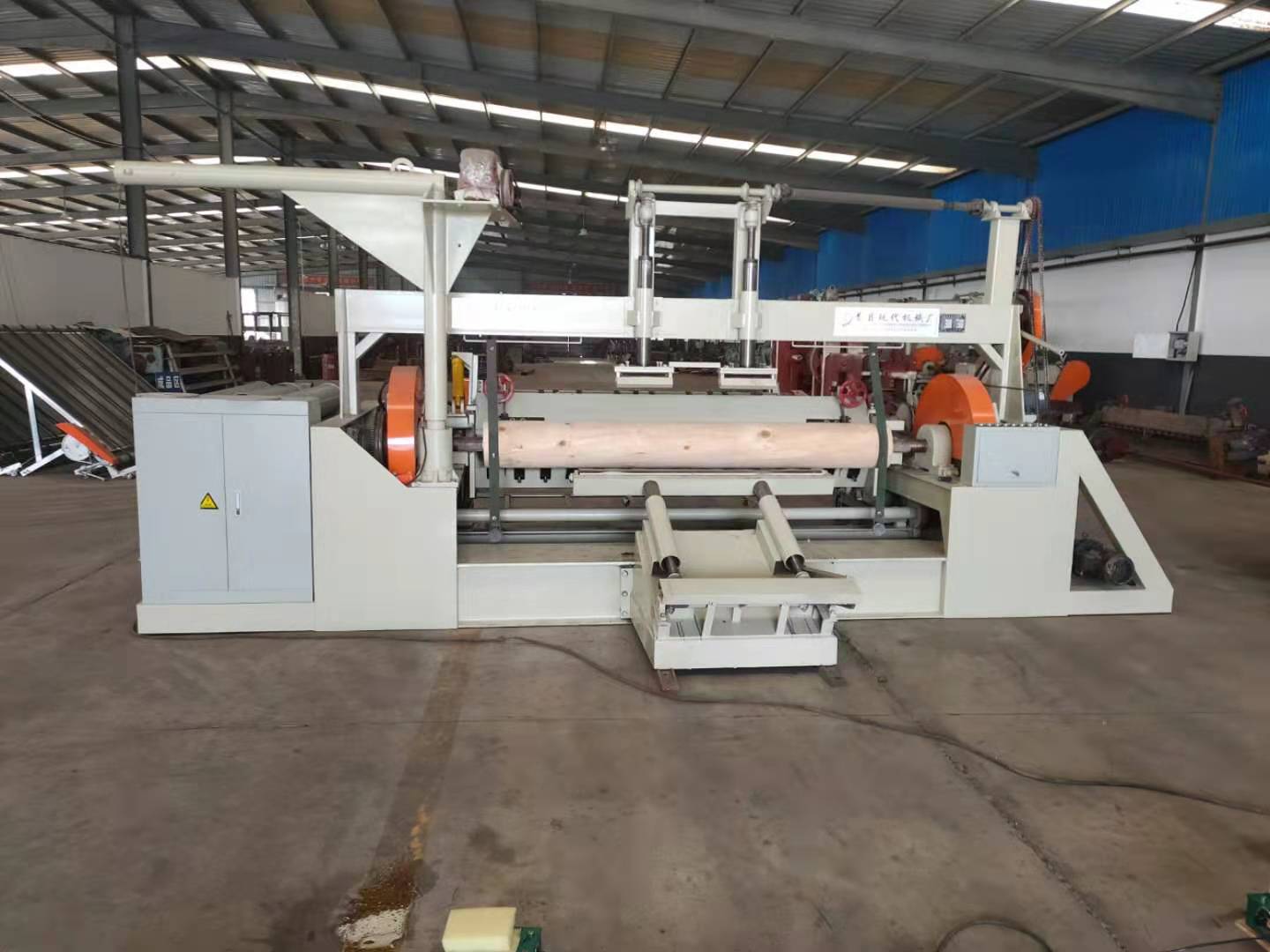

Veneer peeling machine plywood production line

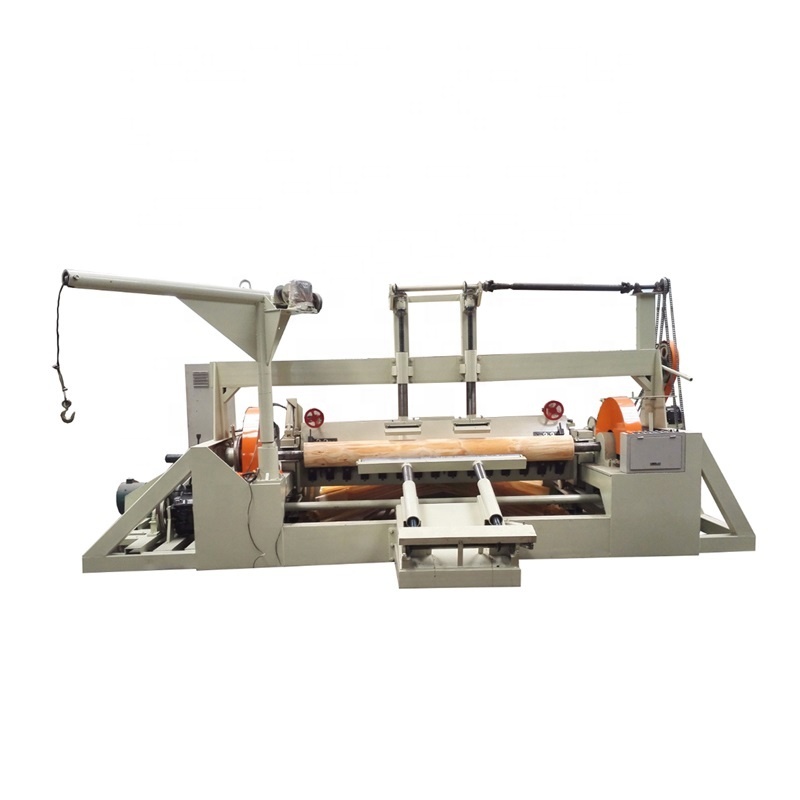

veneer peeling machine plywood production line
spindle veneer peeling machine plywood production line

Can be customized !! (click)
Please contact us

Specification
Name and Model
8ft vertical spindle venner peeling machine
8ft horizontal spindle veneer peeling machine
Max length of peeler log
2000-2600mm
2000-2600mm
Max peeling log diameter
1500mm
900mm
Remain wood core diameter
120mm
120mm
Peeling speed
0-80m/min
0-80m/min
Machine operation
remote controller & button on the machine
remote controller & button on the machine
Slicer veneer thickness
0.1mm-2.6mm
0.1mm-2.6mm
Capacity
Max 10 CBM face veneer/10hr a day (0.2mm face veneer)
Max 10 CBM face veneer/10hr a day (0.2mm face veneer)
Total motor power
22kw+4kw*2+1.5kw+1.1kw+0.75kw+1.1kw+1.1kw=35.55kw
22kw+4kw*2+1.5kw+1.1kw+0.75kw+1.1kw+1.1kw=35.55kw
Clamping chuck
double chuck clamping
double chuck clamping
Electronic parts brand
Schneider
Schneider
Total weight
8000KG
8000KG
Overall dimensions
6000mm*2300mm*2600mm
5500mm*3000mm*2600mm
Product Description
veneer peeling machine for plywood production line
veneer peeling machine price

Automatic veneer peeling machine plywood production line
veneer peeling machine line
veneer peeling machine line
veneer peeling machine line
It mainly produces about 0.2-2.2mm nature decoration face veneer for plywood surface decoration.
The machine can be customized according to client’s requirement.
Rotary cutting with high accuracy, quick speed, veneer surface smooth.

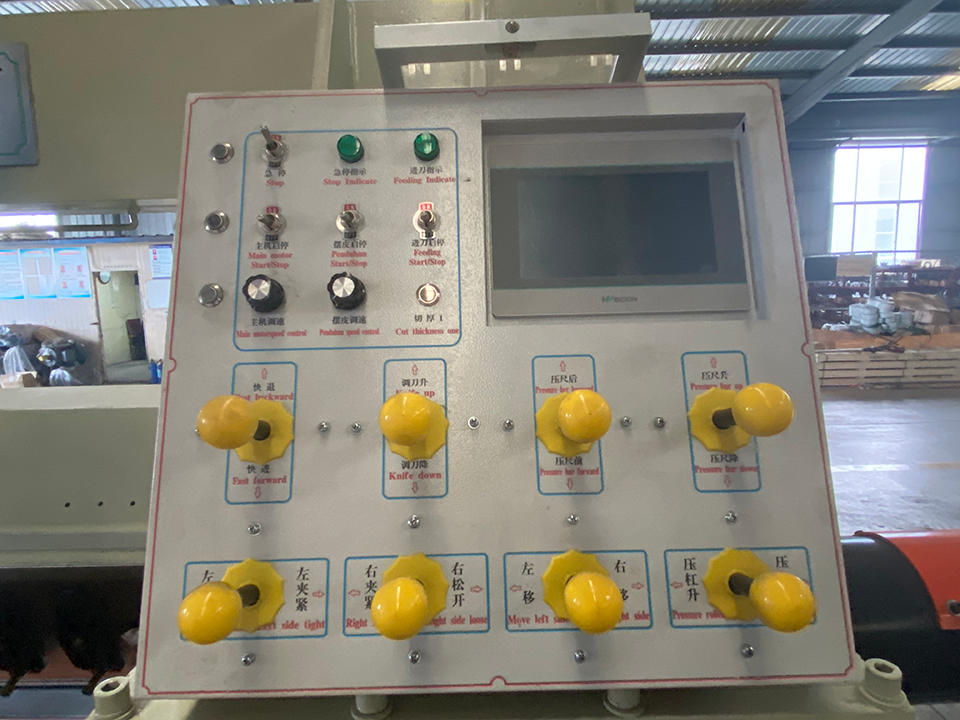

Touching screen control system.

You can set all kinds parameters in this system, and language showing in this controlling screen, can be translated into your country’s own language.

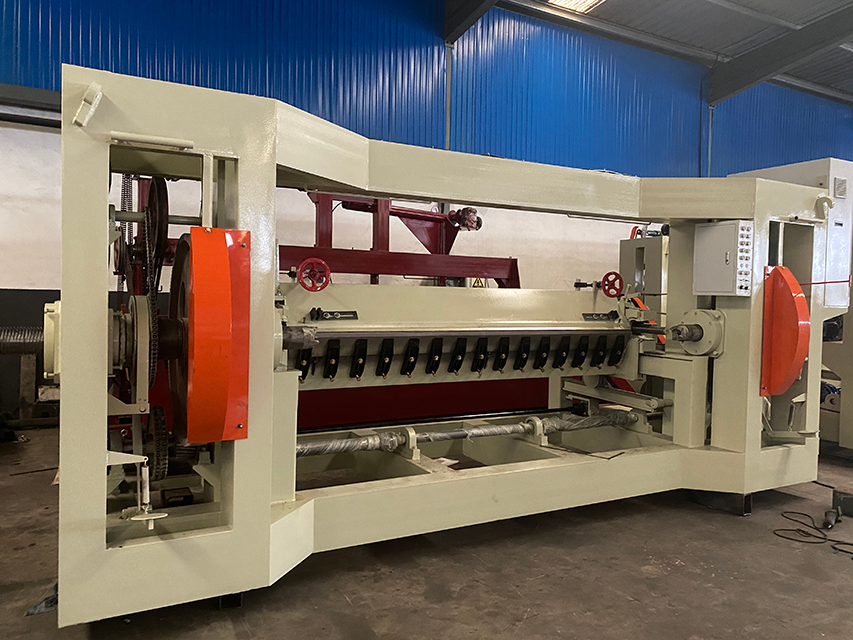

veneer peeling machine line

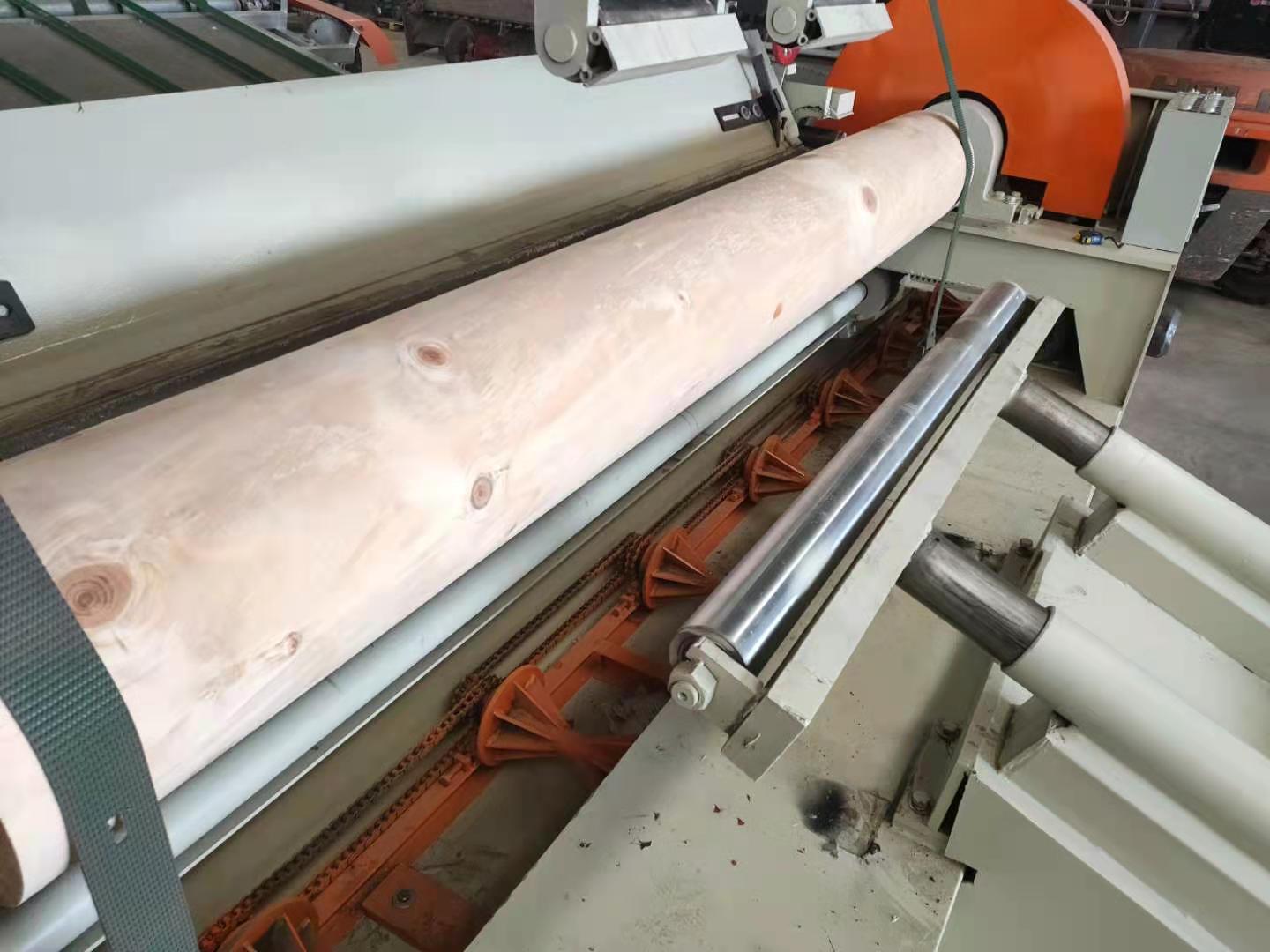

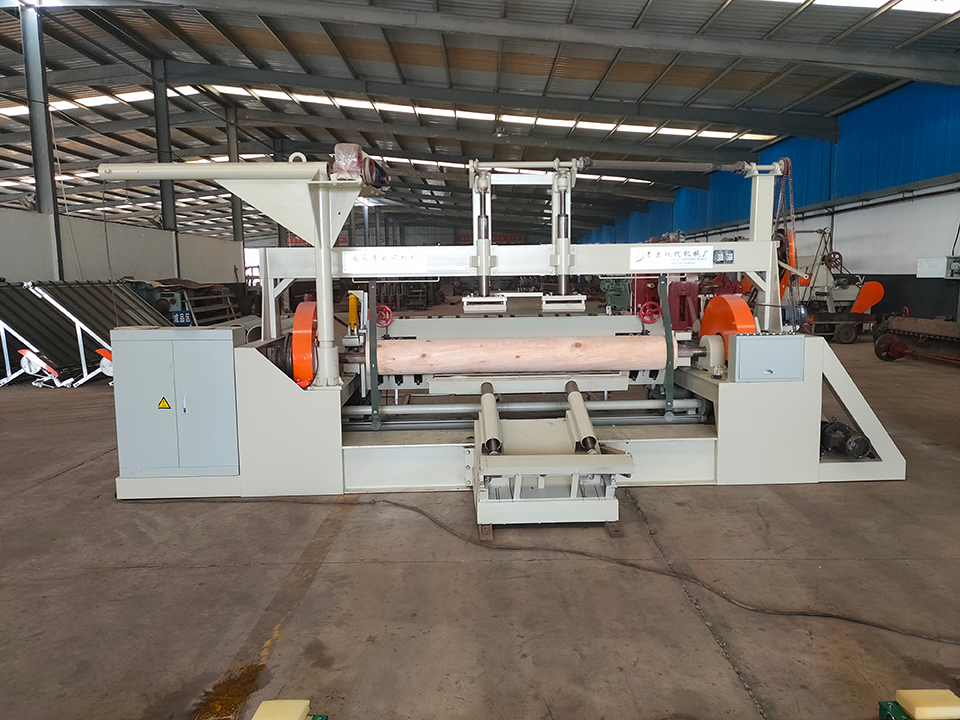

It is used to rotary cut the big diameter wood and wood diameter can be up to 1500mm.

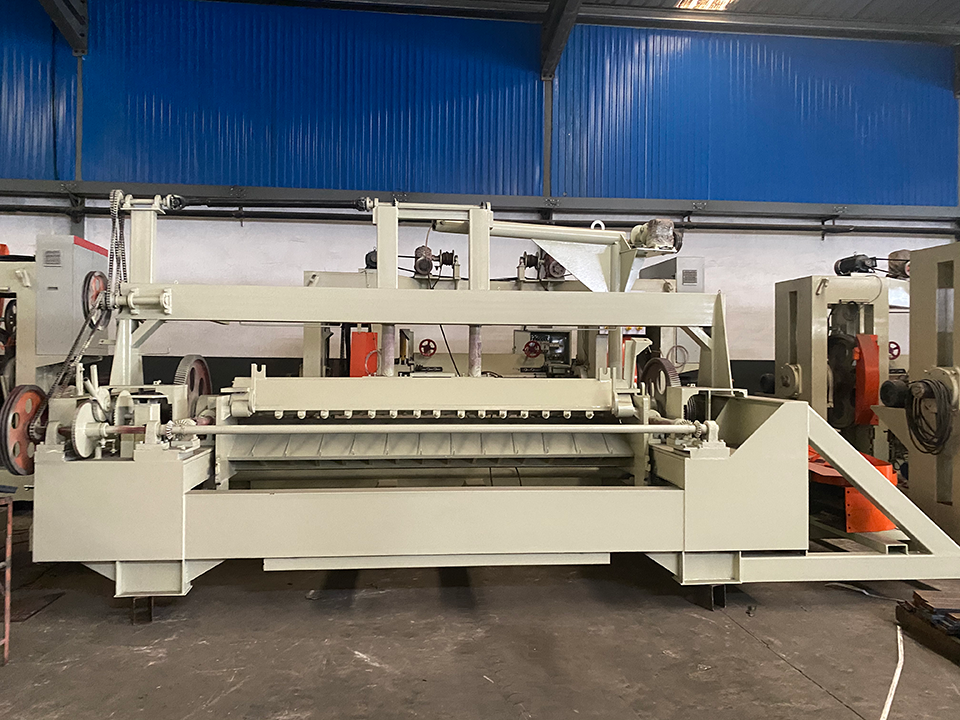

veneer peeling lathe


Min. diameter of the wood core after peeling is 120mm, can max. help save wood log material.

Automatic lubrication system. Ensure machine running stable, so the using life of the machine is extended.

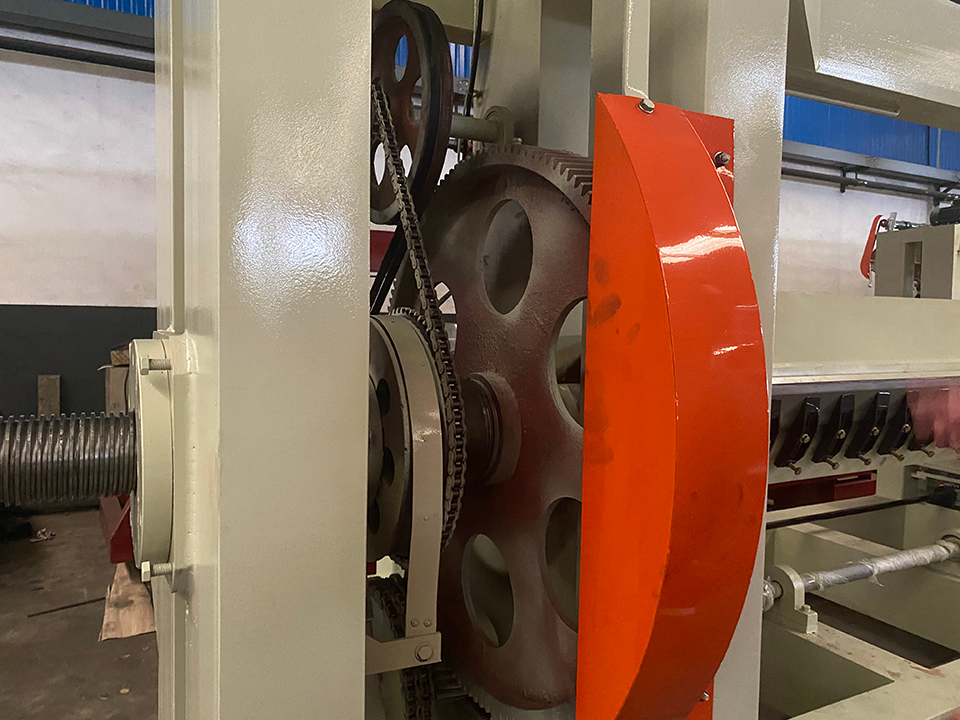

veneer peeling lathe



Matching machines





Log debarker/chipping debarker

This is a job before peeling veneer that finds the round for the wood and facilitates peeling veneer.
veneer debarking peeling lathe




Stacker

This machine saves labour and provides efficiency by using a vacuum system to stack
veneers neatly after they have been screened by a rotary cutter.
automatic veneer sracker

We can supply complete production line equipment, including rotary cutters, peelers, hot presses, dryers, etc.

If you have any needs, you can also contact us !


plywood making machine
Company Profile
plywood machinery
plywood machinery
Packing & Delivery
plywood production line
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
