veneer glue spreader

Pneumatic gluing machine is mainly used for glue coating of wood-based panels such as multi-layer boards,lamination boards and so on. Making rubber roller with natural rubber. Easy to operate, easy to adjust the amount of glue. No trace of glue, it is the preferred euipment for veneer.

Veneer glue spreaderveneer glue spreader


Can be customized !! (click)
Please contact us

Specification
Name and Model
4ft pneumatic glue spreader machine
8ft pneumatic glue spreader machine
Working width
1400mm
2600mm
Rubber Roller Diameter
415mm
Chromate Treatment Roller Diameter
295mm
Rotation speed of glue roller
0-70rpm
Rotation speed of Chromate Treatment Roller
0-17rpm
Feeding speed
0-90m/min
Main Motor Power
5.5kw
7.5kw
Feeding motor power
1.1kw
1.5kw
Overall Dimension
2400*3250*1815mm
3544*3250*1815mm
Weight
3000kg
4500kg
Product Description

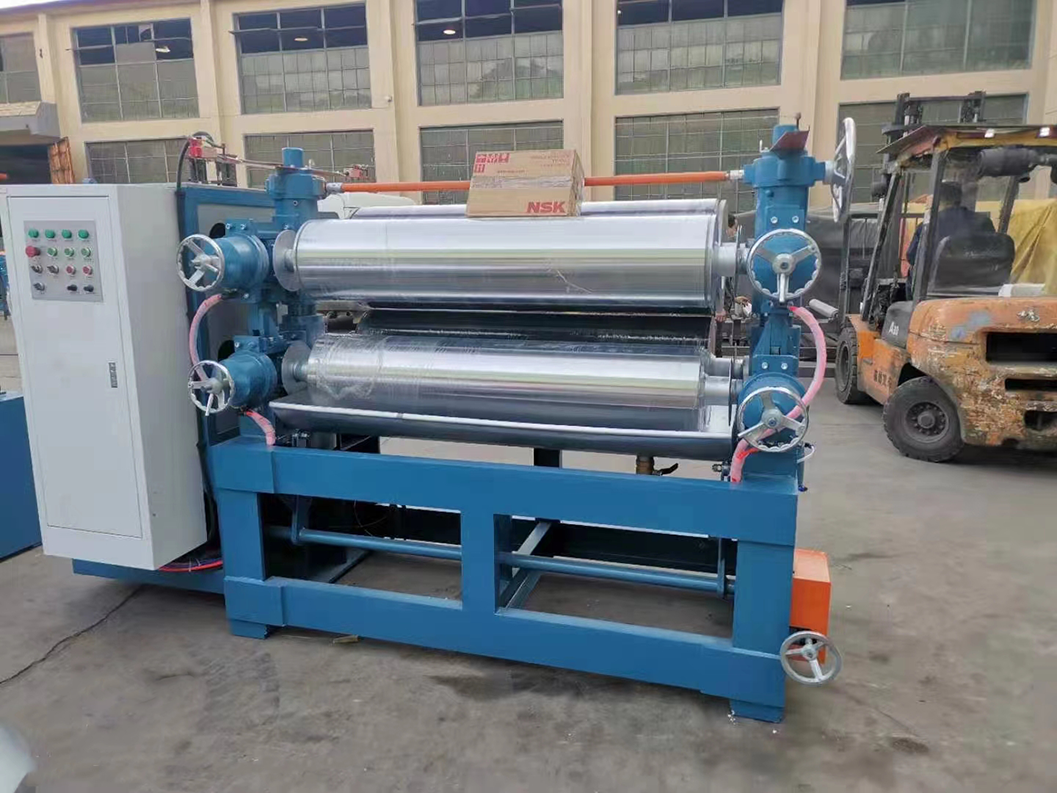

Heavy Duty 4ft 8ft Pneumatic Veneer Glue Spreader


The machine spreads the glue on the core veneers, multi-layer board, plywood, block board and so on. It has three rollers and four rollers.

The one with three roller is single-side glue coating machine. The glue spreader with four rollers is double-side coating machine.

The glue spreader is divided into 4ft, 5ft, 8ft and so on. It can be customized according to client’s requirement.



Features:

It have coating averagely, high productivity, save glue, save staff and save cost.
Increasing the utilization of glue and decreasing and minimize glue consumption.
Easy operation and easy maintenance.
Adjusting thickness with pneumatic system.

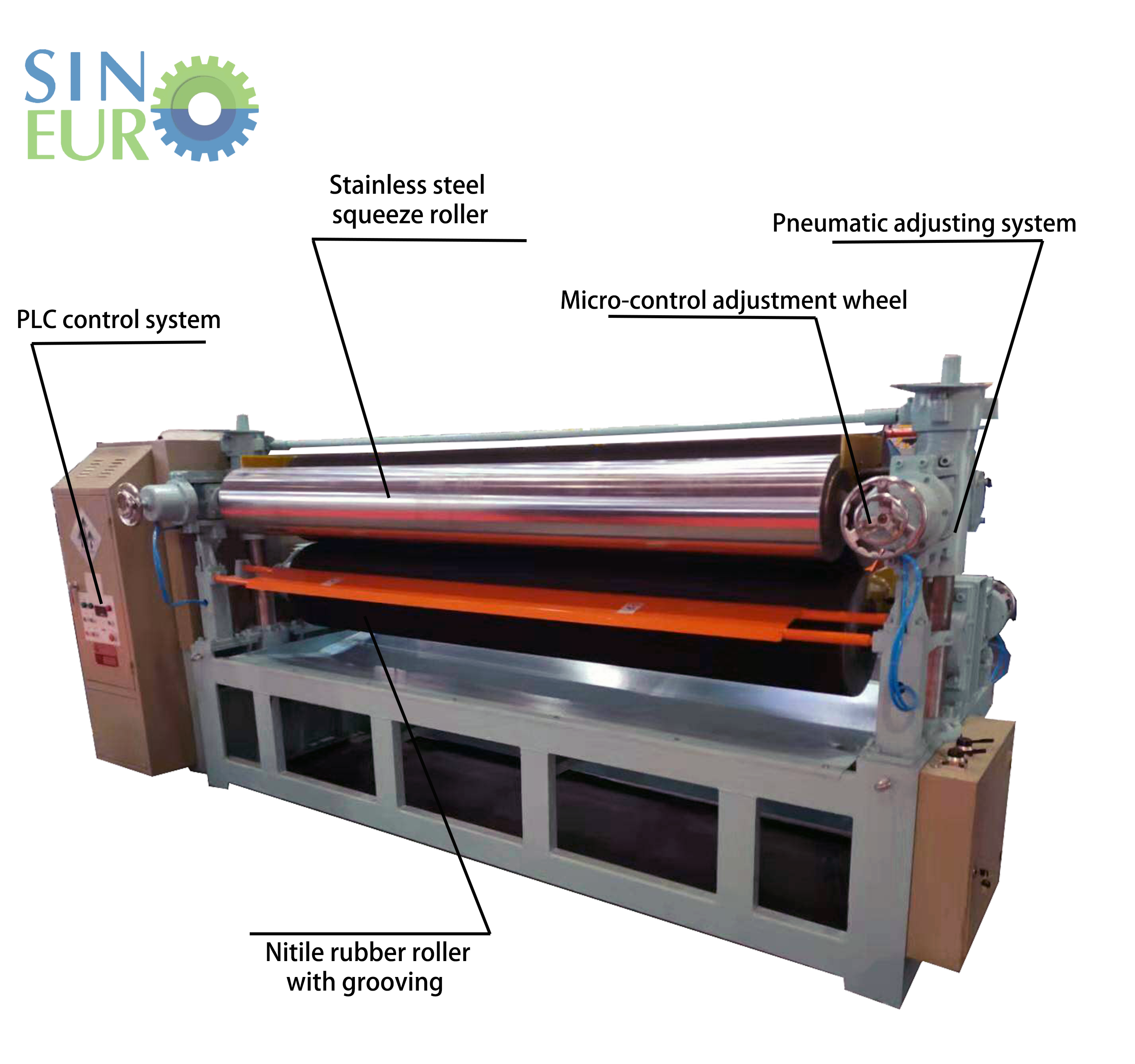

Machine details

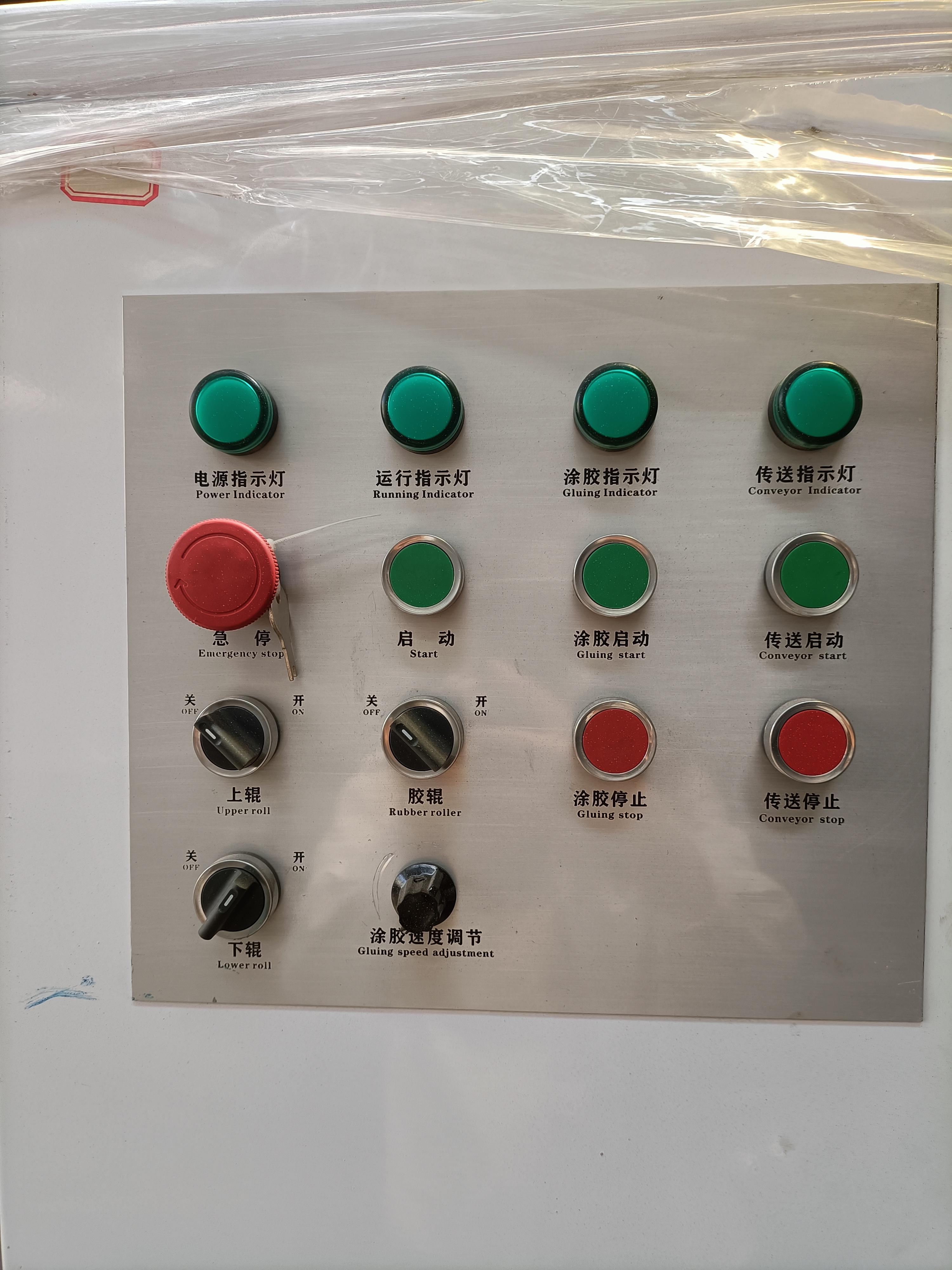

Easy to operate. The safety device is able to immediate stop the machine whenever the danger occured.

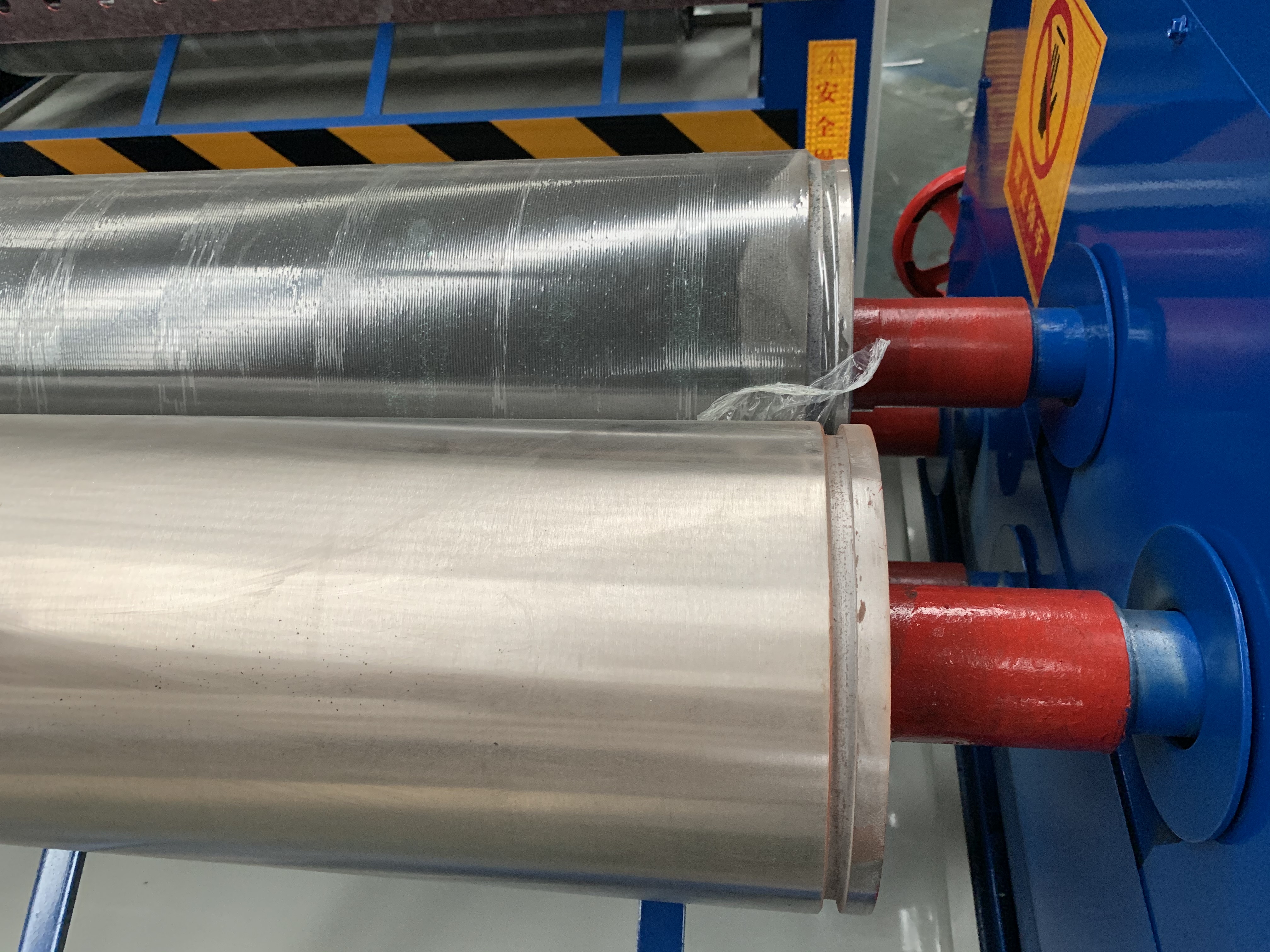

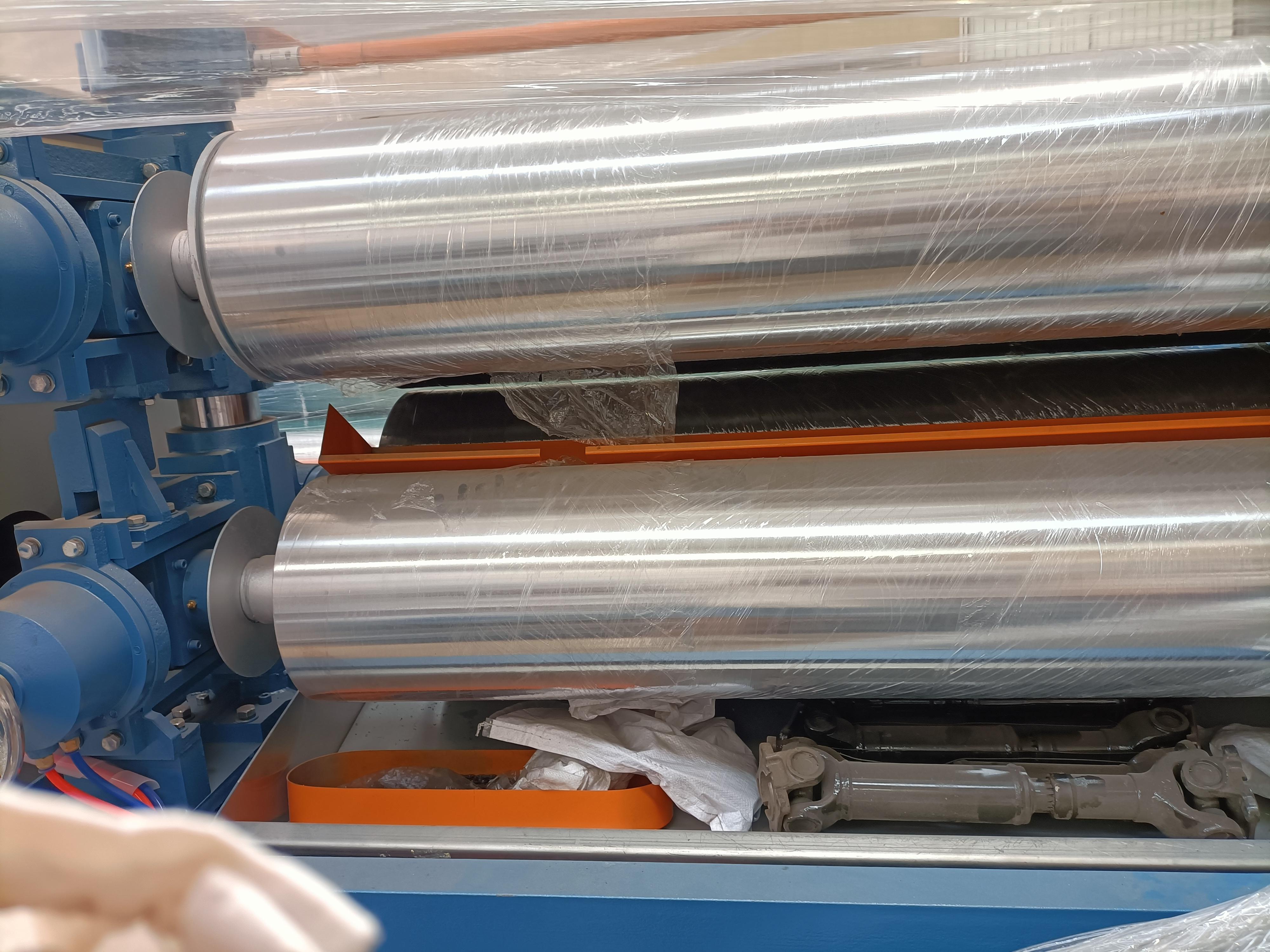

Rubber roller is made by the high quality natural rubber, the squeeze roller is chromate treatment seamless steel pipe,

the roller surface is covered by stainless steel, never has the rust because of glue corrosion.

Large rubber rollers for glue coating averagely, and high output, mostly used in large production plants.



We can supply complete production line equipment, including rotary cutters, peelers, hot presses, dryers, etc. If you have any needs, you can also contact us !


Company Profile
Why Choose Us
Pre-sale services:
1) Provide the free consultation of the equipment
2) Provide the standard device and the flow chart
3) According to the clients’ special requirement, offering the reasonable plan and free design to help to select the equipment.
4) Welcome to visit our factory

Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator.
After sale services:
1) 24 hours online service
2) Provide the VIDEO with Install and debug the equipment
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
