spindle veneer peeling machine

Spindle veneer peeling machine is one of important equipment for plywood production. It mainly produces about0.2-2.2mm nature decoration veneer (face veneer)for plywood surface decoration. It is suitable for big wood and diameter can be up to 1500mm. The machine can be customized according to client’s requirement.

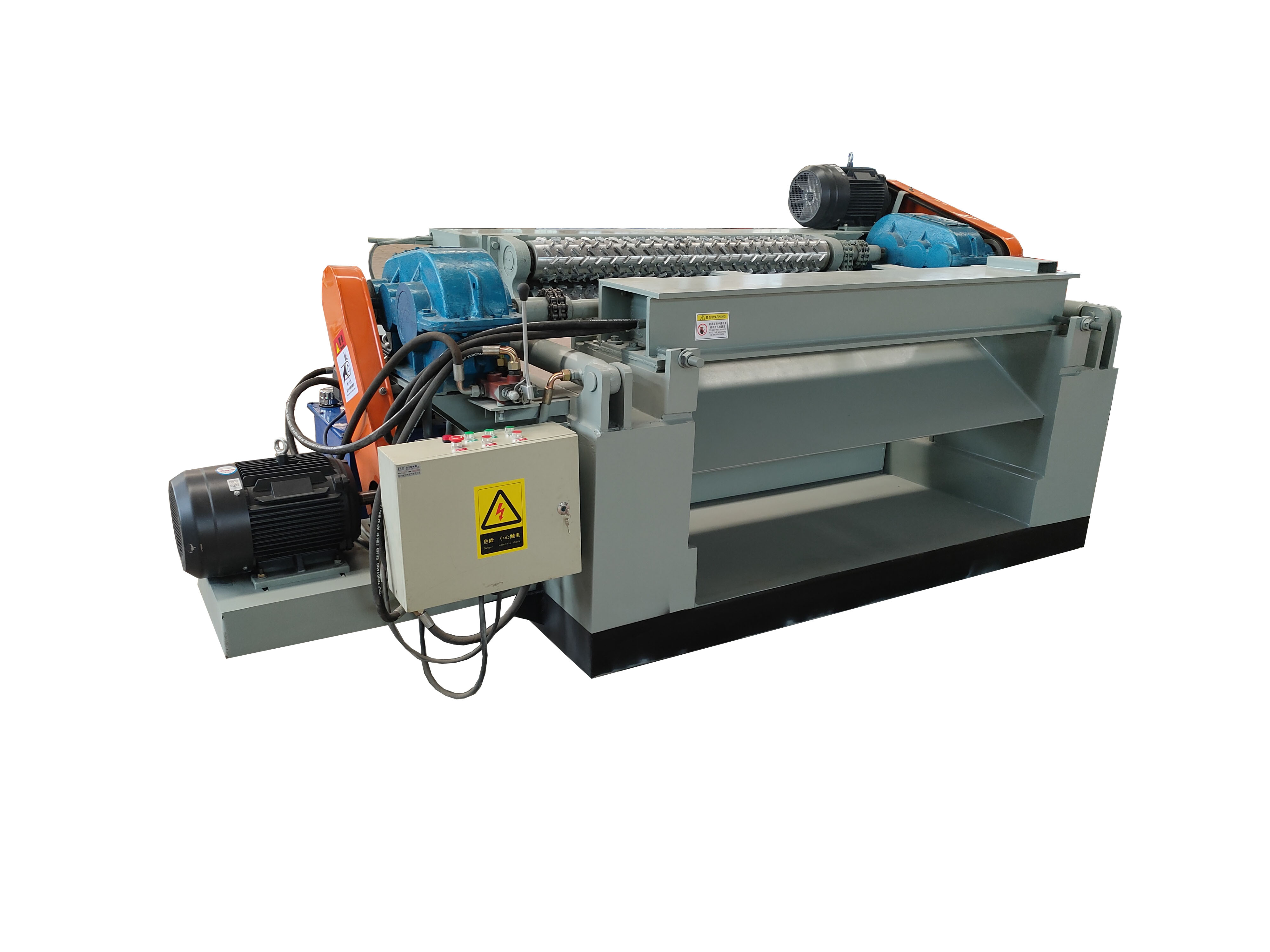

Spindle Veneer Peeling Machine
8ft veneer peeling machine for plywood production line
8ft veneer peeling machine for plywood production line

Specification
Name and Model
8ft vertical spindle venner peeling machine
8ft horizontal spindle veneer peeling machine
Max length of peeler log
2000-2600mm
2000-2600mm
Max peeling log diameter
1500mm
900mm
Remain wood core diameter
120mm
120mm
Peeling speed
0-80m/min
0-80m/min
Machine operation
remote controller & button on the machine
remote controller & button on the machine
Slicer veneer thickness
0.1mm-2.6mm
0.1mm-2.6mm
Capacity
Max 10 CBM face veneer/10hr a day (0.2mm face veneer)
Max 10 CBM face veneer/10hr a day (0.2mm face veneer)
Total motor power
22kw+4kw*2+1.5kw+1.1kw+0.75kw+1.1kw+1.1kw=35.55kw
22kw+4kw*2+1.5kw+1.1kw+0.75kw+1.1kw+1.1kw=35.55kw
Clamping chuck
double chuck clamping
double chuck clamping
Electronic parts brand
Schneider
Schneider
Total weight
8000KG
8000KG
Overall dimensions
6000mm*2300mm*2600mm
5500mm*3000mm*2600mm
Product Description
8ft face veneer peeling machine for plywood production line
8ft face veneer peeling machine for plywood production line

Automatic 8ft Spindle Veneer Peeling Lathe
8ft face veneer peeling machine for plywood production line
8ft face veneer peeling machine for plywood production line
Spindle veneer peeling lathe mainly produces about 0.2-2.2mm nature decoration face veneer for plywood surface decoration.
The machine can be customized according to client’s requirement.
Rotary cutting with high accuracy, quick speed, veneer surface smooth.

Touching screen control system.
You can set all kinds parameters in this system, and language showing in this controlling screen, can be translated into your country’s own language.



fave veneer rotary peeling machine



It is used to rotary cut the big diameter wood and wood diameter can be up to 1500mm.

Min. diameter of the wood core after peeling is 120mm, can max. help save wood log material.
fave veneer rotary peeling machine

Automatic lubrication system. Ensure machine running stable, so the using life of the machine is extended.

Matching machines





Log debarker/chipping debarker

This is a job before peeling veneer that finds the round for the wood and facilitates peeling veneer.
veneer wood lod debarking machine



Stacker

This machine saves labour and provides efficiency by using a vacuum system to stack veneers neatly
after they have been screened by a rotary cutter.
veneer stacker

We can supply complete production line equipment, including spindle veneer peeling lathe,

peelers, hot presses, dryers, etc. If you have any needs, you can also contact us !


full automatic plywood production line
Company Profile
sinoeuro plywood production line
sinoeuro plywood production line
Packing & Delivery
sinoeuro plywood production line
To better ensure the safety of wood spindle veneer peeling machine, professional, environmentally friendly, convenient and efficient packaging services will be provided.
