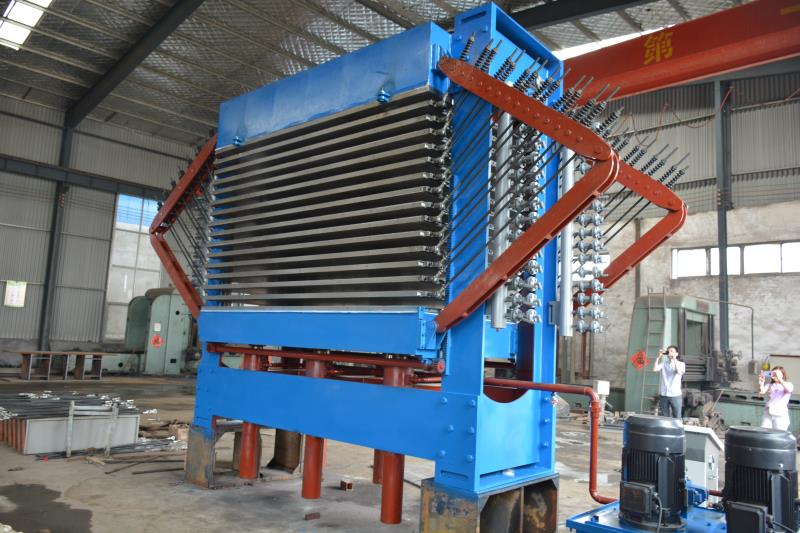

Plywood Veneer Drying Machine Heavy Duty Breathing Veneer Dryer Machine
Can be customized !! (click)
Please contact us
Specification
|
Name and Model
|
15 Layers 4*8FT Solid Hot Platen Press Dryer
|
12 Layers 4*8FT Solid Hot Platen Press Dryer
|
|
Normal pressure
|
60Tons
|
60Tons
|
|
Platen Material
|
Q235 with small groove 1.5mm depth
|
Q235 with small groove 1.5mm depth
|
|
Size of Hot platen
|
2800*1370* 42mm 2 in 2 out with groove (Diamond groove Diamond spacing40*40mm, depth:1mm, width:1.5mm)
|
2800*1370* 42mm 2 in 2 out with groove (Diamond groove Diamond spacing40*40mm, depth:1mm, width:1.5mm)
|
|
Oil Cylinders
|
ø100*1050mm*4pcs
|
ø100*840mm*4pcs
|
|
Total power
|
15 KW, 380V 50Hz
|
15 KW, 380V 50Hz
|
|
Layers
|
15 openings
|
12 openings
|
|
Spacing of layer
|
70mm
|
70 mm
|
|
Hot platen
|
16 pcs
|
13 pcs
|
|
Colum width
|
350 mm
|
350 mm
|
|
Upper and bottom beam
|
400mm;400mm
|
400mm;400mm
|
|
Walking beam (middle beam)
|
300mm(Detachable frame)
|
300mm(Detachable frame)
|
|
Main frame steel thickness
|
25mm
|
25mm
|
|
Closing time
|
about 15s
|
about 12s
|
|
Control cabinet
|
Vertical electric control cabinet , PLC control + touch screen
|
Vertical electric control cabinet , PLC control + touch screen
|
|
Total weight
|
About 28 Tons
|
About 23.5 Tons
|
|
Overall dimension
|
3550*1370*3300mm
|
3550*1370*3000mm
|
Product Description
Veneer dryer machine is mainly used to dry the core veneer to solve high moisture content problem after peeling.
The machine can dry veneers of various thickness and moisture contents. Any wood spices can be dried in this machine.
The core veneer after drying will be with high flatness and sufficient shrinkage.
There is simultaneous opening and closing system and dry the veneer uniformly.
With special processing, hot plate has a favorable tide exhaust groove on both sides, which makes veneer exhaust moisture fast and efficiently.
Heavy duty and welded steel frame, international standard hydraulic system and electrical components, long time using.
For more product
Square tube veneer dryer machine
It is suitable for drying the core veneer to solve high moisture content problemafter peeling. Low cost, low investment, installed dimension is small.
The working layers quantity can be designed according to client’s requirement.
Roller veneer dryer
Its length is large, so occupies large area.
Continuous veneer drying equipment, high efficiency and large capacity.
The working layers quantity can be designed according to clients’ requirement.
We can supply complete production line equipment, including rotary cutters, peelers, hot presses, dryers, etc. If you have any needs, you can also contact us !
