plywood glue spreader

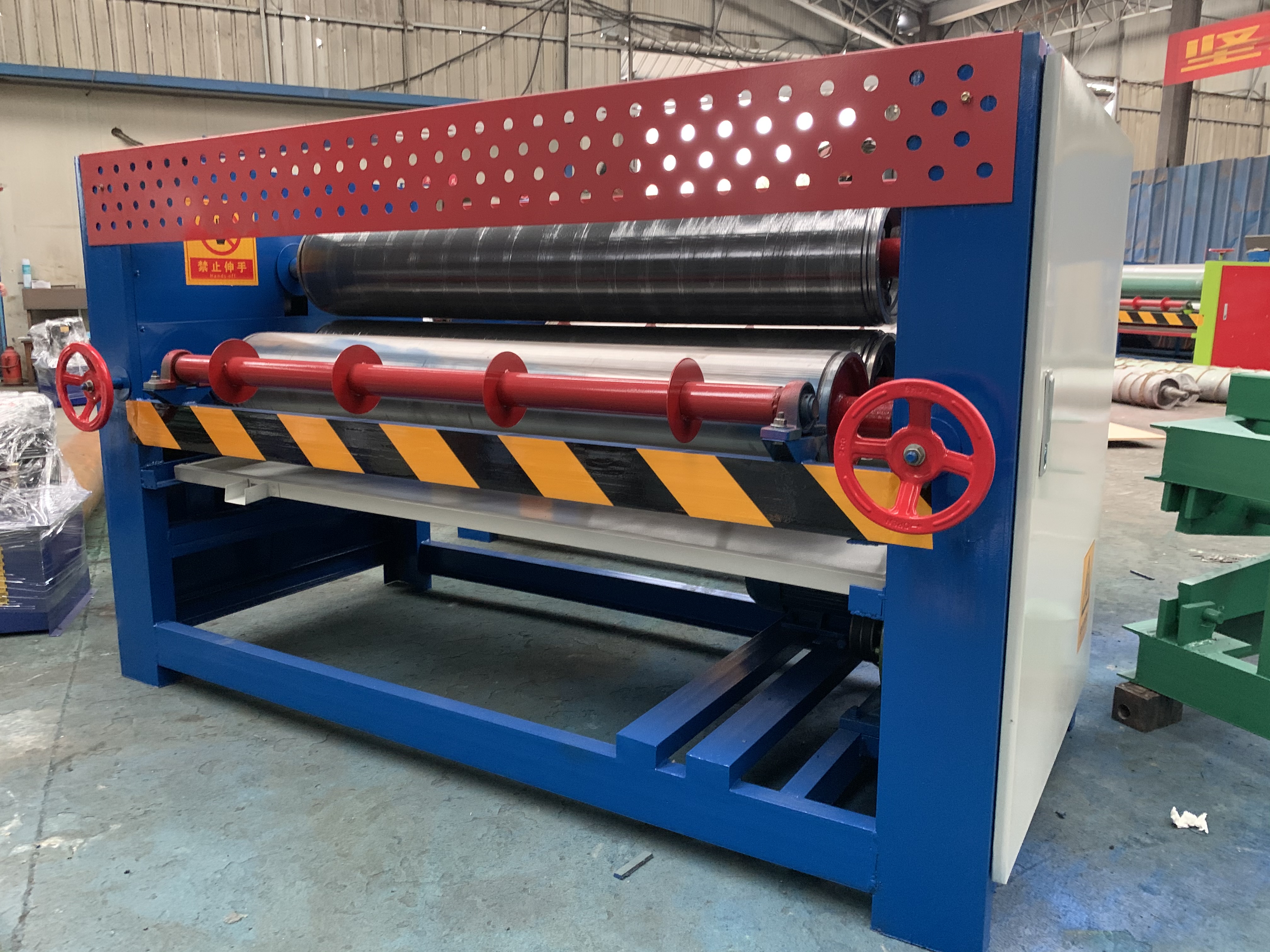

The glue spreader machine spreads the glue on the core veneers, multi-layer board, plywood, block board and so on. It has three rollers and four rollers. The one with three rollers is single-side glue coating machine. The glue spreader with four rollers is double-side coating machine.

The glue spreader is divided into 4ft, 5ft, 8ft, 9ft and so on. It can be customized according client’s requirement.It is produced with reasonable design, glue coating averagely, saving cost, easy operation and low price.


Can be customized !! (click)
Please contact us

Specification
Name and Model
245mm glue spreader machine
415mm glue spreader machine
Working width
1400mm
1400mm
Rubber Roller Diameter
245mm
415mm
Chromate Treatment Roller Diameter
210mm
210mm
Rotation speed of glue roller
0-70rpm
0-70rpm
Rotation speed of Chromate Treatment Roller
0-17rpm
0-17rpm
Main Motor Power
3kw
4kw
Number of Roller
4 rollers double side
4 rollers double side
Overall Dimension
2200*1200*1400mm
1600*1400*1400mm
Weight
1000kg
1500kg
Product Description
veneer glue spreader

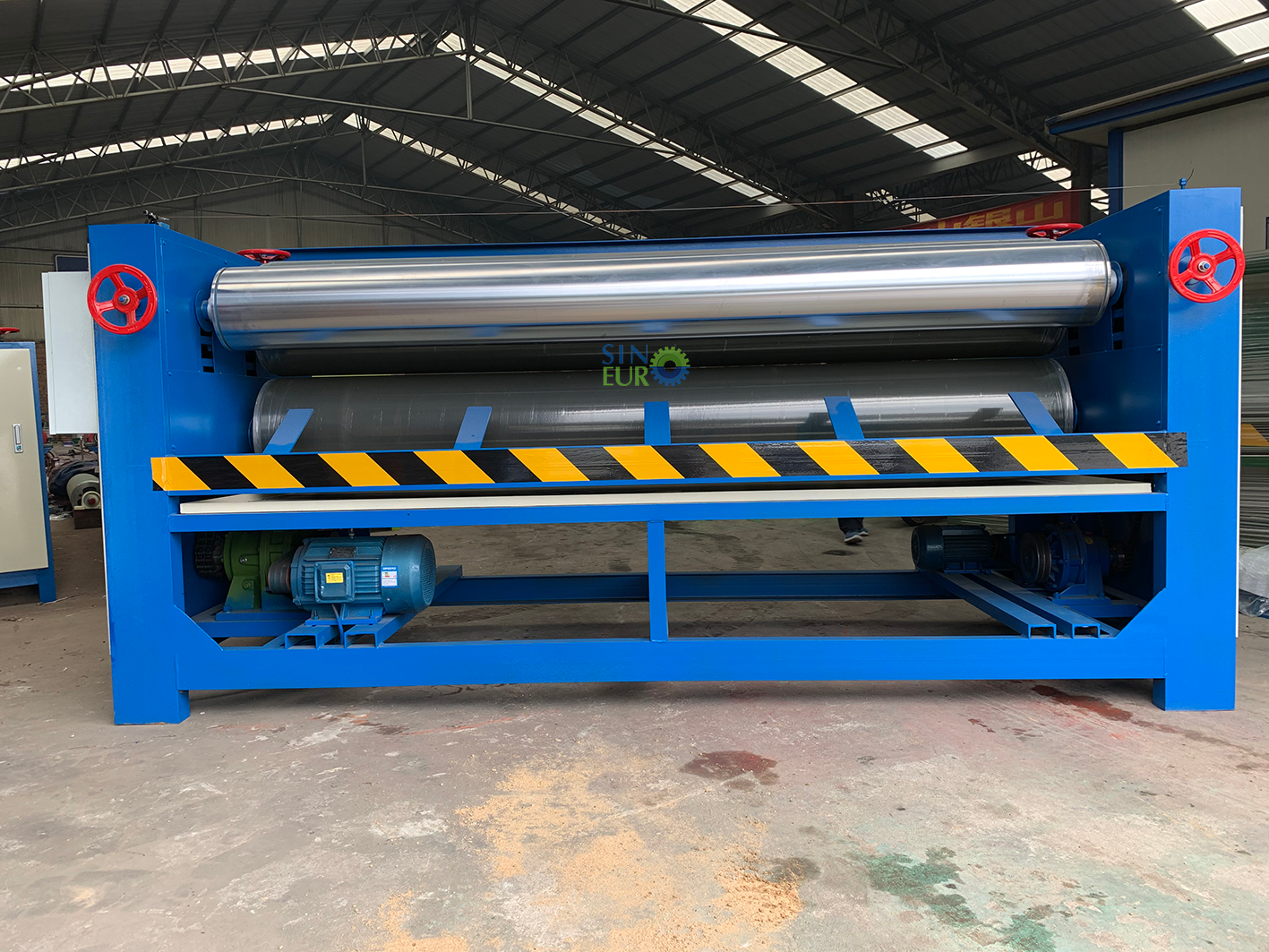

Heavy Duty 4ft 8ft Plywood Glue Spreader


plywood glue spreader price

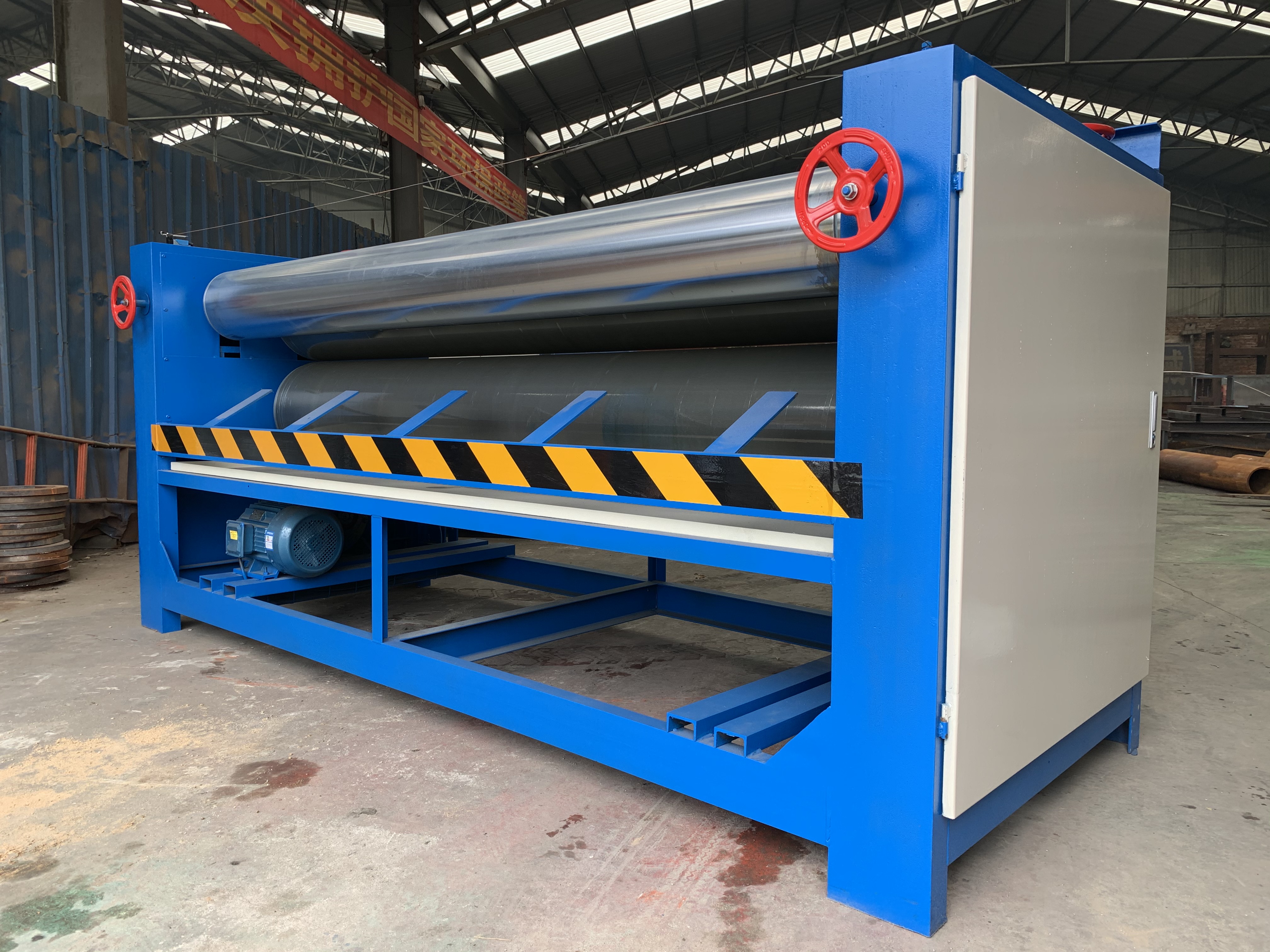

The machine spreads the glue on the core veneers, multi-layer board, plywood, block board and so on. It has three rollers and four rollers.

The glue spreader is divided into 4ft, 5ft, 8ft and so on. It can be customized according to client’s requirement.


plywood glue spreader for sale

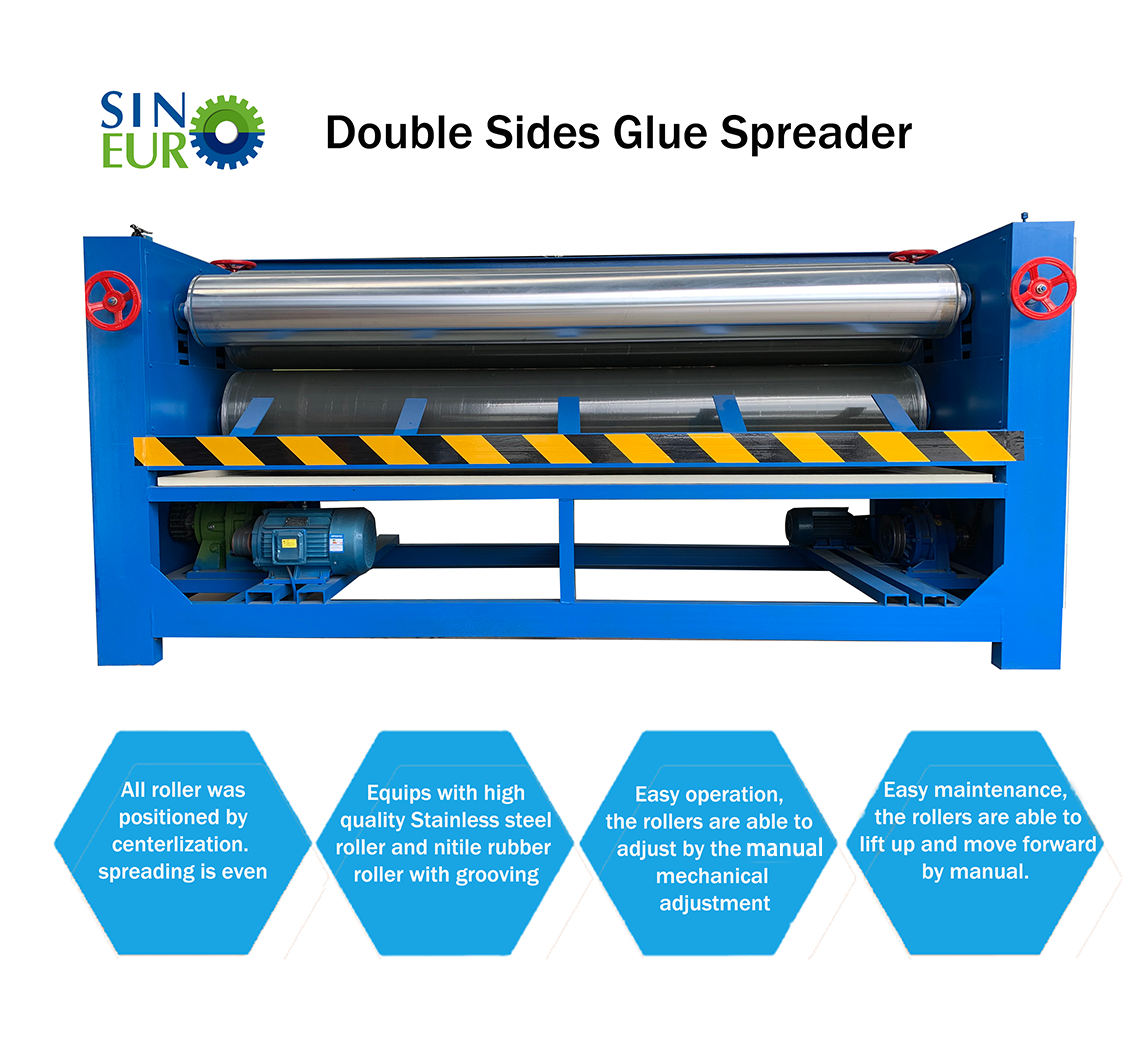

Features:

It have coating averagely, high productivity, save glue, save staff and save cost.
Increasing the utilization of glue and decreasing and minimize glue consumption.
Easy operation and easy maintenance.
Adjusting thickness .


plywood glue spreader

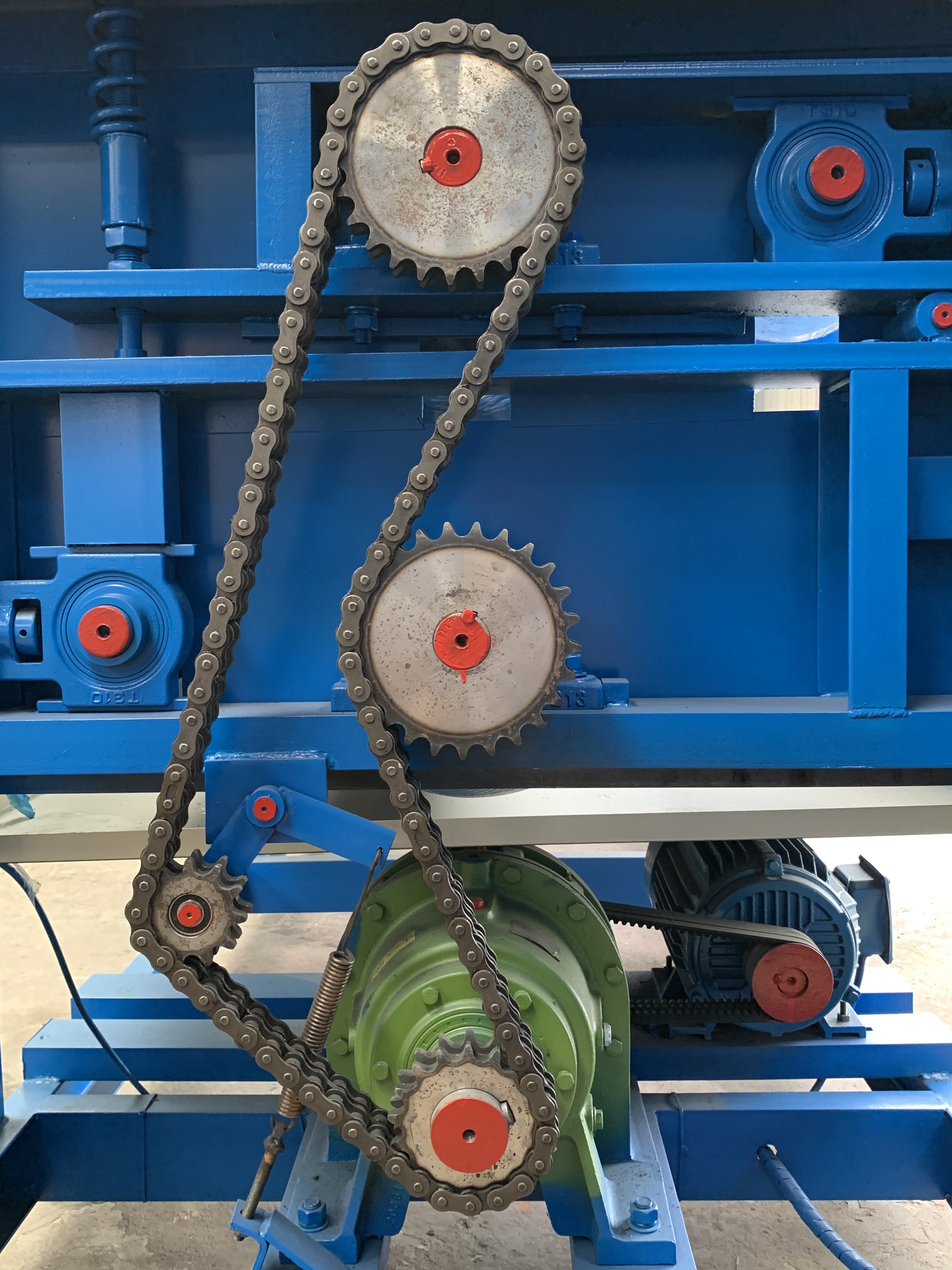

The driving method is gear and chain. Durable and safety.

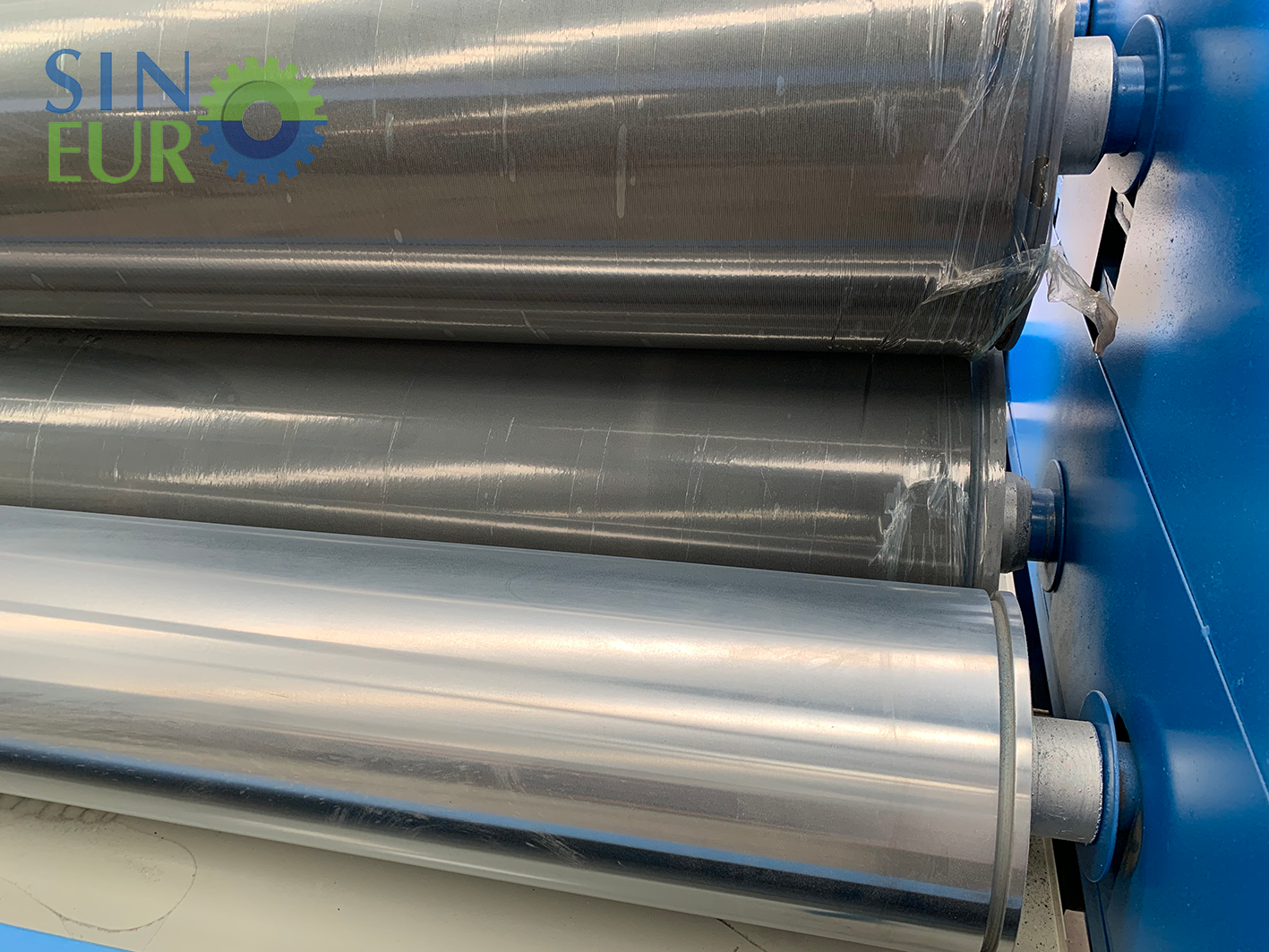

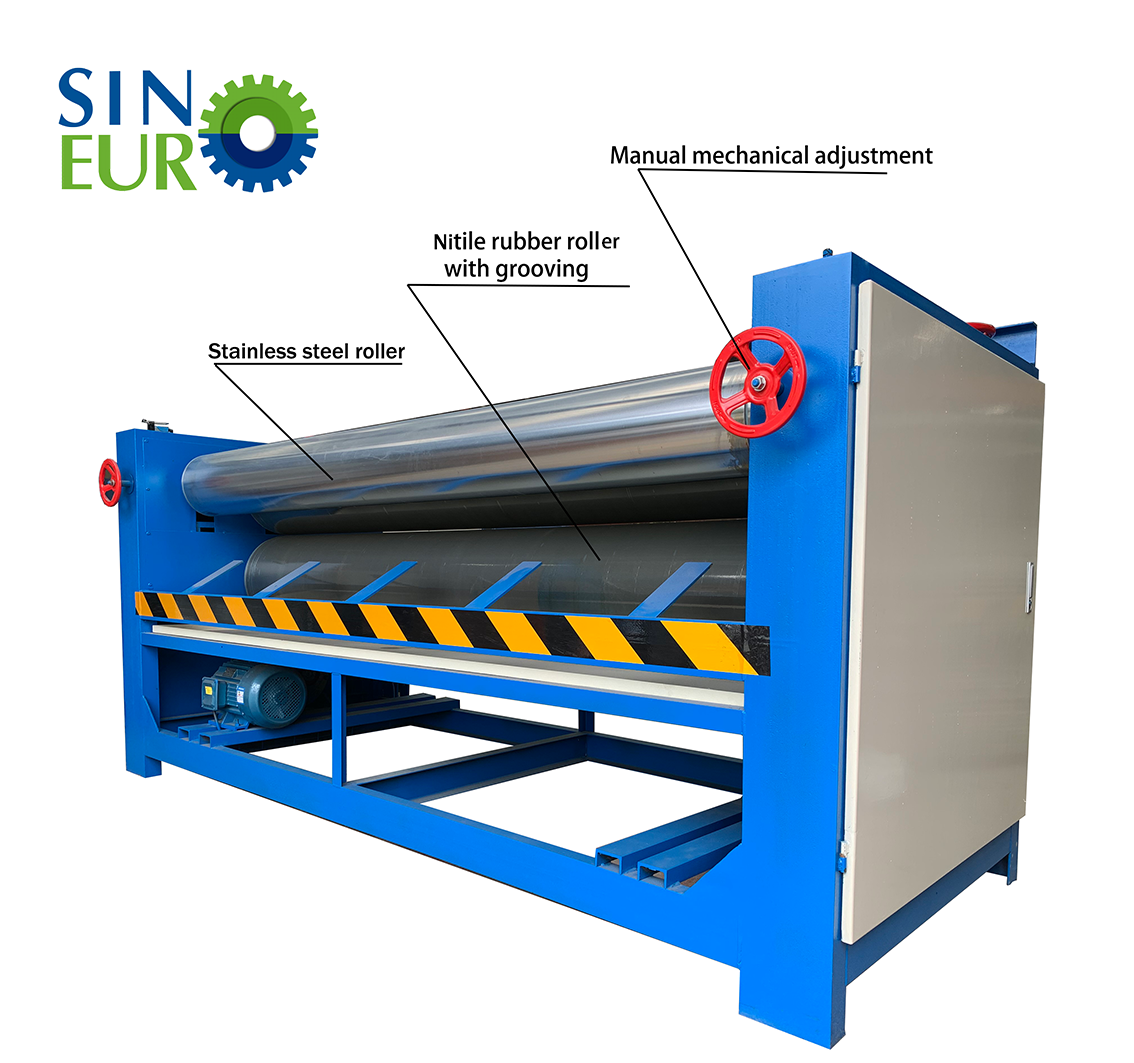

Rubber roller is made by the high quality natural rubber, the squeeze roller is chromate treatment seamless steel pipe,
the roller surface is covered by stainless steel, never has the rust because of glue corrosion.

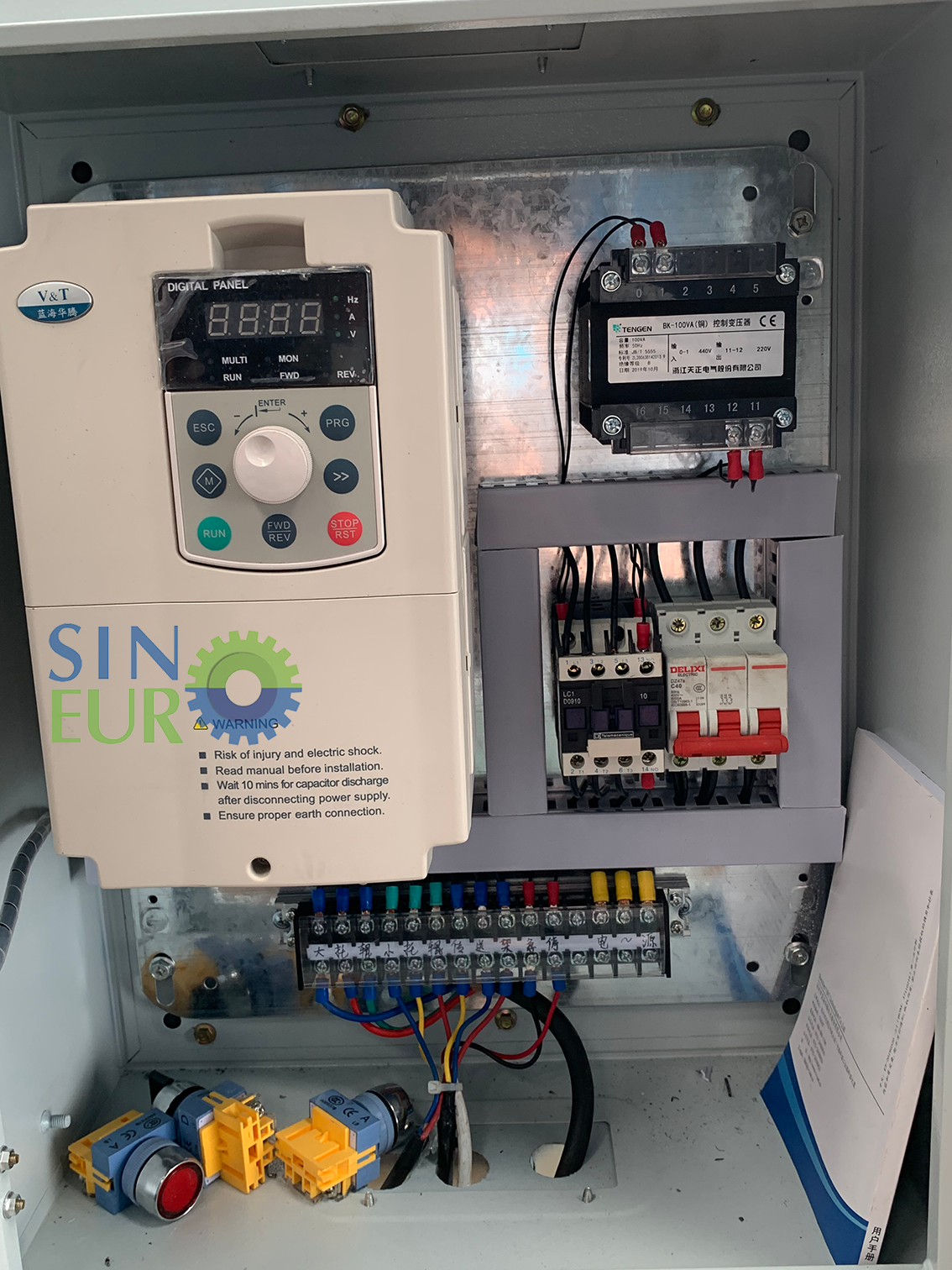

Electronic control system. Neatly wired for easy post-inspection and easy operation.

We can supply complete production line equipment, including rotary cutters, peelers, hot presses, dryers, etc. If you have any needs, you can also contact us !

Company Profile
Why Choose Us
Pre-sale services:
1) Provide the free consultation of the equipment
2) Provide the standard device and the flow chart
3) According to the clients’ special requirement, offering the reasonable plan and free design to help to select the equipment.
4) Welcome to visit our factory


Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator.

After sale services:
1) 24 hours online service
2) Provide the VIDEO with Install and debug the equipment
Packing & Delivery
To better ensure the safety of plywood glue spreader, professional, environmentally friendly, convenient and efficient packaging services will be provided.
