Specification
|
Name and Model
|
4ft log debarker machine
|
8ft log debarker machine with chipper
|
|
Max. length of peeler log
|
1400mm
|
2600mm
|
|
Max. diameter of peeler log
|
Φ80-Φ600mm
|
Φ80-Φ800mm (Log drop diameter 650mm)
|
|
Blade size
|
1500*180*16mm
|
2750*180*16mm
|
|
Linear speed of host machine
|
70m/min
|
70m/min
|
|
Diameter of double roller
|
180mm
|
180mm
|
|
Diameter of single roller
|
150mm
|
150mm
|
|
Power of double roller
|
11KW
|
11KW*2
|
|
Power of single roller
|
11KW
|
11KW*2
|
|
Power of hydraulic station
|
5.5KW
|
7.5KW
|
|
Power of assist debarking
|
/
|
2.2KW
|
|
Power of waste chipper
|
/
|
11KW*2
|
|
Total power
|
27.5KW
|
75.7KW
|
|
Reducer
|
350 gear type reducer
|
350 gear type reducer
|
|
Total weight
|
4000KG
|
9000KG
|
|
Overall dimensions
|
3800*2200*1400mm
|
5200*2200*1800mm
|
Product Description

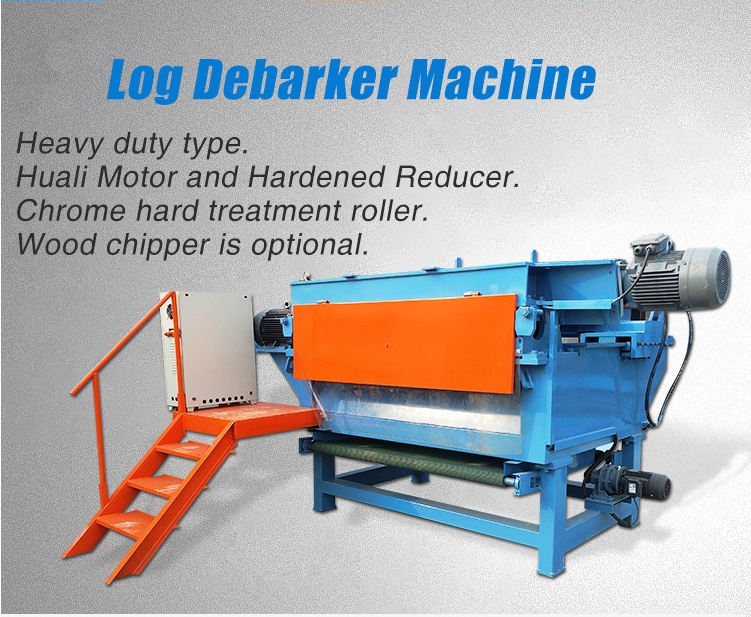

Automatic Log Debarking and Rounding Machine for Plywood
Feature: 1. The double roller comes forward and backward. It is convenient for wood unloading and wood unloading,
which can improve the speed of bark removing work.
2. Adopting hydraulic feeding system, the pressure can be adjusted to suit different density of wood.
3. The machine’s working width and opening stroke can be customized according to client’s requirement.
4. Reasonable machine design, machine runs stably, easy operation.

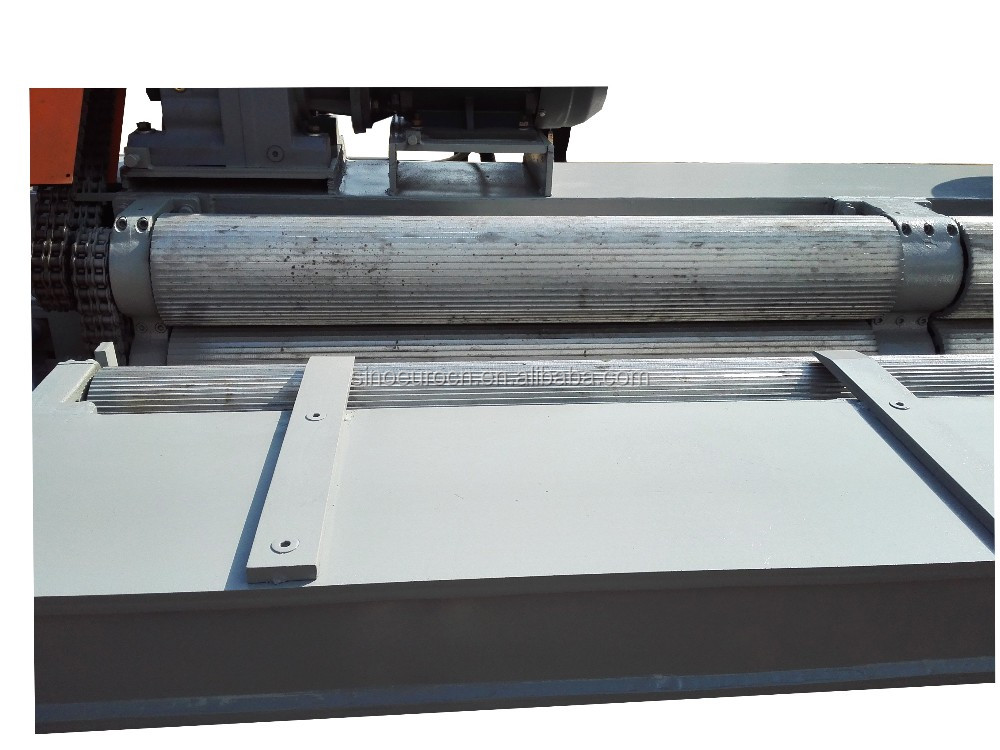

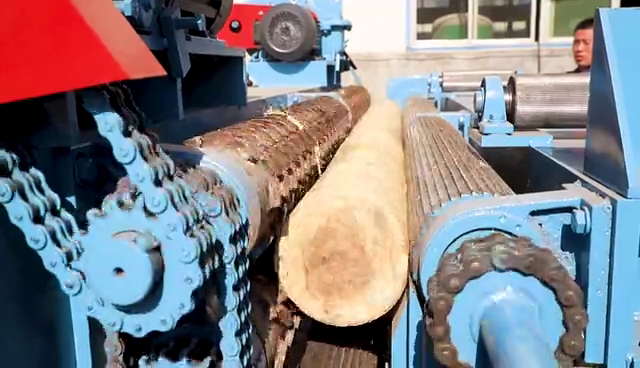

5. High production efficiency. Enlarged double roller and single roller. Double power improve its peeling speed, both for the hard wood and soft wood.
Log Debarker machine is divided into 4ft normal model debarking machine, 4ft heavy duty updated debarking machine and hydraulic debarking machine.

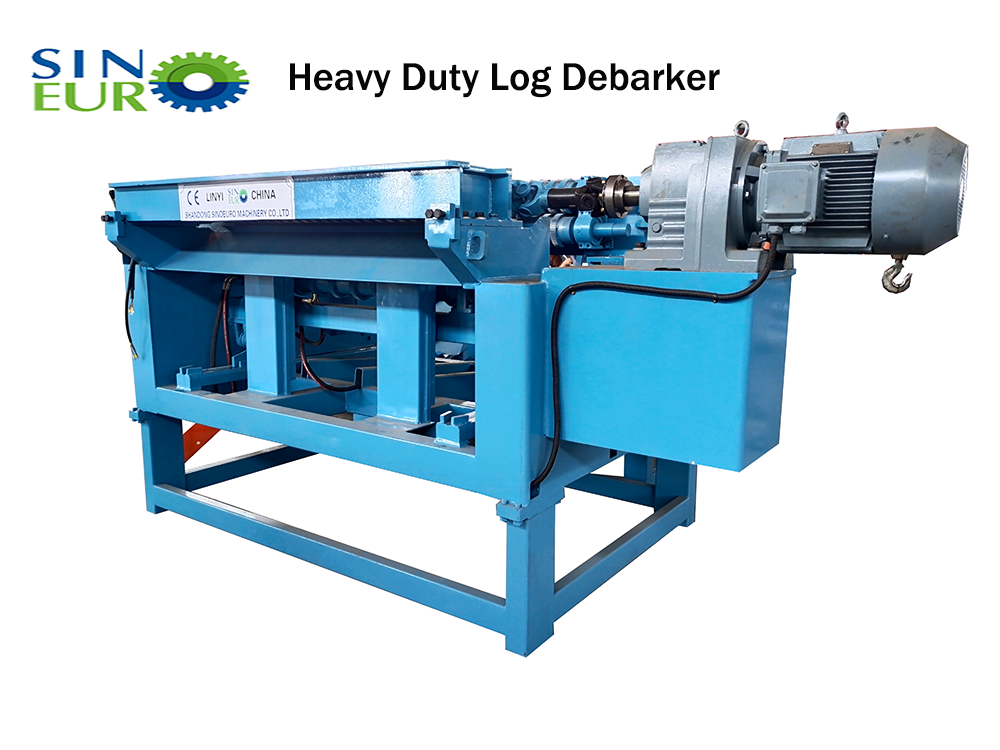

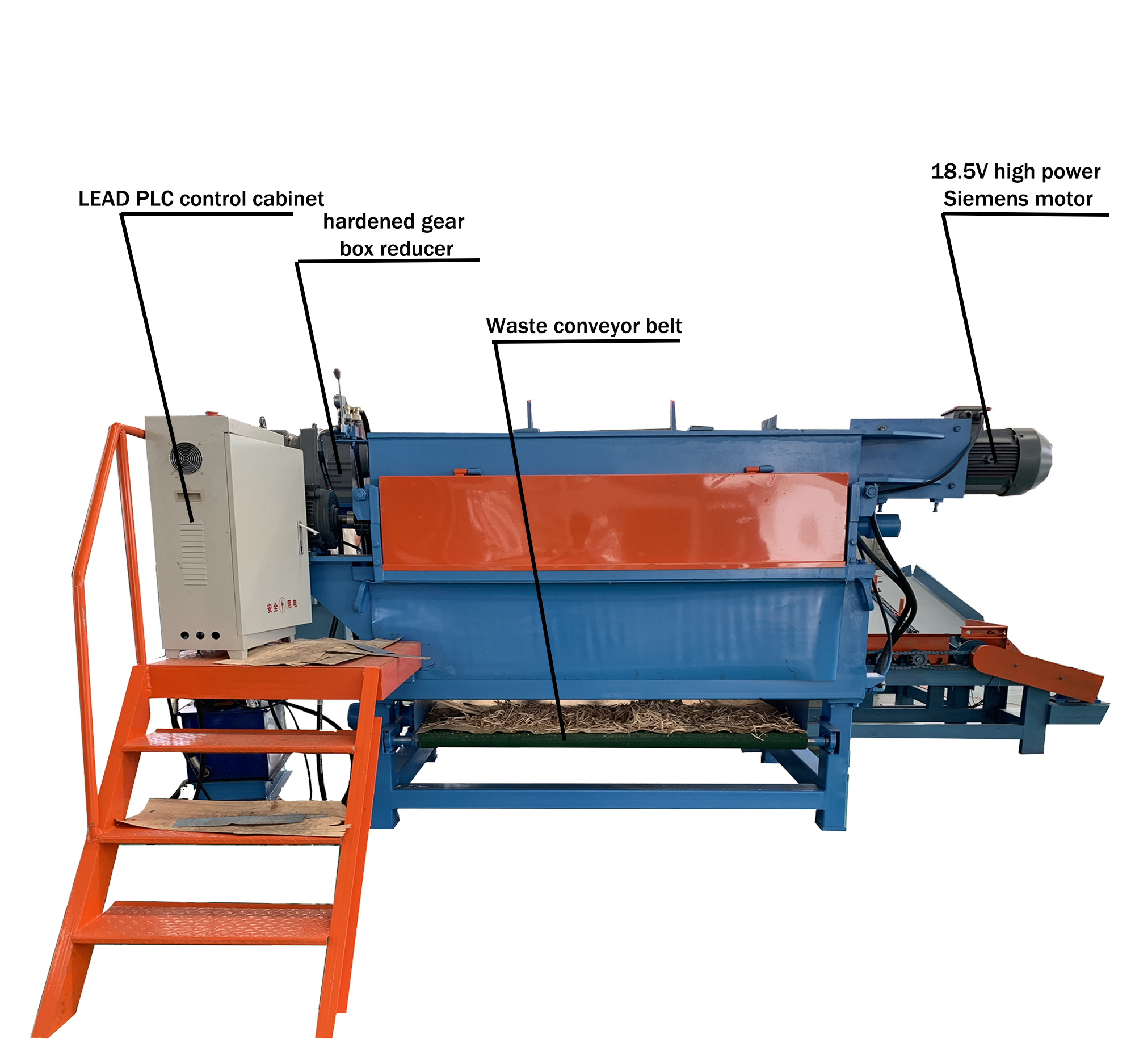

Heavy duty updated debarking machine is updated based on the normal model debarking machine,
the whole machine structure is welded by the steel and the structure design is more stable and reasonable; Hydraulic station is equipped with oil cooler,
avoid the sealing of cylinder damage, and this high quality hydraulic station can ensure this debarking machine 24 hours’ working without any stop.
We can supply you with different debarking machine depending on the wood species and capacity.
In addition to this, the machine can also be equipped with a crushing function, so that it can be used for waste purposes and the raw material can be used efficiently.
1. After the bark peeling could protect peeling knife in veneer peeling step, improve veneer grade
2. Adopts rotary cutting principle of non-chuck rotary lathe
3. Hydraulic pressure drive into the constructions, can quickly and effectively remove bark and complete log the round work
4. One debarker machine can supply with two rotary lathe, save about five or six people
5. Hydraulic feeding, can debarking and roundup small size raw log
2. Adopts rotary cutting principle of non-chuck rotary lathe
3. Hydraulic pressure drive into the constructions, can quickly and effectively remove bark and complete log the round work
4. One debarker machine can supply with two rotary lathe, save about five or six people
5. Hydraulic feeding, can debarking and roundup small size raw log
Matching machines

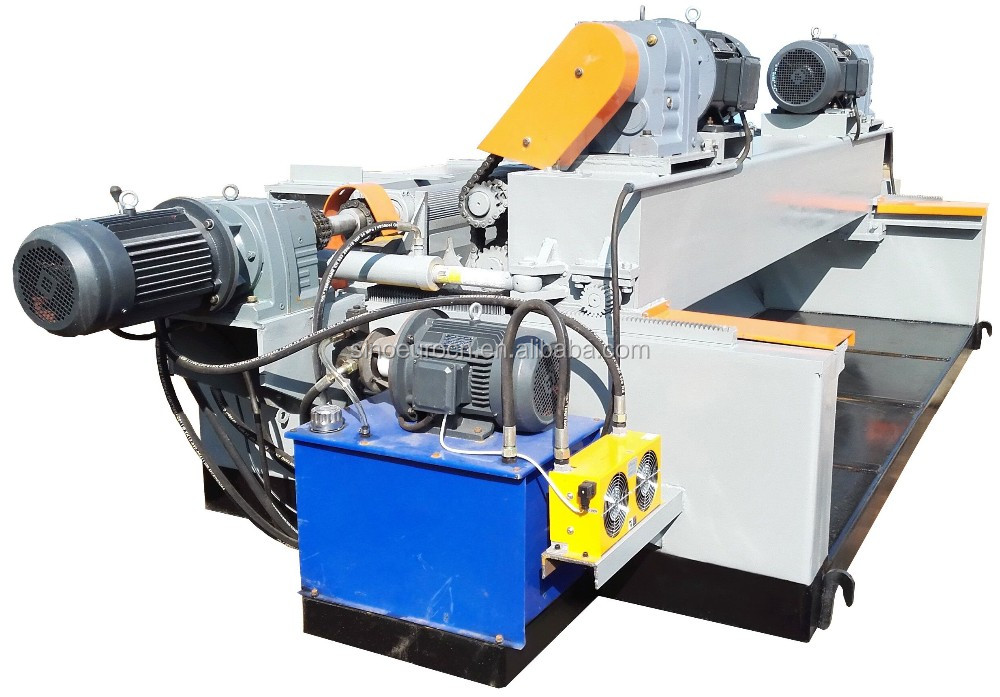

Veneer peeling machine
It is main equipment of core veneer production and mainly used to rotary peel the eucalyptus, poplar, birch, rubber and other fast-growing wood.
Stacker
This machine saves labour and provides efficiency by using a vacuum system to stack veneers neatly after they have been screened by a rotary cutter.
Company Profile
Our Services
Pre-sale service
1. Provide the free consultation of equipment
2. Provide the standard device and the flow chart
3. According to the clients’ special requirement, offering the reasonable plan and free design to help to select the equipment .
4. Welcome to visit our factory
1. Provide the free consultation of equipment
2. Provide the standard device and the flow chart
3. According to the clients’ special requirement, offering the reasonable plan and free design to help to select the equipment .
4. Welcome to visit our factory
Service during the sales
1. Inspect the machine before leaving the factory
1. Inspect the machine before leaving the factory
2. Oversea install and debug the equipment
3. Train the first-line operatorAfter sales service
1. 24 hours online service
3. Train the first-line operatorAfter sales service
1. 24 hours online service
2. Provide the VIDEO with install and debug the equipment
3. Provide technical exchanging
4. Engineers be able to go abroad for service
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

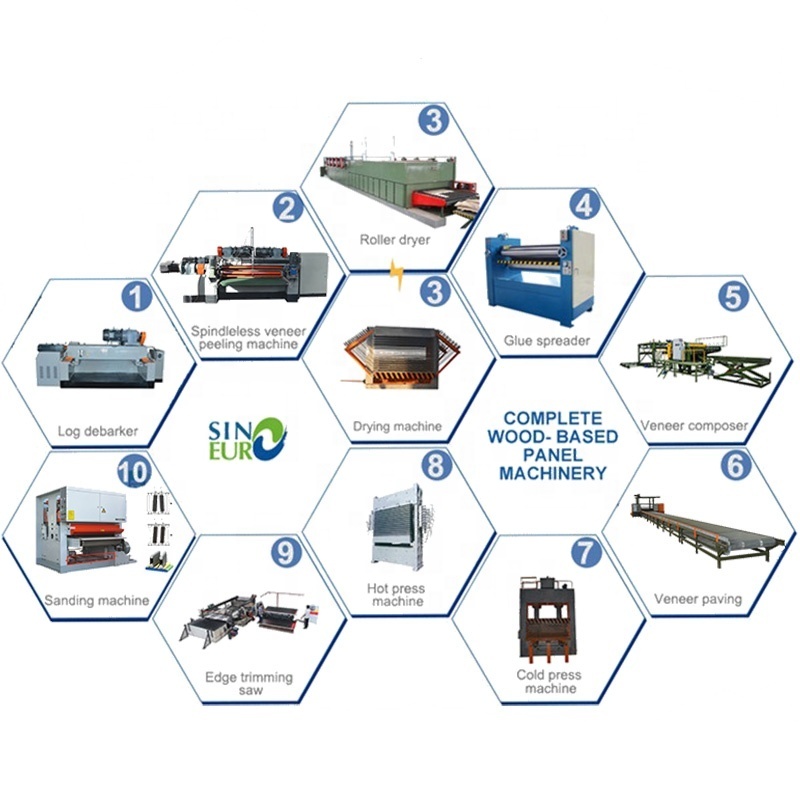

We can supply complete production line equipment, including rotary cutters, peelers, hot presses, dryers, etc. If you have any needs, you can also contact us !
