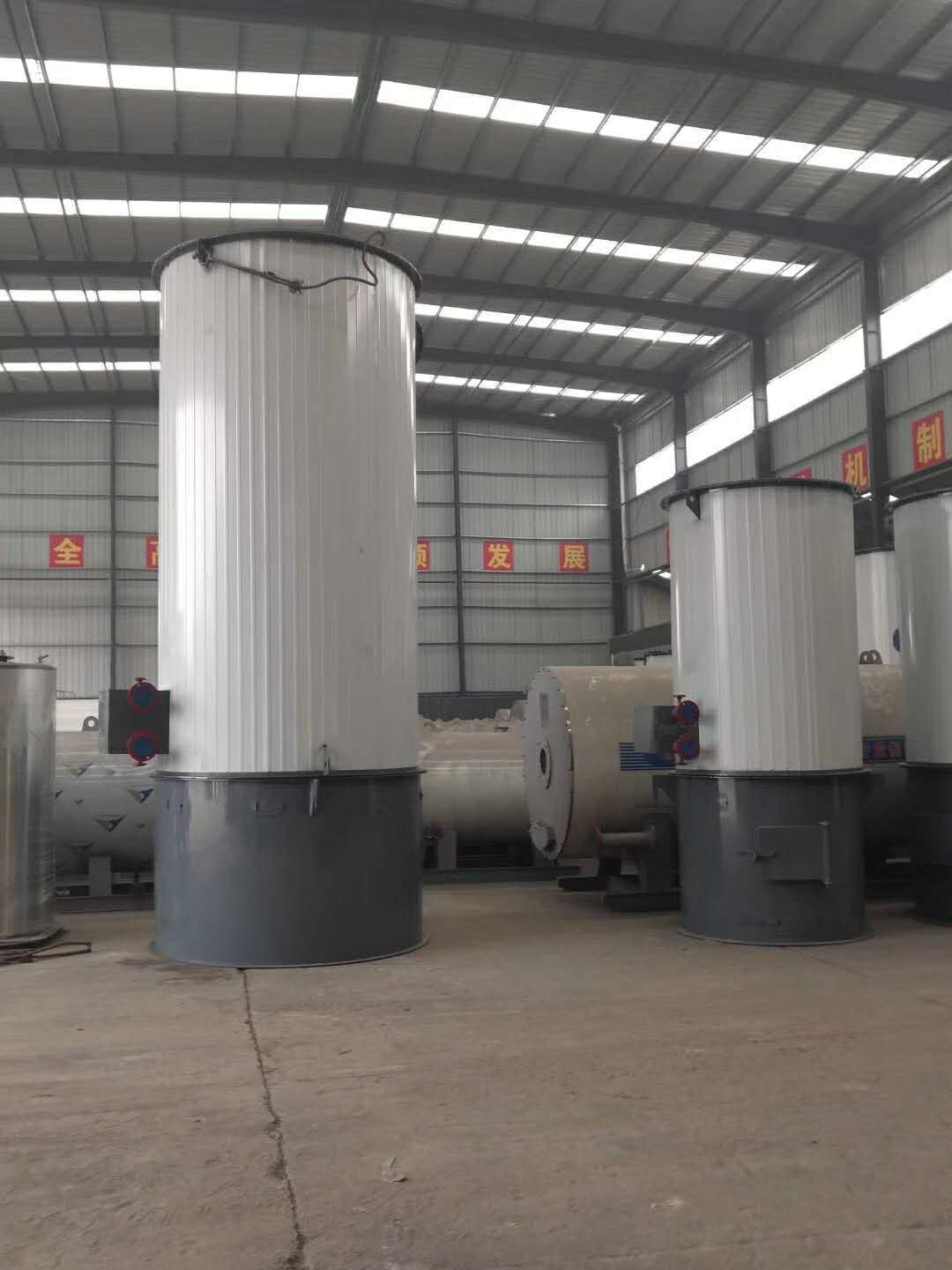

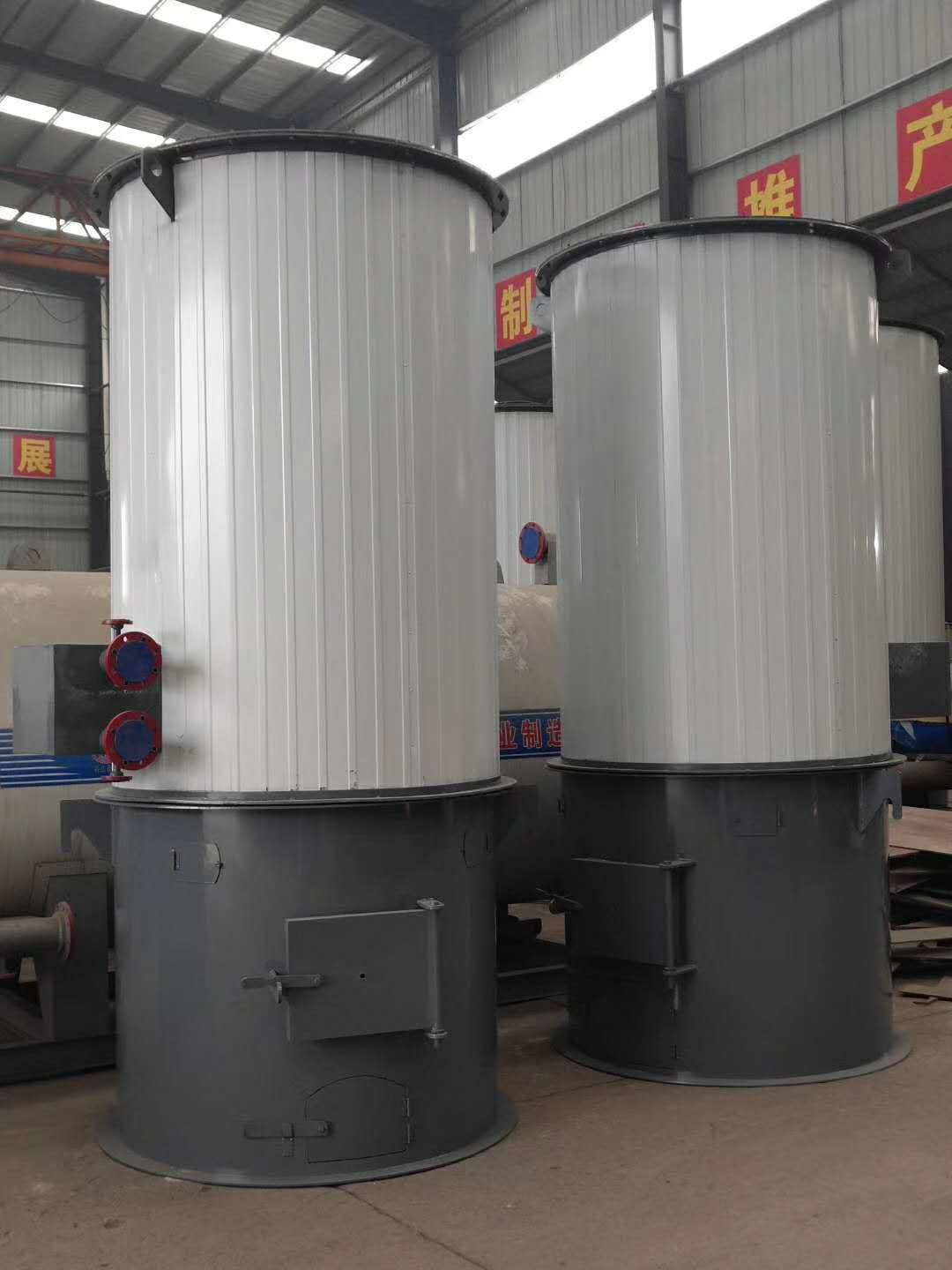

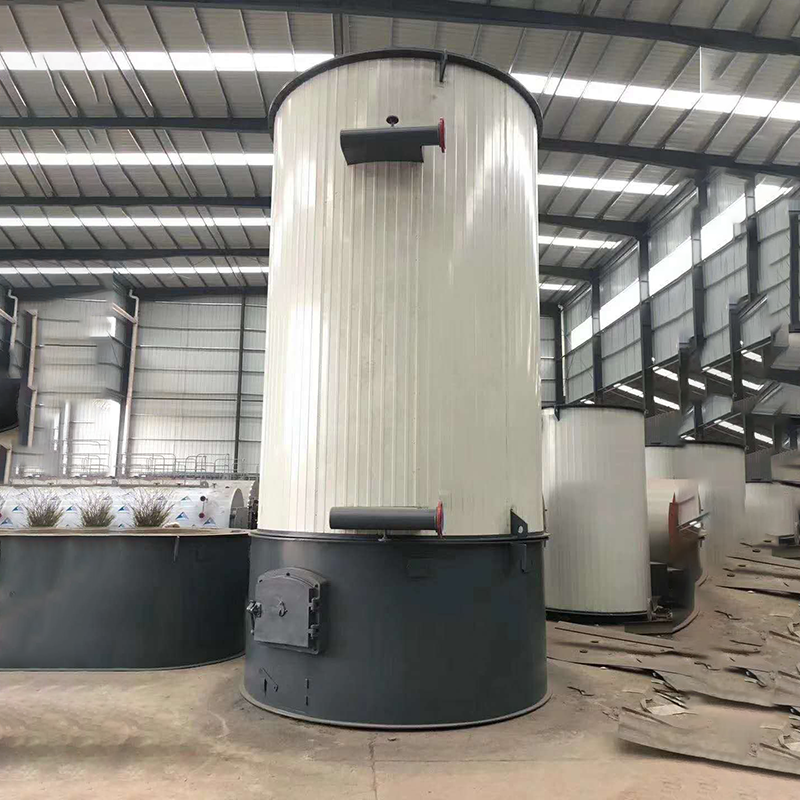

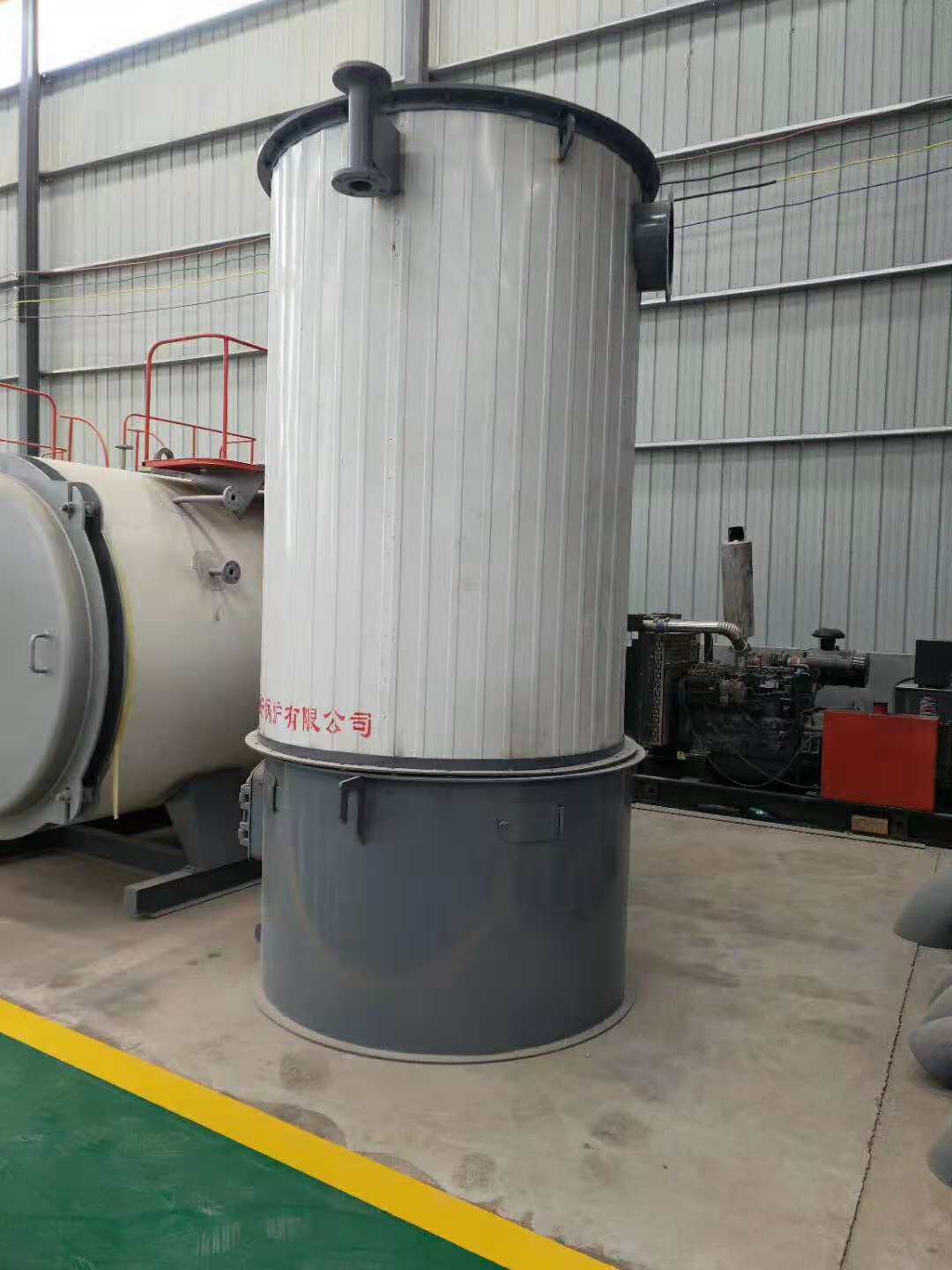

Industrial thermal oil boiler

–

Can be customized !! (click)

Please contact us

Specification

Name and Model	TOB-700	TOB-1400	TOB-2300	TOB-2900
Thermal power rate	700KW	1400KW	2300KW	2900KW
Capacity	600000KCAL/H	1200000KCAL/H	2000000KCAL/H	2500000KCAL/H
Working pressure rate	1.0MPa	1.1MPa	1.1MPa	0.8MPa
Oil tempreture rate	310°C	310°C	280°C	320°C
Reture oil tempreture rate	290°C	/	same	290°C
Oil circulation rate	40.99m3/h	100m3/h	160m3/h	160m3/h
Fire grate size	1.45m²	1.9m²	1.7m²	1.7m²
Radiant heating surface	15.122m²	36.12m²	31.6m²	33.8m²
Convective heated surface	38.35m²	73.88m²	95.5m²	99.1m²
Heat exchanger heated surface	12.174m²	21.5m²	21.6m²	21.7m²
Theoretical thermal efficiency	75.52%	79.52%	79.52%	78.05%
Exhaust gas temperature	192.69 °C	192.69 °C	166°C	147°C
Oil exit pressure	≤1.0MPa	≤1.1MPa	≤1.2MPa	≤0.8MPa
Design calculation pressure	1.3 MPa	1.4 MPa	1.1 MPa	1.2MPa
Test pressure	1.5 MPa	1.5 MPa	1.2 MPa	1.2 MPa
Oil volume	0.56m3	1.9m3	1.95m3	2.2m3
Total weight	8Ton	12Ton	18Ton	About 20Ton
Max. furnace resistance	≤220000Pa	≤230000Pa	≤240000Pa	≤250000Pa
Fuel	Biomass particles,Wood	Wood, Biomass particles	Oil, Wood, Biomass particles	Wood, Biomass particles
Thermal energy conversion	17694KJ/Kg	12665KJ/Kg	17694KJ/Kg	16830KJ/KG
Overall diameter of boiler main body	Φ1865*3640mm	Φ2400*4950mm	Φ290028004500mm	510029502800mm

Product Description

Close-packed disc tube heating surface arrangement is sufficient to reduce the tube sheet heat load, conducting oil safer to use.

Boiler quality insulation materials and special construction technology, less heat loss, the exhaust gas temperature is low, the high thermal efficiency of the boiler.

–

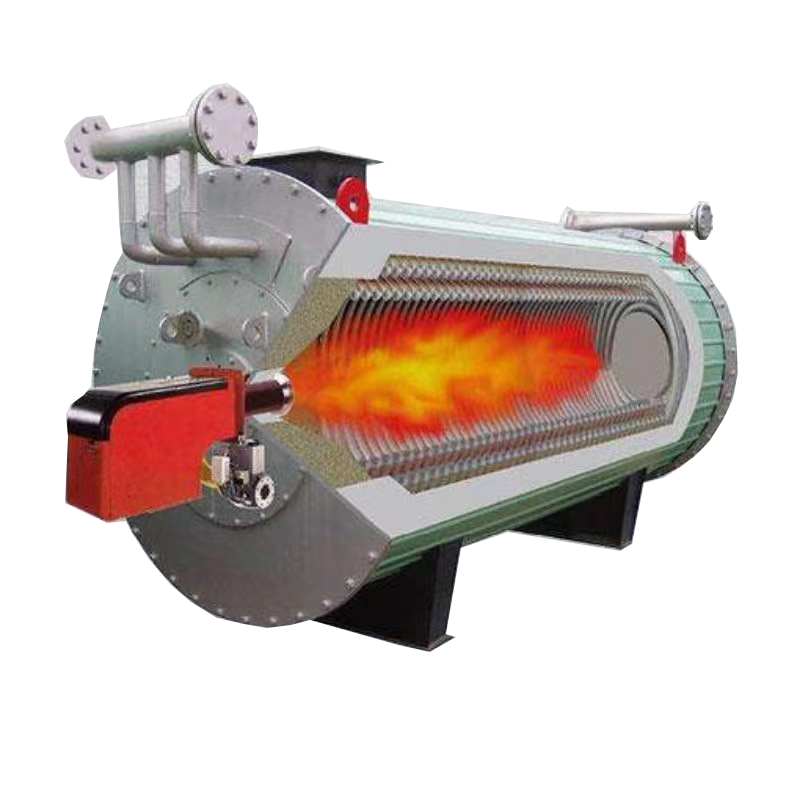

Boiler heating surface compact structure, the heating surface from the inside, outside close-packed circular tube constitutes the inner coil radiation heating surface,

the outer surface and coil and the inner coil convection heating surface.

Full assembled, compact structure, small footprint, is extremely easy to install and flexible, as long as the boiler is located based on.

–

Applicable fuel: light diesel oil, heavy oil, gas, peanut shell, dry firewood, fuel and so on.

Company Profile

Why Choose Us

Pre-sale services:
1) Provide the free consultation of the equipment
2) Provide the standard device and the flow chart
3) According to the clients’ special requirement, offering the reasonable plan and free design to help to select the equipment.
4) Welcome to visit our factory

Services during the sales:
1) Inspect the machine before leaving the factory.

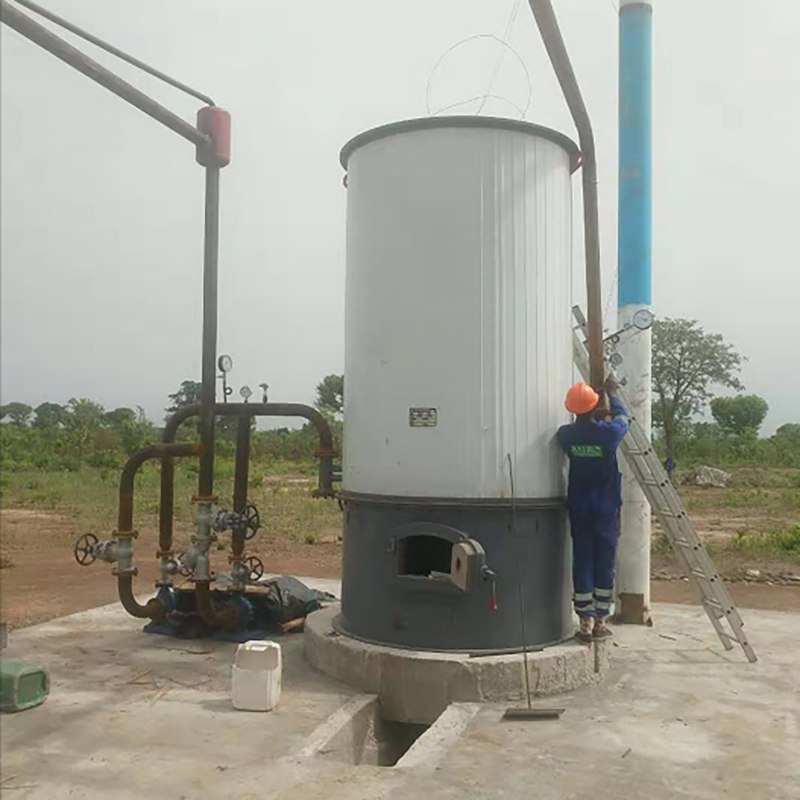

2) Oversea install and debug the equipment
3) Train the first-line operator.

After sale services:
1) 24 hours online service
2) Provide the VIDEO with Install and debug the equipment

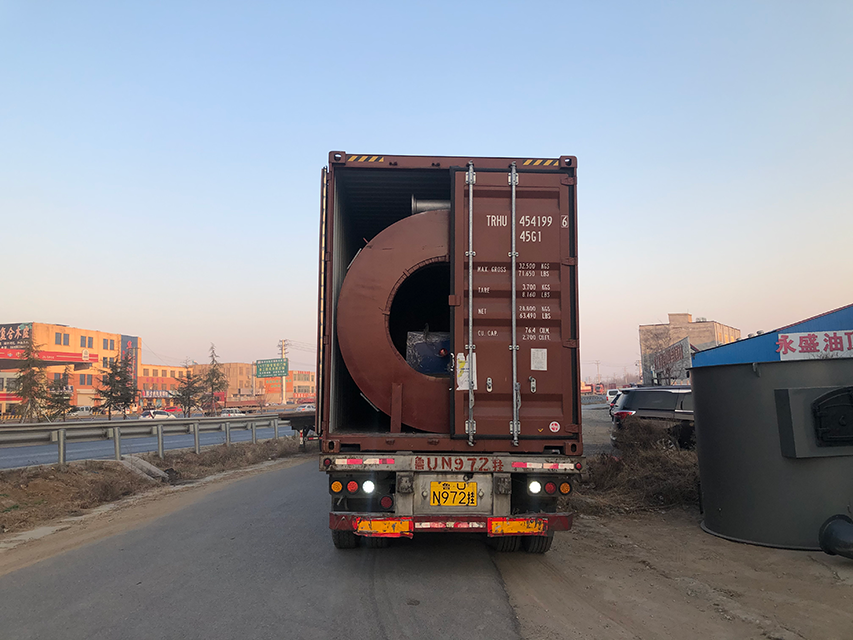

Packing & Delivery

To better ensure the safety of industrial thermal oil boiler, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

1. Can you offer good price with fine quality also?

Surely,if without quality, we cannot win long market.we will loose long-terms customers.Quality is our responsibility. We must produce and test machine well. Because we are always expecting long term business.Regarding the price. We are not sure if it is lowest or highest, but we will be offering reasonable.We don’t want heavy profits, We want a acceptable price to you,and we are expecting a bigger quantities of sales for different wood machines.

2. We will be protected if we are paying for orders?

Surely yes,we have been exported 1000000$ different wood machine every year,We received the payment,we should produce for you and ship to you without delay. It is honesty.We could understand that you paid,you want to see machines soon and use soon. and these years alibaba trade assurance you could rely on,you will be protected very well.

3. What’s your warranty? can you do more service for us?

We are pleased to give life continuous after-sales service. within 12 months, if components broken,we will send you new for change. we would like to help to solve any troubles when you use machine at any time.and don’t be worried,we will keep opening 24 hours for all customers problem or difficulties. We must help to make solutions within 48 hours.

4. What’s your production time? we want faster shipping time also.

Mostly machine we have in stock, some machine we produce need about 7-10 days. make fast shipment always. shipping time depends on shipping company.
