Product Description
800T 30 Openings Full Automatic Hydraulic Plywood Hot Press Machine

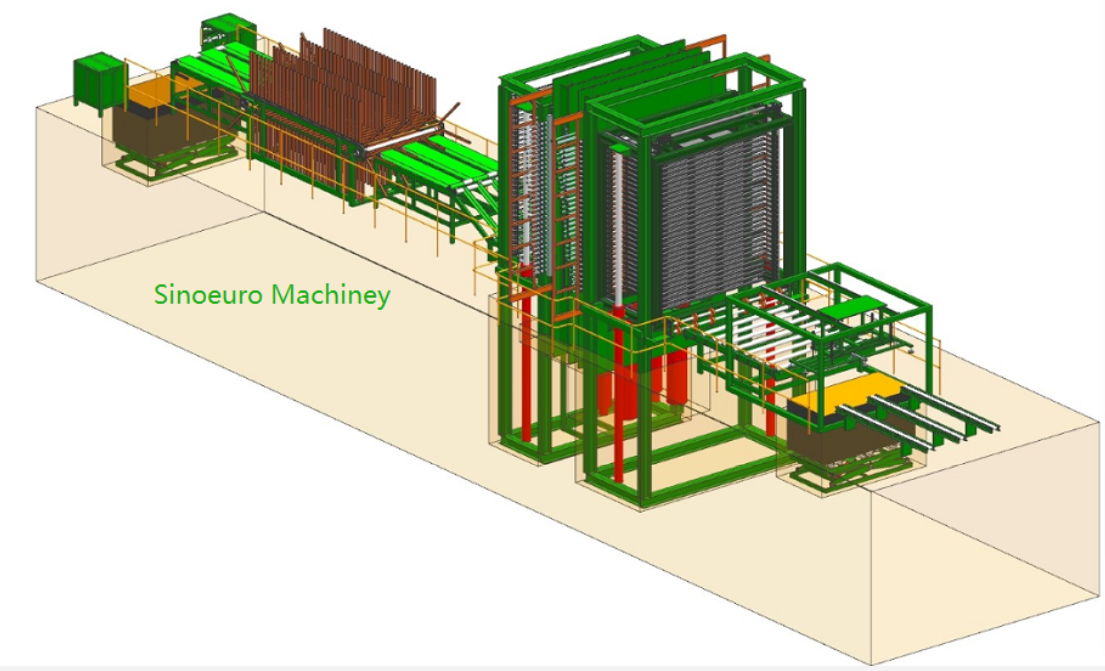

HOT PRESS MACHINE is the center machine in Plywood Production Line.
After cold pressing and repairing process, the treated basic plywood will be sent to basic plywood hot press. It will take 5-60 minutes depends on board thickness. After hot pressing, the workers will do the second time defects repairing. The board will be stored in semi product storage hours for cooling and storage.
The working condition of the hot press is directly related to the production quality of the plywood, so it is especially important to choose a high quality machine.
Specification of Hydraulic Plywood Hot Press
The Pressure, Working size, Working pressure can all be customized according to client’s requirements.
|
Models
|
SEHP48-1560
|
SEHP48-2060
|
SEHP48-3080
|
|
Max. Working Pressure
|
600T
|
600T
|
800T
|
|
Working Layers
|
15
|
20
|
30
|
|
Distance Between Each Layer
|
70mm
|
||
|
Hot Platen Size
|
1370*2700*52mm
|
||
|
Hot Platen Quantity
|
16pcs
|
21pcs
|
31pcs
|
|
Cylinder
|
400mm*1050mm*2pcs
|
400mm*1400mm*2pcs
|
320mm*2100mm*4pcs
|
|
Motor Power
|
11KW+7.5KW
|
15KW+7.5KW
|
22KW+7.5KW
|
|
Low Pressure Pump
|
16ML plunger pump
|
||
|
High Pressure Pump
|
237L vane pump
|
255L vane pump
|
94L vane pump
|
|
Control System
|
PLC automatic control
|
||
|
Main Frame Thickness
|
40mm
|
40mm
|
45mm
|
|
Up, Middle, Bottom Beam Height
|
900mm, 400mm, 900mm
|
||
|
Column Width
|
400mm
|
–
Machine Advantage
1. CNC Platner Processing Frame
Whole frame is made of GB Q235 steel plate or manganese steel, through CNC planer processing.
500T hot press adopts 35mm steel.600T hot press adopts 40mm steel.

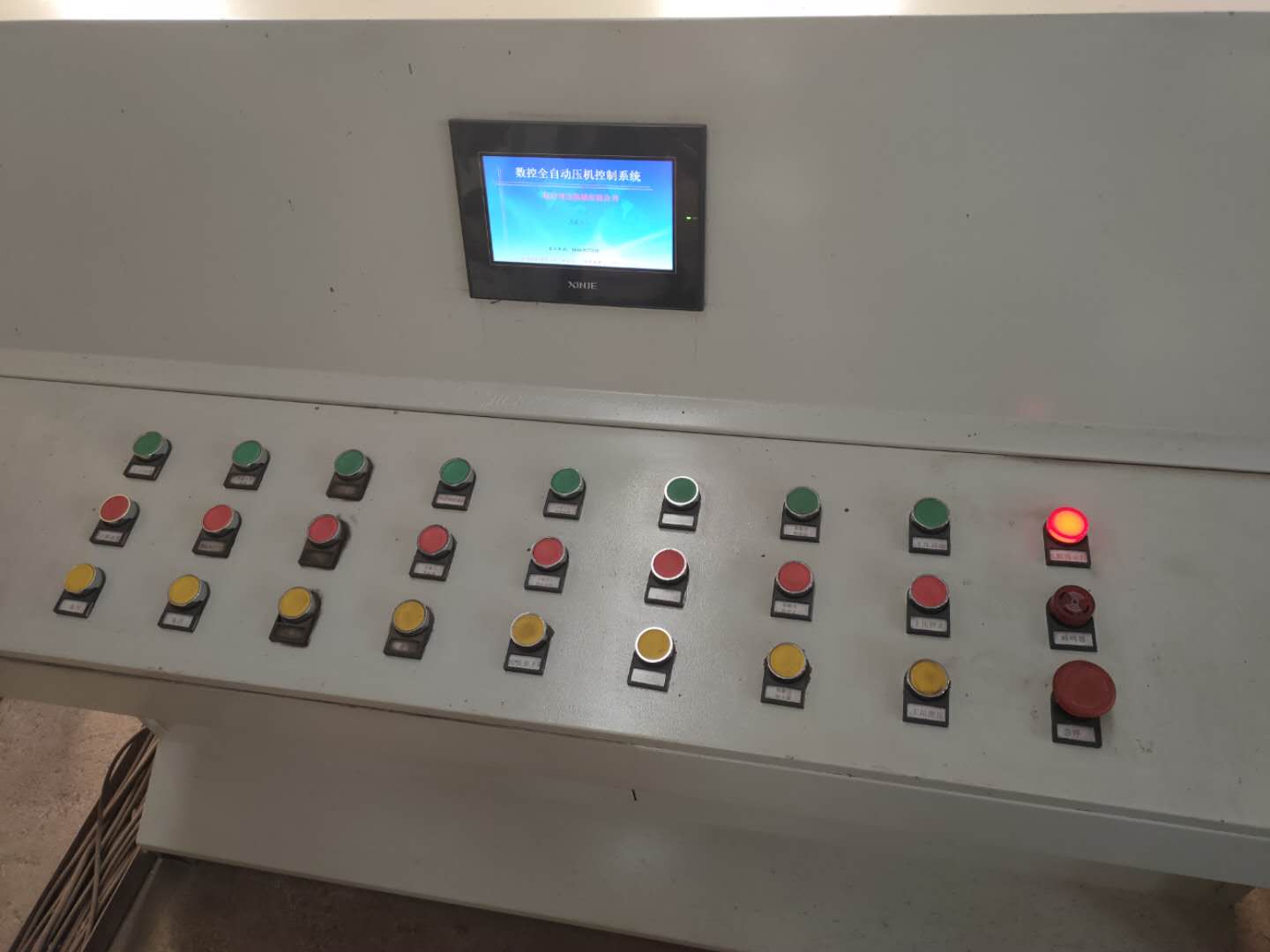

2. Full Auto PLC Control Sytem
Adopts Taiwan DELTA PLC + Touch Screen, France Schneider Electrical Parts,Automatic high voltage 6 section voltage holding time control system

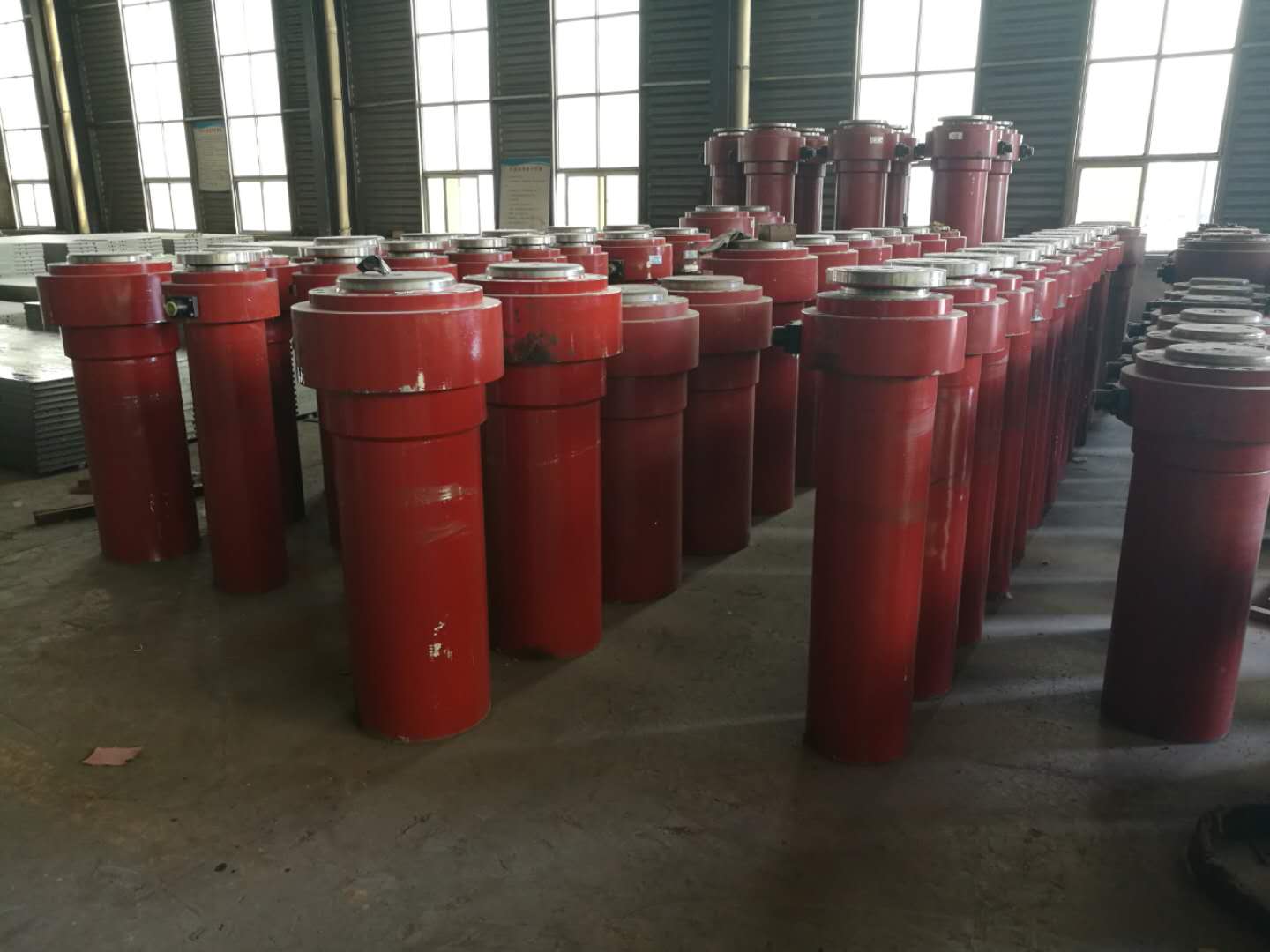

3. Wuxi Original Cylinder
Wuxi Suyi Brand Oil Cylinder, Condensing cast iron, Chrome plating surface, Weight improved oil cylinder, No oil leaking problem.
4. Uniform Hot Platen
Hot platen is 52mm thickness, thermal oil double in and out. CNC planer process and polishing, Smooth surface, 0.1mm thickness tolerance.
Uniform heat transfer, Small surface temperature difference
5. Silent Dust-free Hydraulic Station
Adopts Taiwan HEANG valve, Kinyuen vane pump,Siemens motor.Slient, Dust-free, Maintenance-free.
6. Other Parts
Other parts all adopts GB or world famous parts. CNC maching parts, precise and durable.

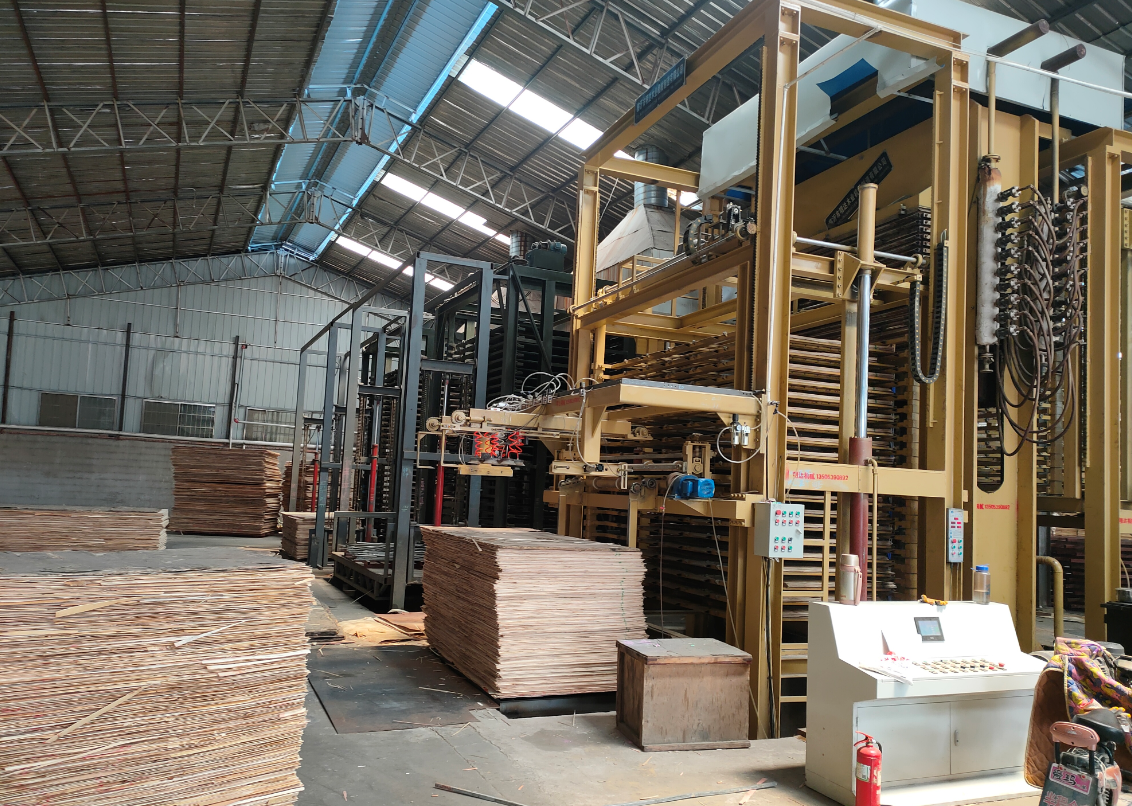

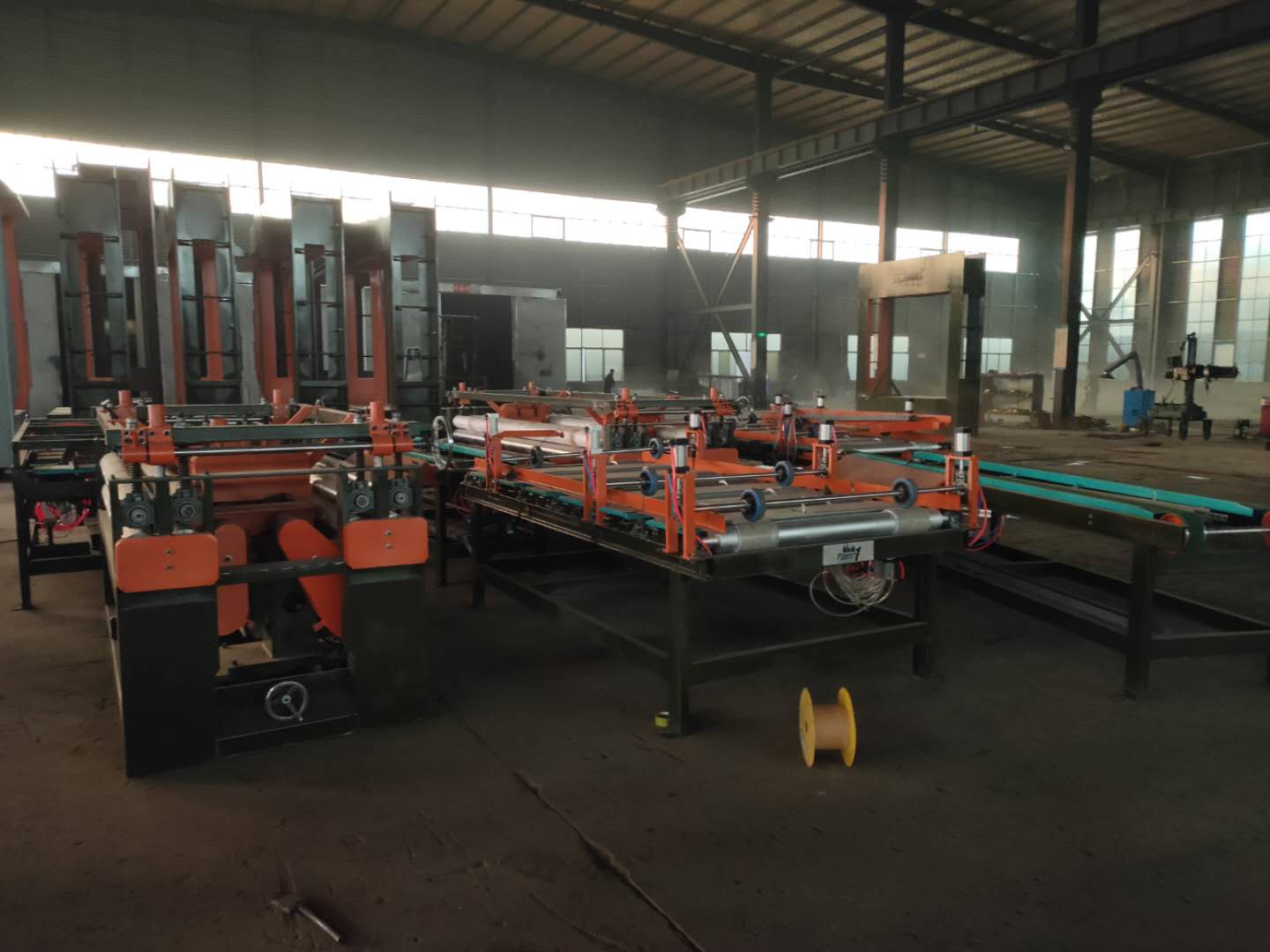

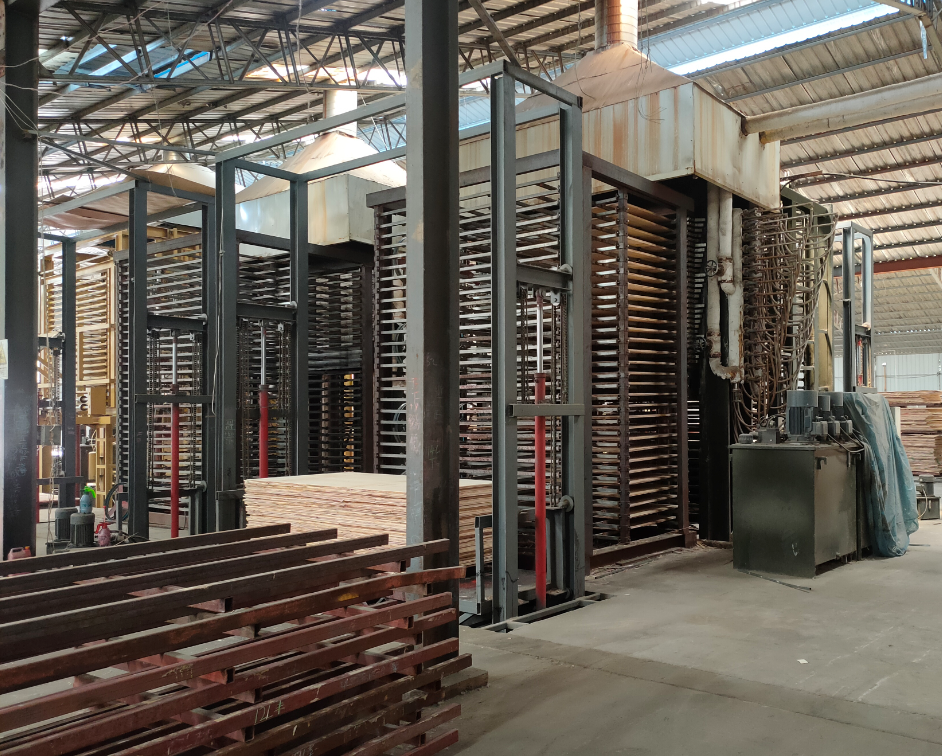

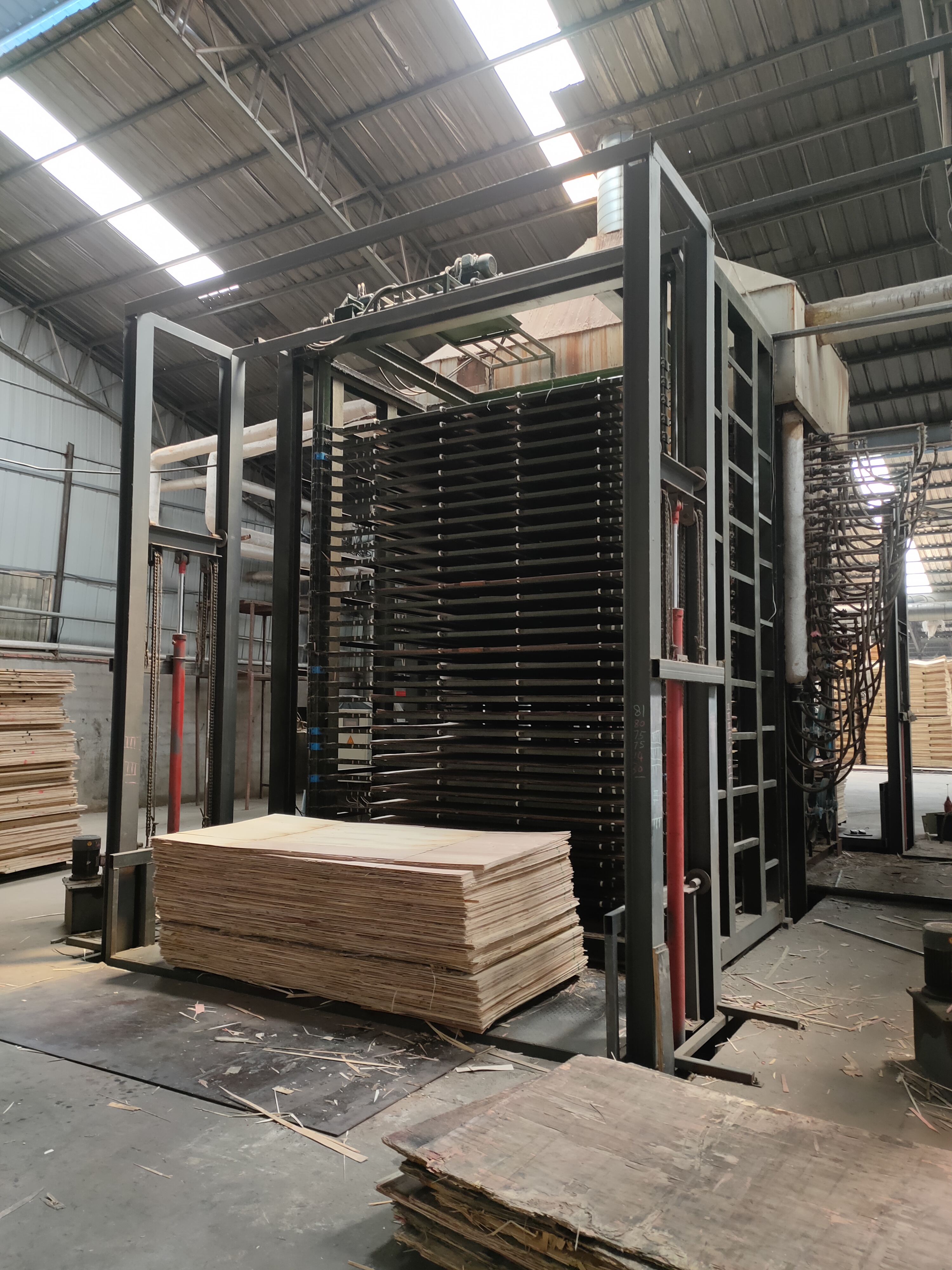

Machines in Users’ Factory
–
–
