gluing machine for plywood

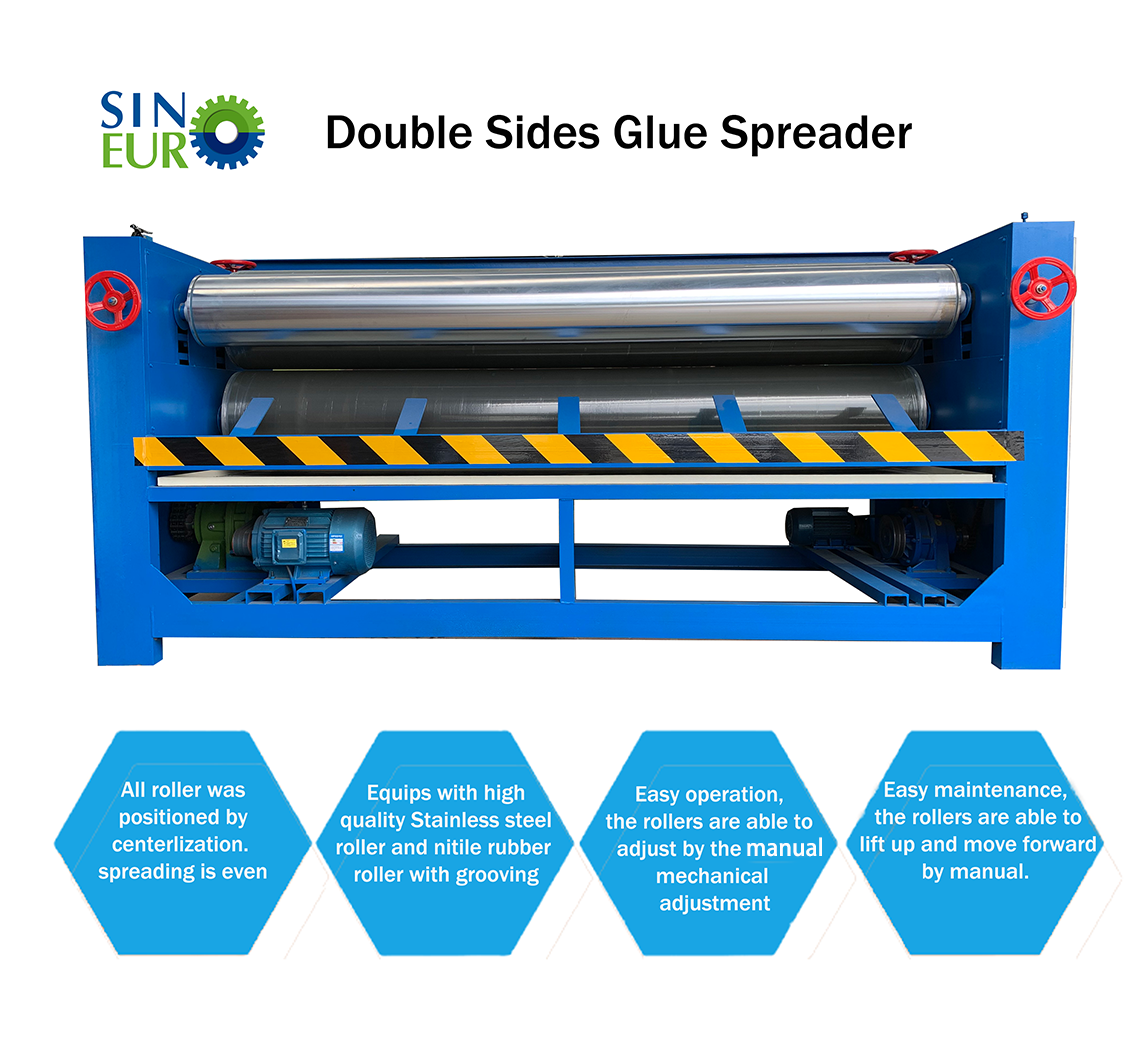

The glue spreader machine spreads the glue on the core veneers, multi-layer board, plywood, block board and so on. It has three rollers and four rollers. The one with three rollers is single-side glue coating machine. The glue spreader with four rollers is double-side coating machine.

The glue spreader is divided into 4ft, 5ft, 8ft, 9ft and so on. It can be customized according client’s requirement.It is produced with reasonable design, glue coating averagely, saving cost, easy operation and low price.

Product Description

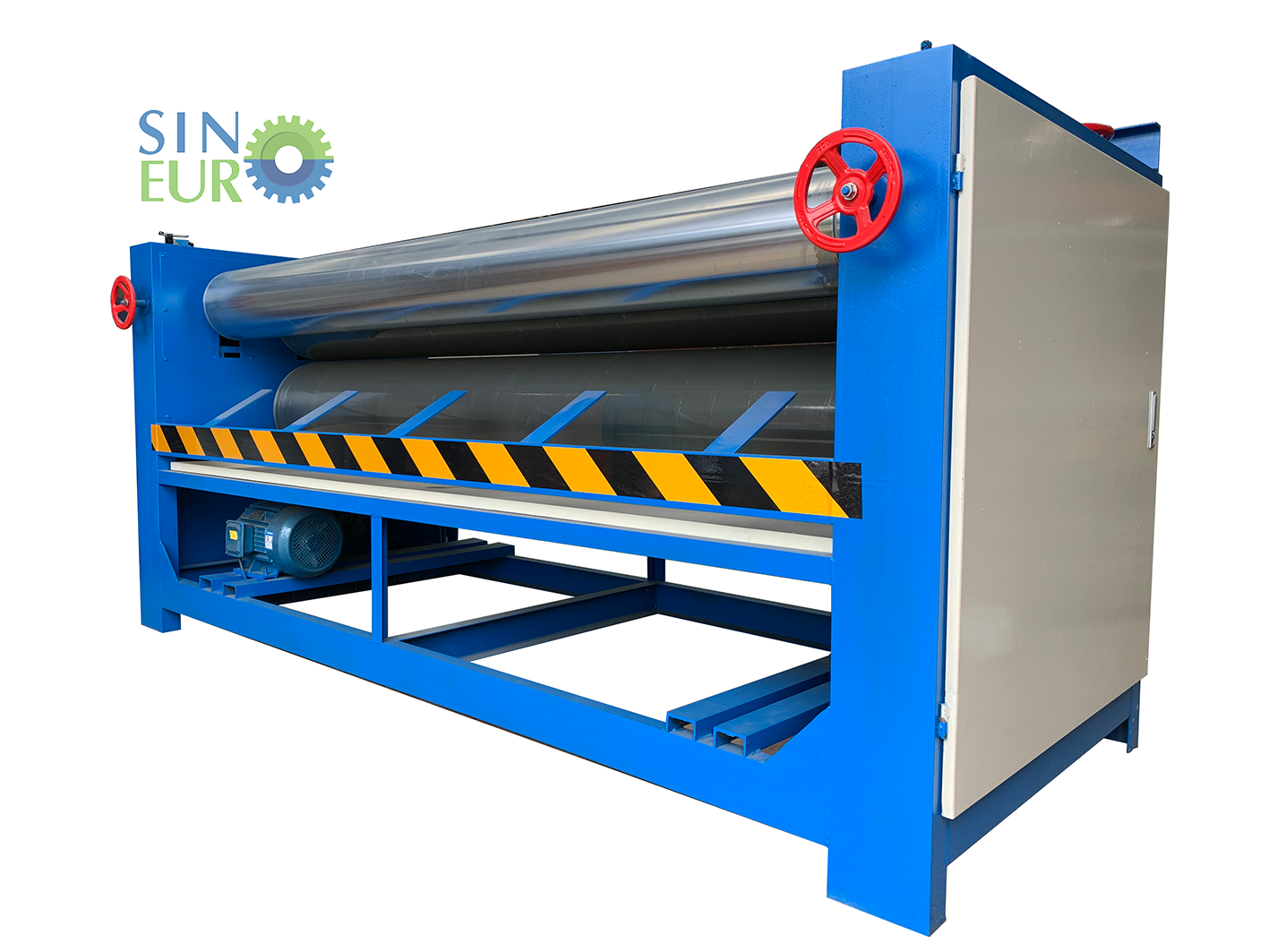

Gluing machine for plywood

The machine spreads the glue on the core veneers, multi-layer board, plywood, block board and so on. It has three rollers and four rollers.

The glue spreader is divided into 4ft, 5ft, 8ft and so on. It can be customized according to client’s requirement.

Specification
Modle
SE-7220L(8ft)
SE-4220L(4ft)
Rubber Roller Diameter
305/410mm
246/410 mm
Max. Working Thickness
70mm
70mm
Glue Spreading Speed
12-60m/min
12-60m/min
Chromate Roller Diameter
240mm
210mm
Number of Roller
4
4
Motor Power
5.5kw
2.2kw
Overall Dimension
3400x1400x1500mm
2200×1200×1400mm
Weight
4200kgs
2200kgs

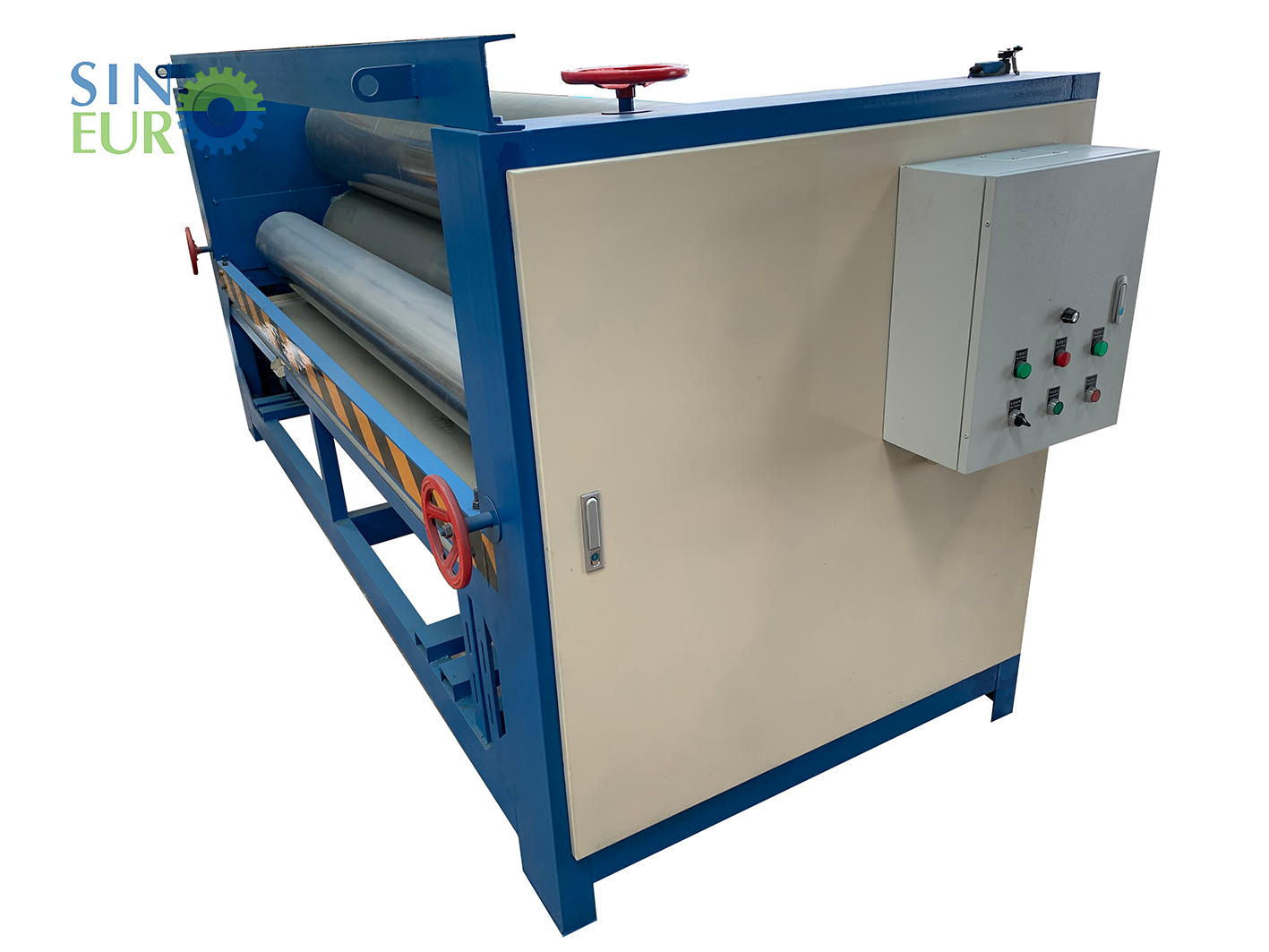

Details Images
Features:
It have coating averagely, high productivity, save glue, save staff and save cost.
Increasing the utilization of glue and decreasing and minimize glue consumption.
Easy operation and easy maintenance.
Adjusting thickness .

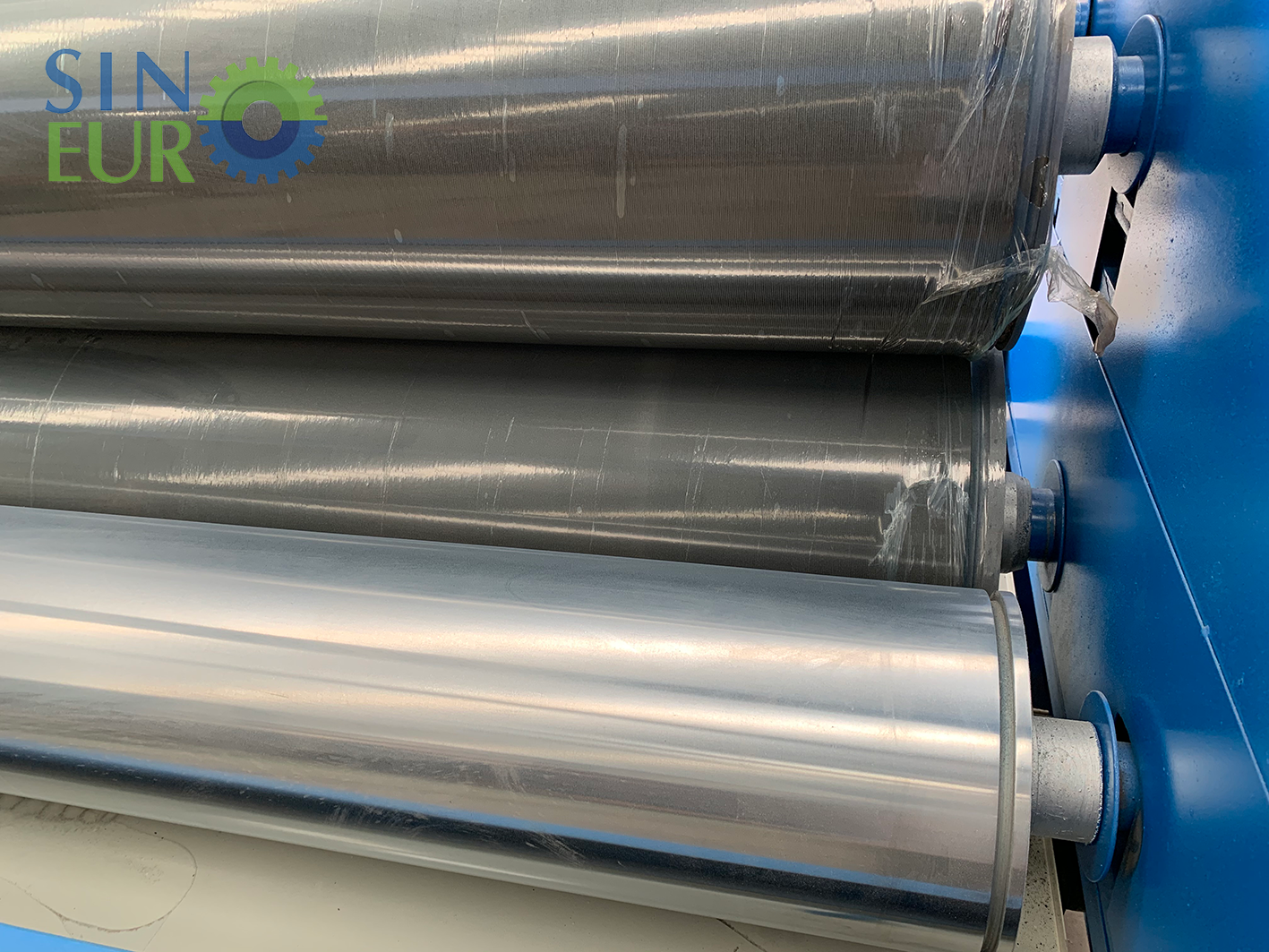

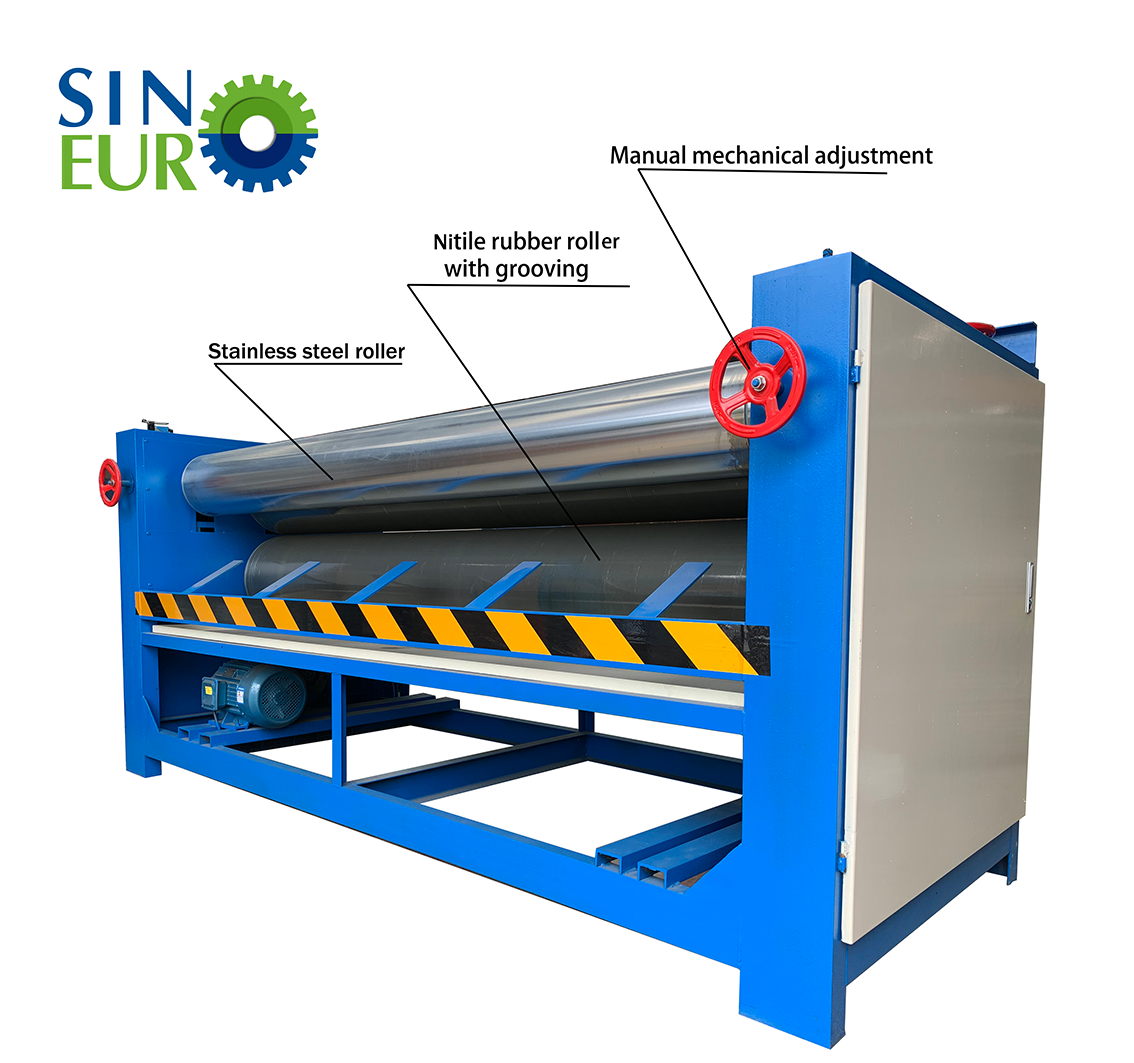

Corrosion-resistant stainless steel roller
All roller was positioned by centerlization. spreading is even .The glue roller of this machine is made of corrosion-resistant stainless steel roller
and nitile rubber roller with grooving ,very safe and durable.
Nitile rubber roller with grooving
The rubber roller is covered with 25mm Nitile natural rubber .It has high hardness ,so it is very durable ,excellent oil
resistance , high wear resistance ,good heat resistance and strong adhesion.Surface of gluing machine for plywood has screw therad pattern,
this increase rubber roller friction.

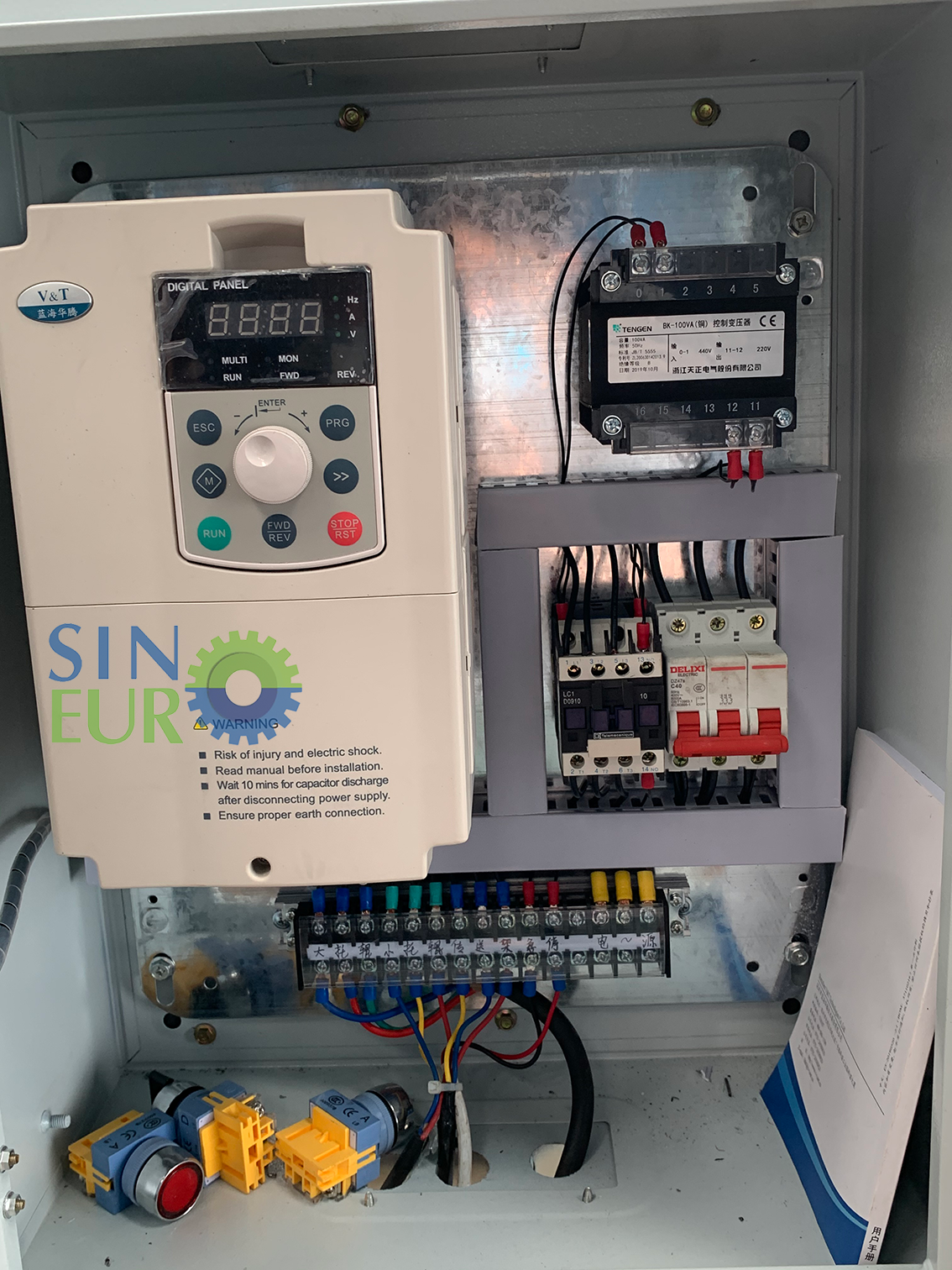

Controlling speed system
Speed adjustable by inverter drive . Adopts Siemens, Delta, INVT inverter or other famous brand.
