Door skin press machine
Product Description

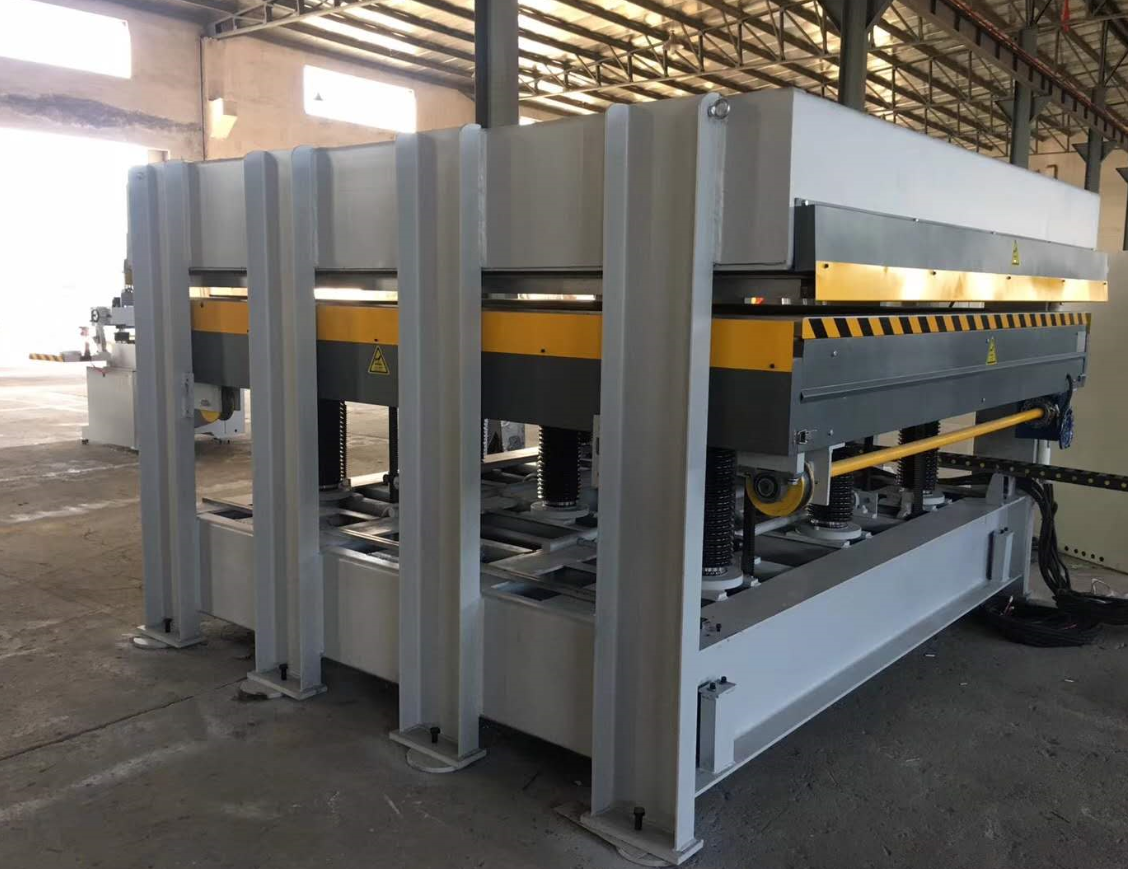

120T 3 Layers Hydraulic Door Skin Press Machine
HOT PRESS MACHINE FEATURE
Suitable to press veneer ,fireproofing-board ,decorating-paper etc .
Adopt solid steel heat conduction board with deep-hole drilling technic ,configure with pedal emergency switch ,quadric
temperature protection device etc; Main hydraulic parts cylinders and composites are imported from Japan and Taiwan .
Heating type
1.Electric heating with circulating heat-transmission oil (standard configuration );
2.Steam heating (optional)
3.With both electric and steam hearing ,suitable for shortage of steam area
2.Steam heating (optional)
3.With both electric and steam hearing ,suitable for shortage of steam area
Specification of door skin press machine
The Pressure, Working size, Working pressure can all be customized according to client’s requirements.
|
Models
|
SEHP48-3-120
|
SEHP48-4-120
|
SEHP48-4-250
|
|
Max. Working Pressure
|
120T
|
120T
|
250T
|
|
Working Layers
|
3
|
4
|
4
|
|
Distance Between Each Layer
|
100mm
|
||
|
Hot Platen Size
|
1300*3000*42mm
|
1300*3000*52mm
|
1300*2500*52mm
|
|
Hot Platen Quantity
|
4pcs
|
5pcs
|
5pcs
|
|
Cylinder
|
100mm*300mm*8pcs
|
100mm*400mm*8pcs
|
145mm*400mm*6pcs
|
|
Total Motor Power
|
61.7KW
|
61.7KW
|
63.7KW
|
|
Electric Heating Power
|
54KW
|
||
|
Machine Weight
|
9000kg
|
10500kg
|
11500KG
|
–
–
–
Machine Advantage

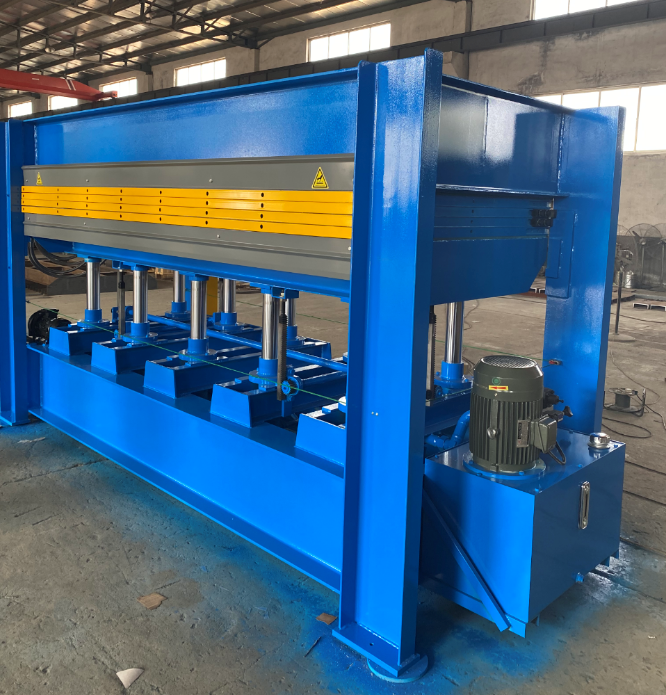

1. CNC Platner Processing Frame
Whole frame is made of GB Q235 steel plate or manganese steel, through CNC planer processing.

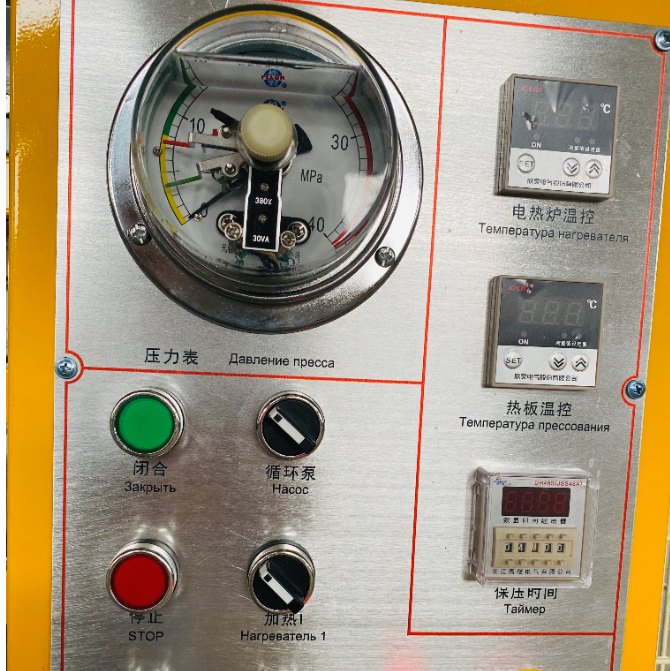

2. Easy To Control
Inverter Control.Full automatic PLC+ Touch screen control is optional.

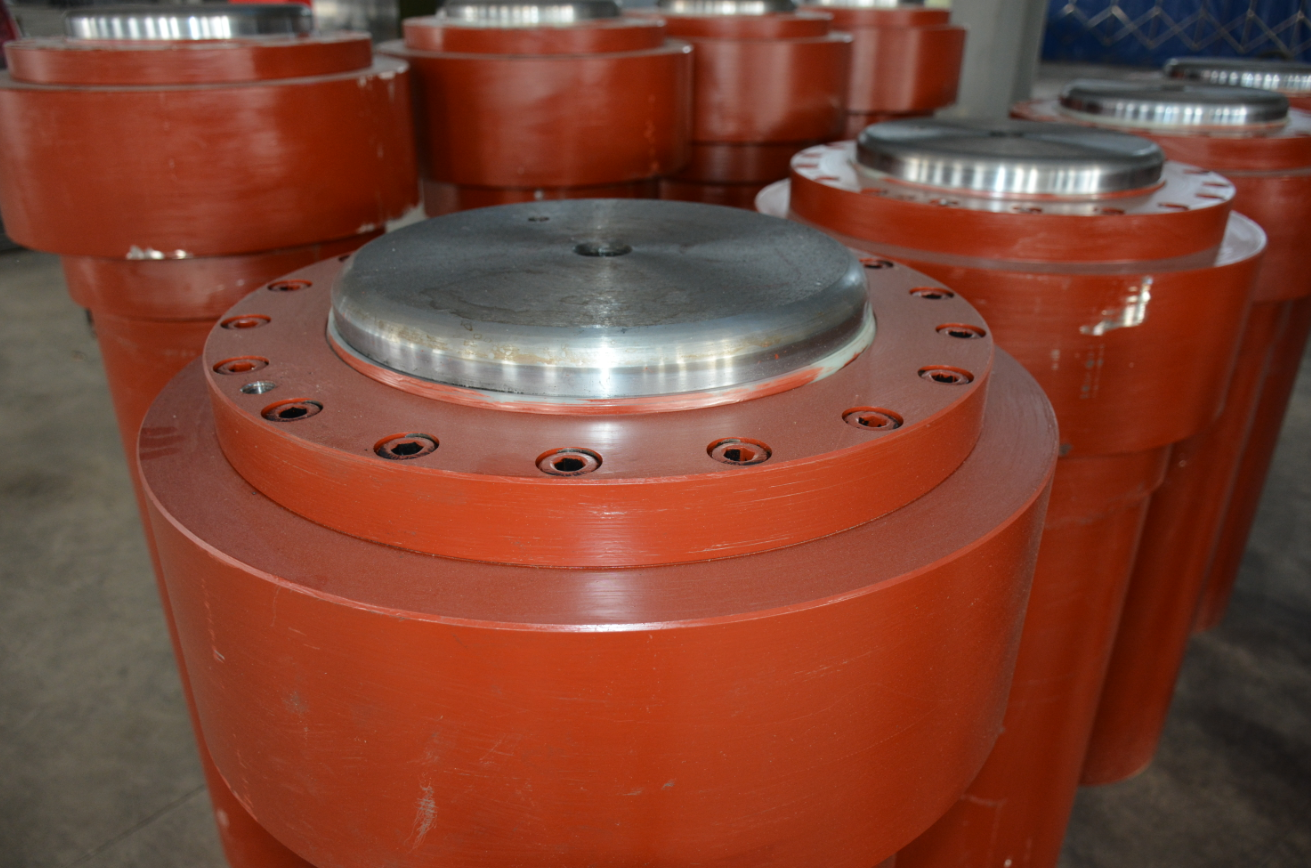

3. Wuxi Original Cylinder
Wuxi Suyi Brand Oil Cylinder, Condensing cast iron, Chrome plating surface, Weight improved oil cylinder, No oil leaking problem.

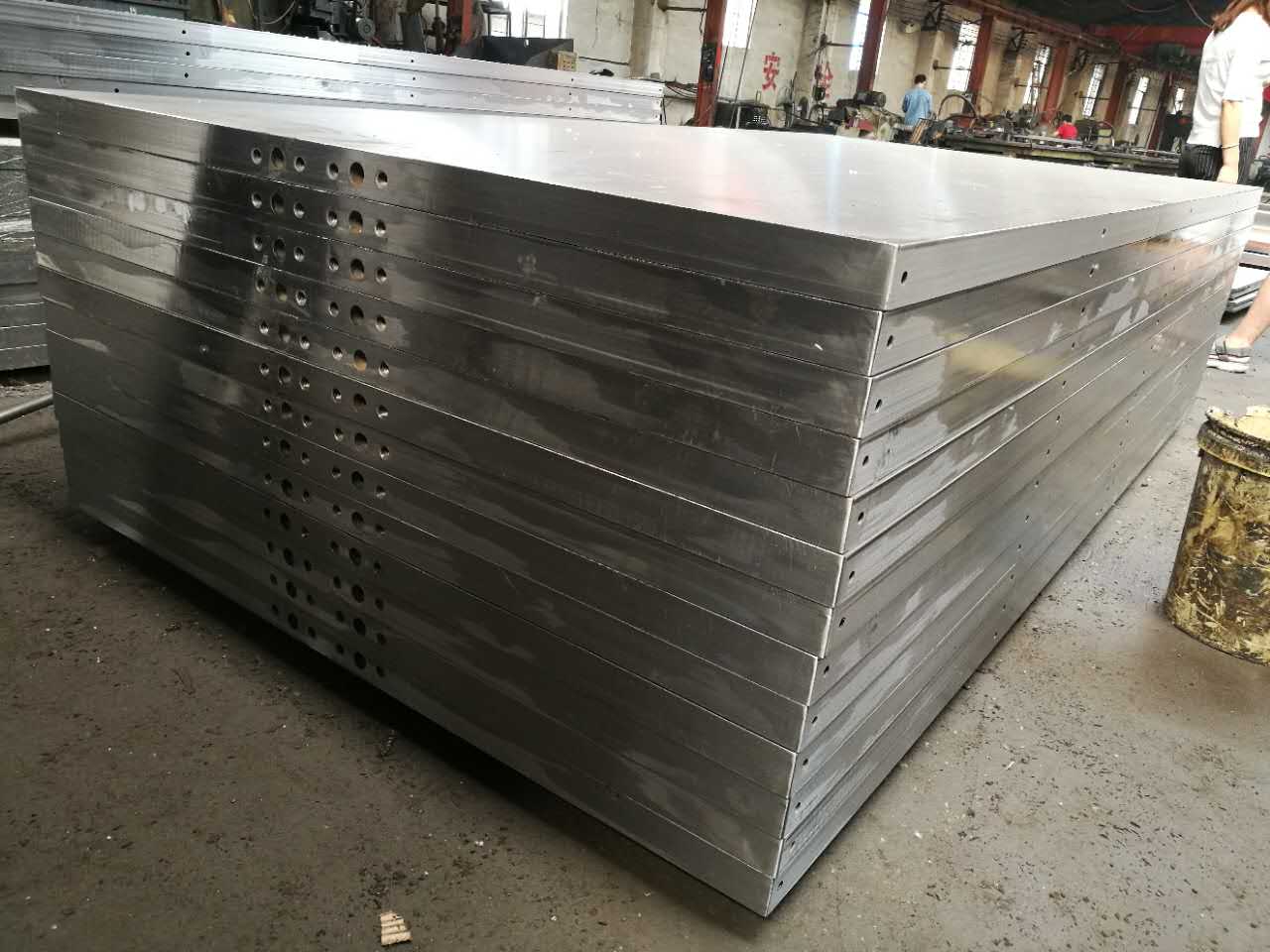

4. Uniform Hot Platen
Hot platen is 52mm thickness, thermal oil double in and out. CNC planer process and polishing, Smooth surface, 0.1mm thickness tolerance.
Uniform heat transfer, Small surface temperature difference

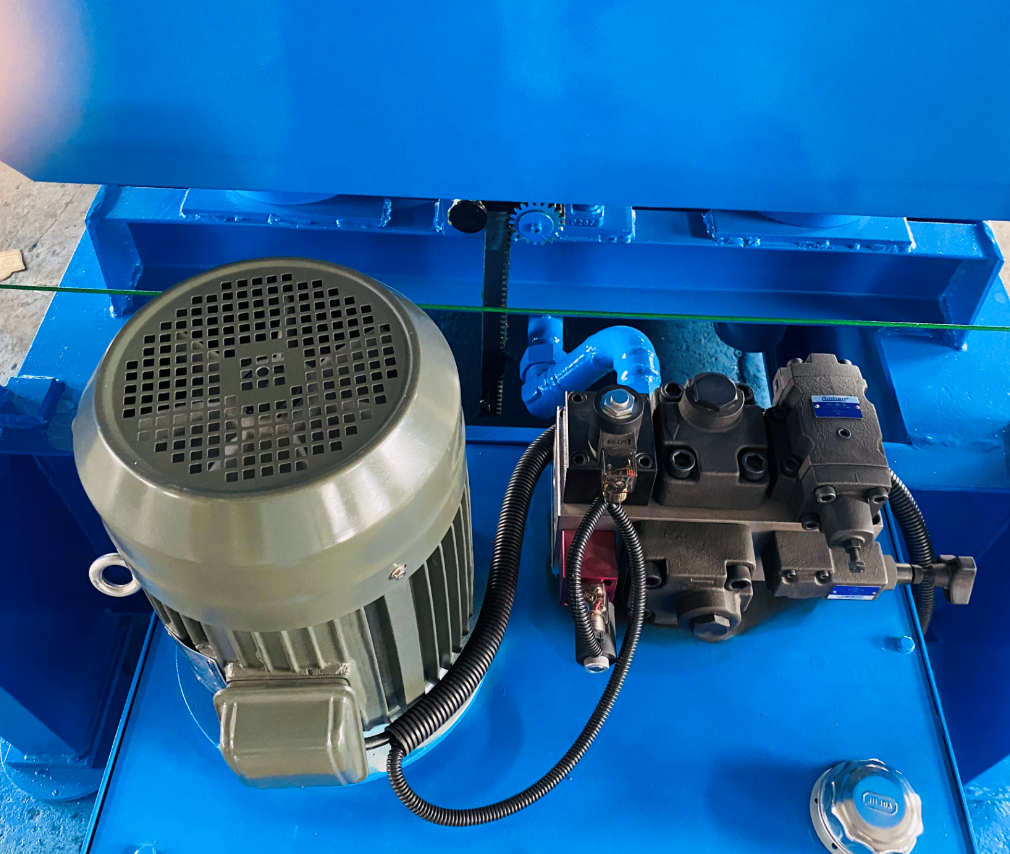

5. Silent Dust-free Hydraulic Station
Adopts Taiwan HEANG valve, Kinyuen vane pump,Siemens motor.Slient, Dust-free, Maintenance-free.

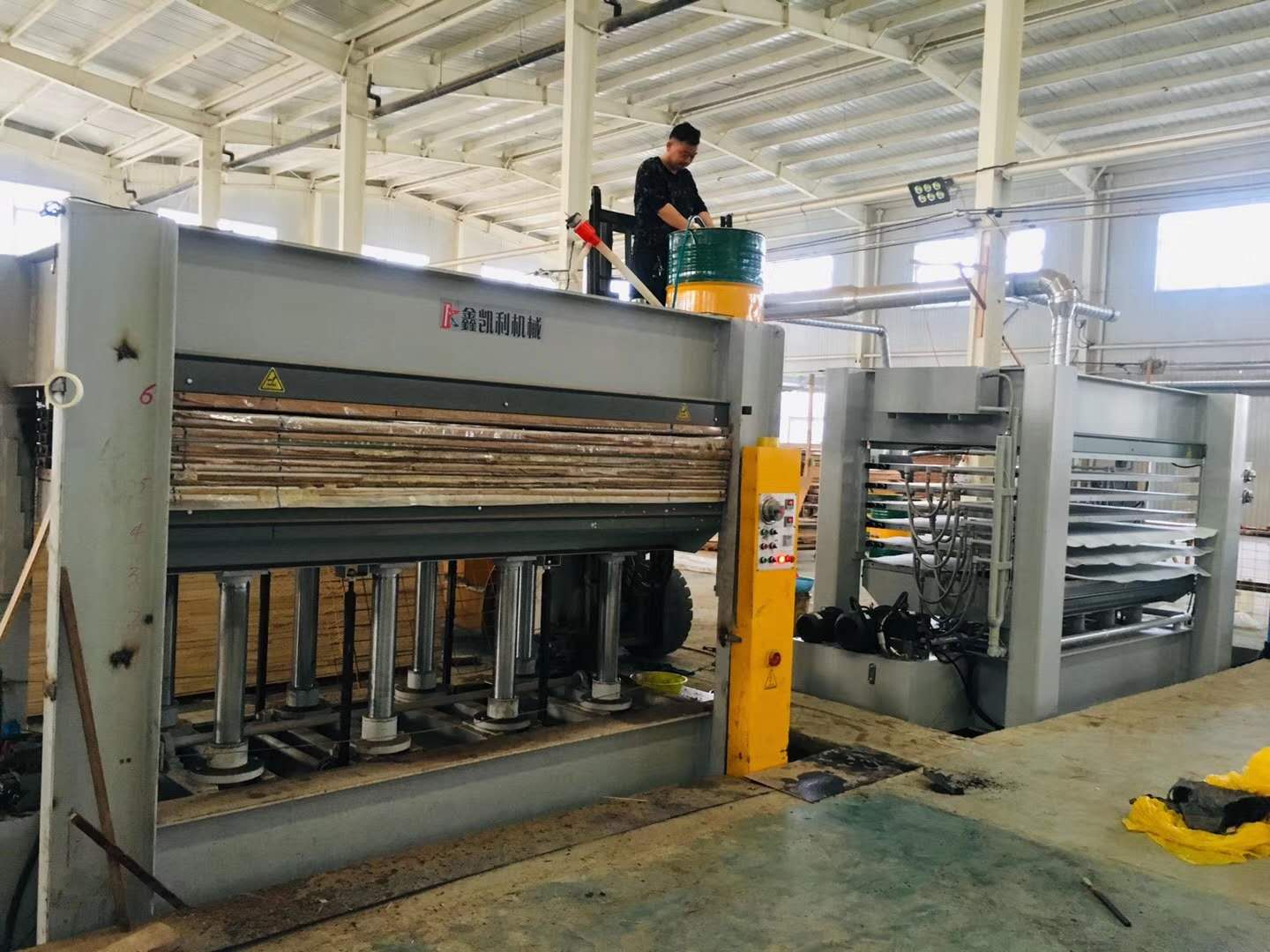

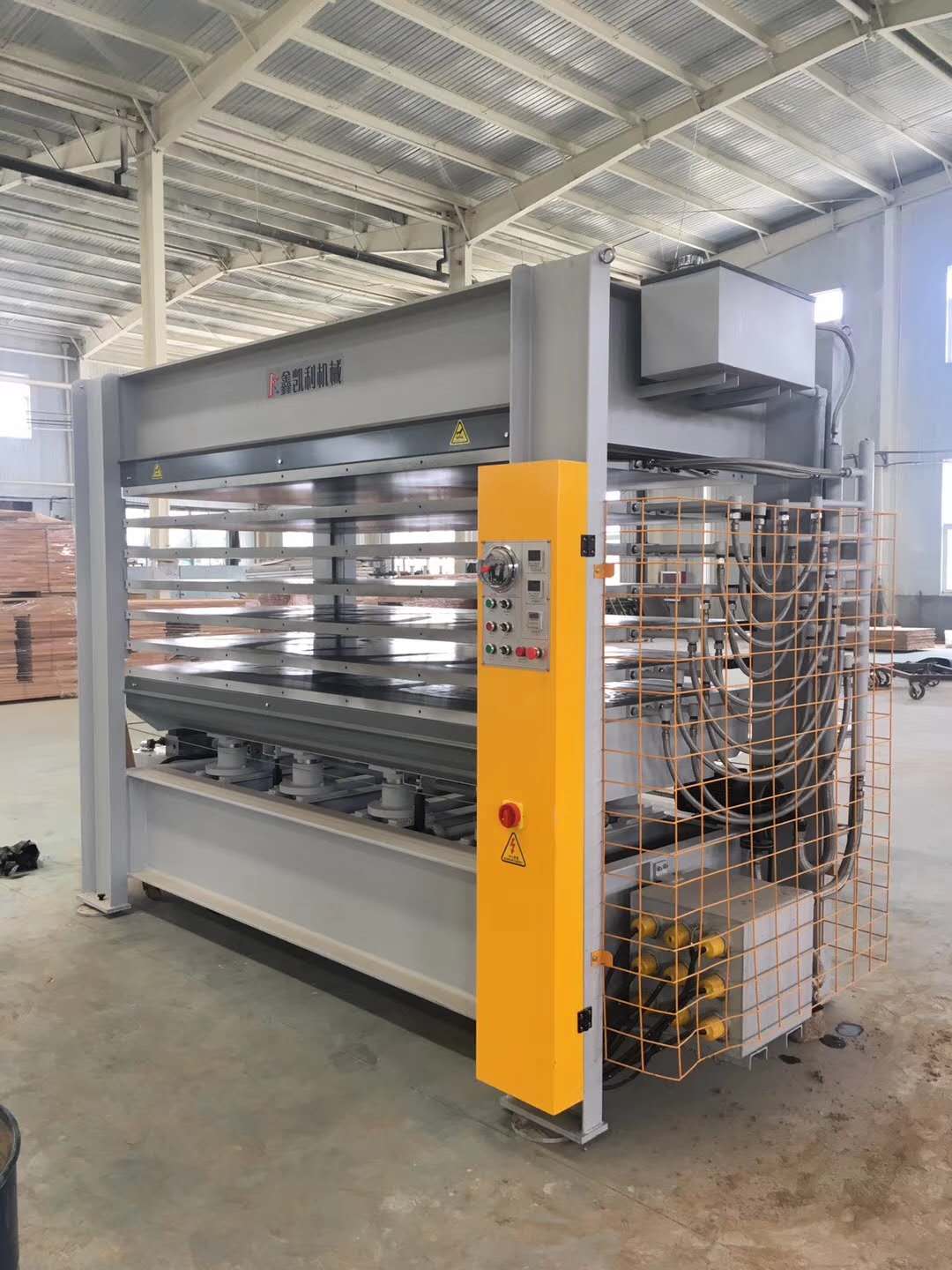

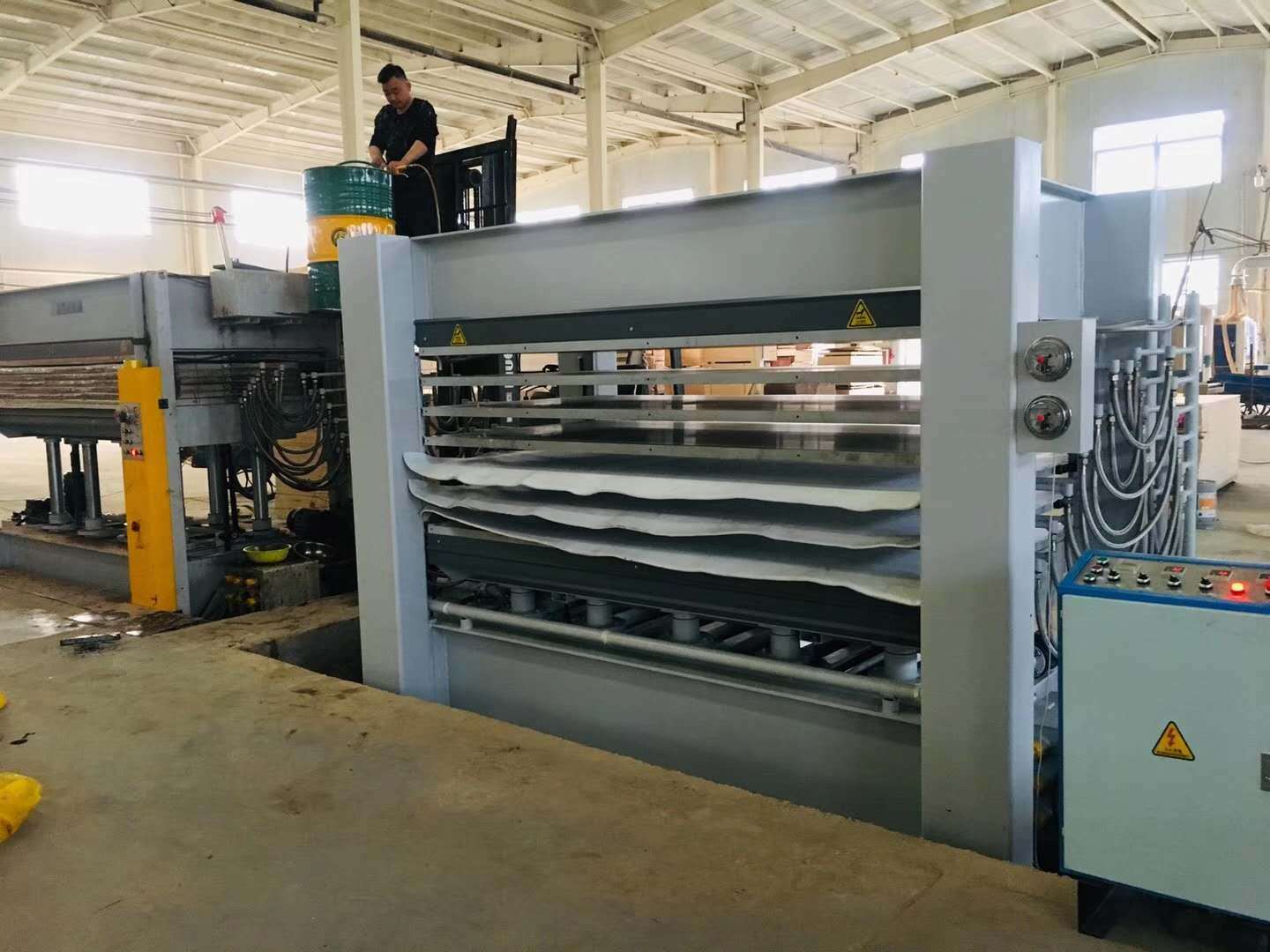

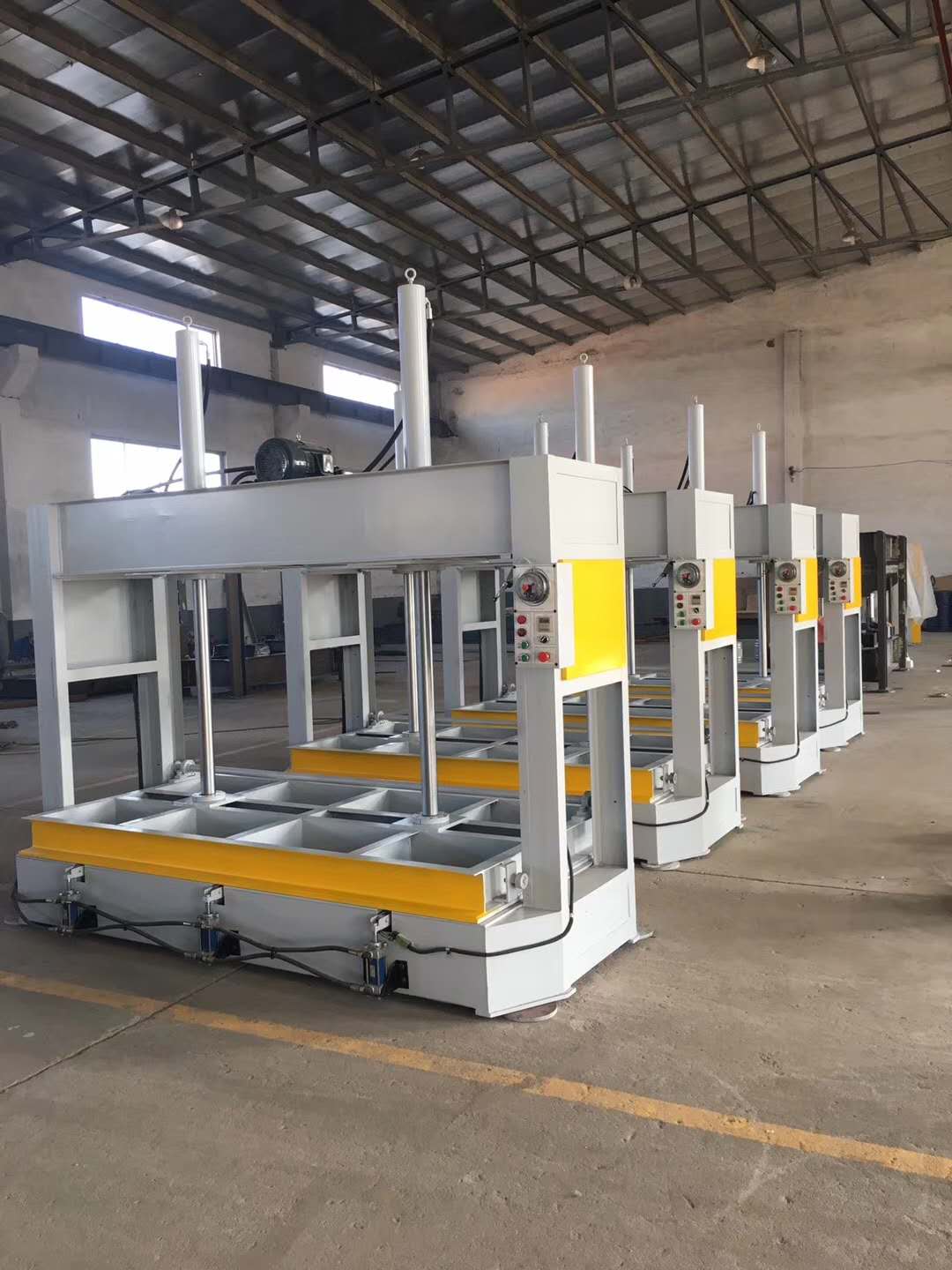

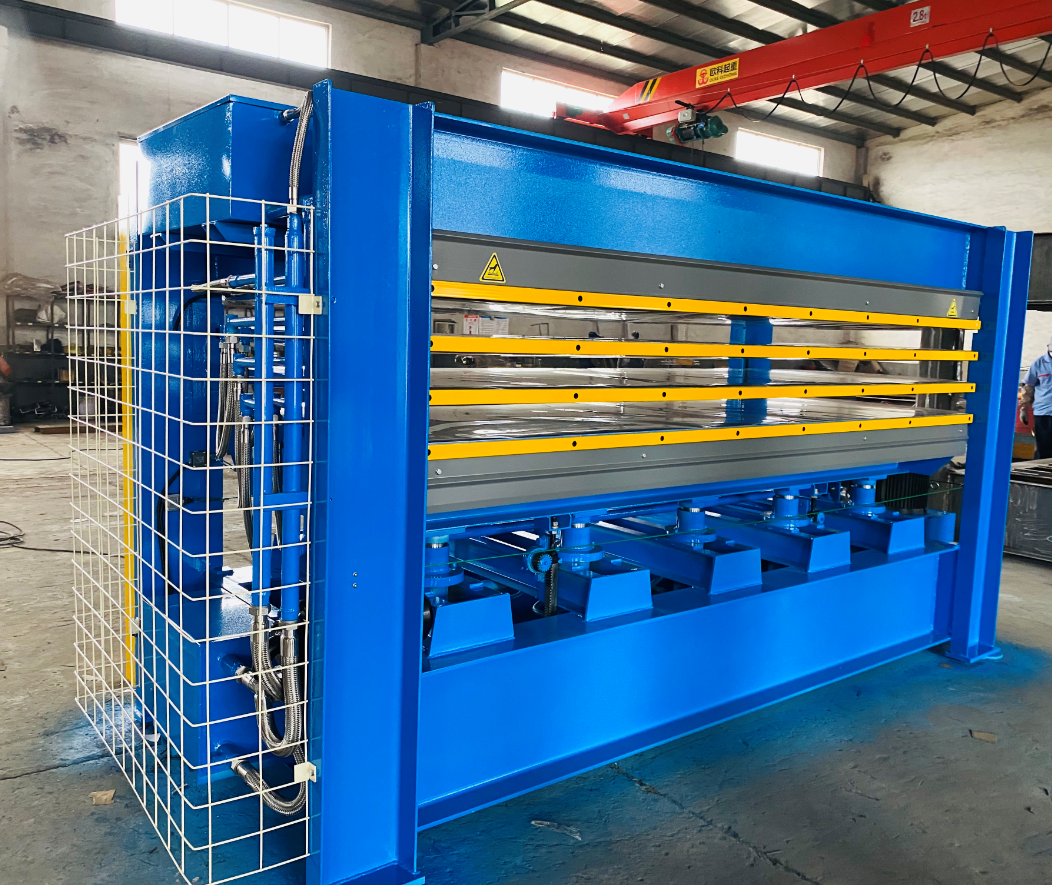

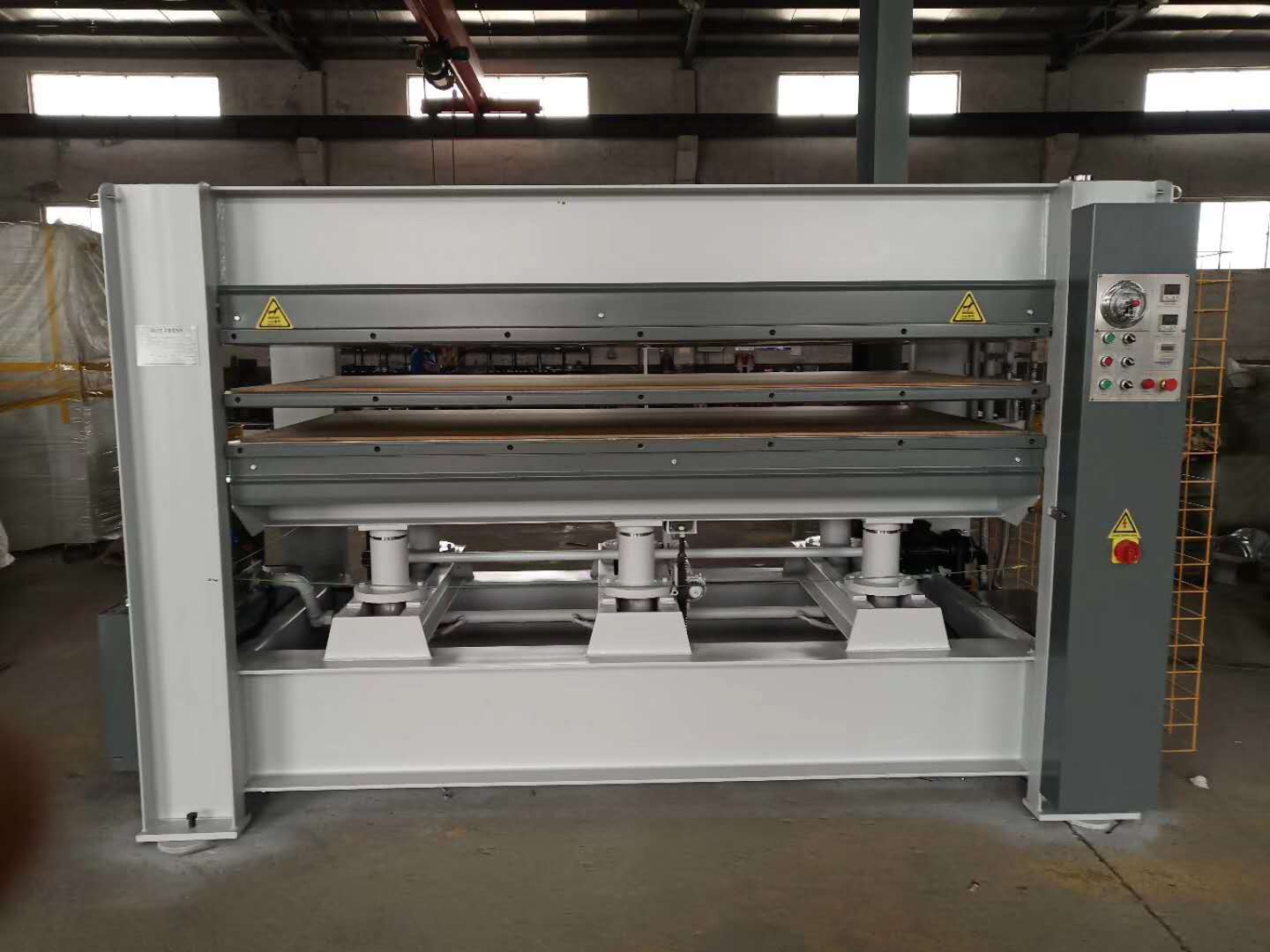

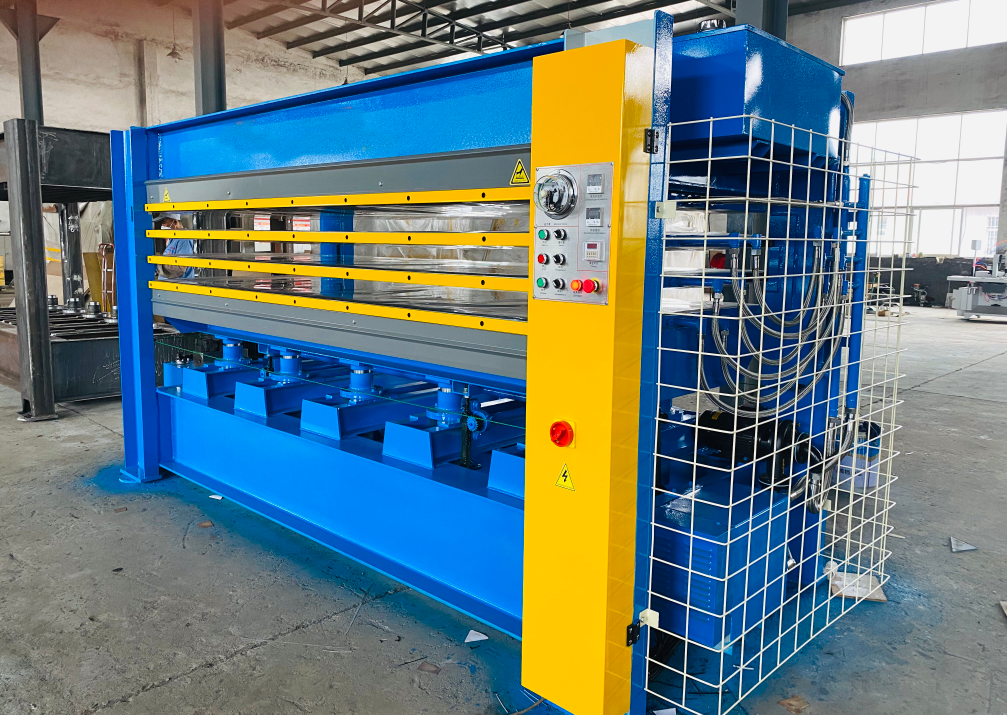

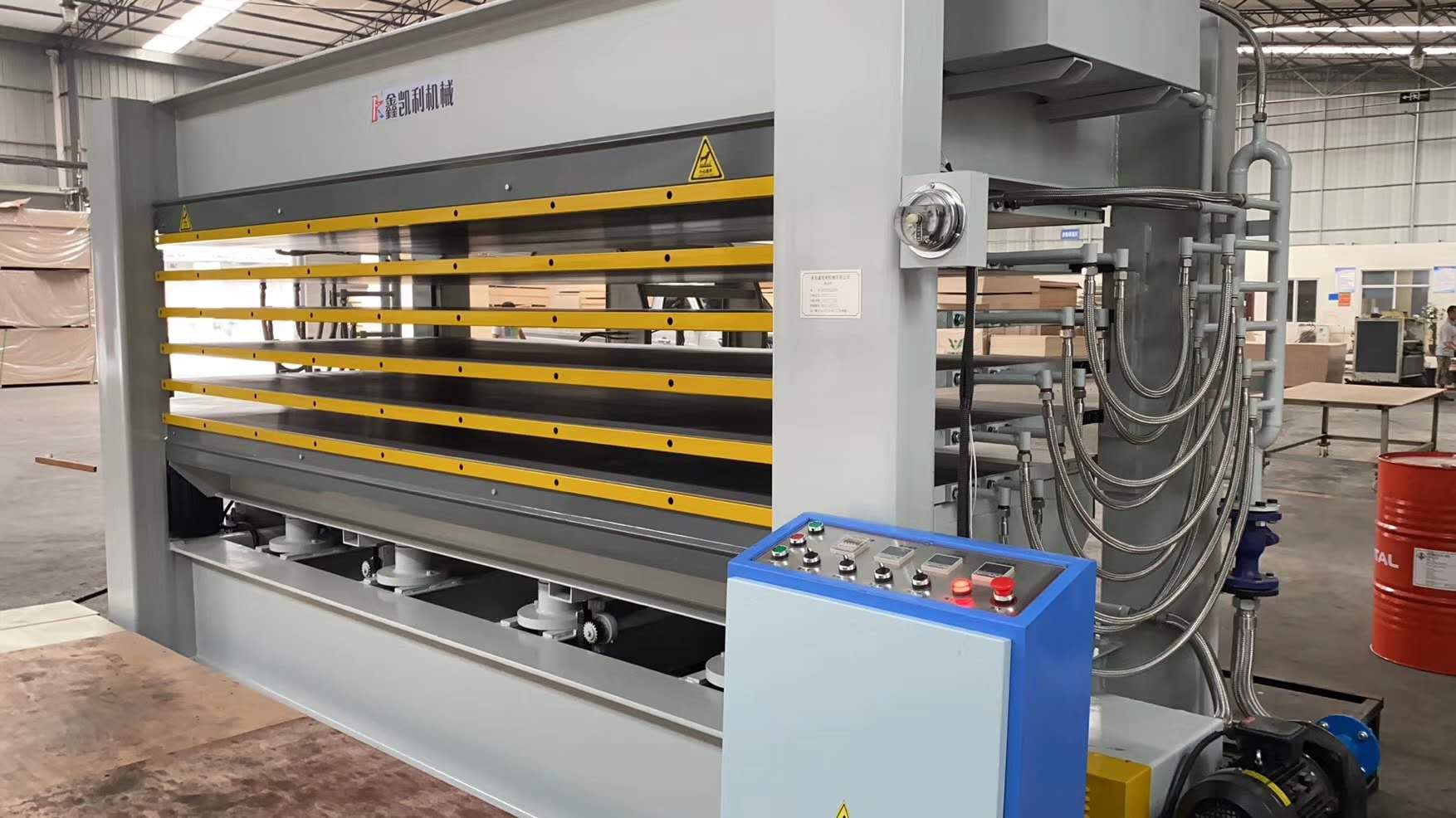

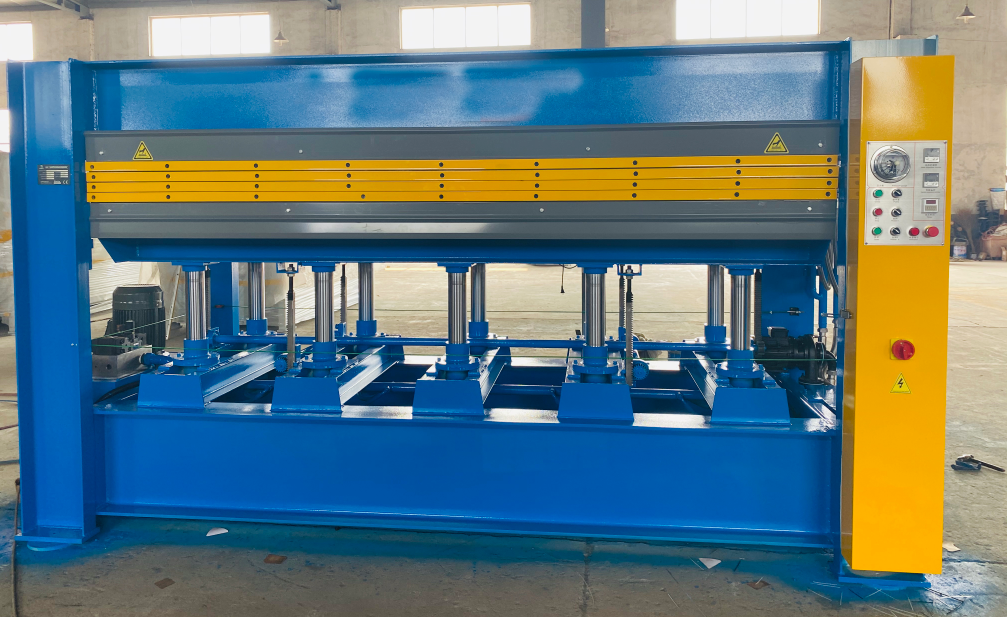

Machines in Users' Factory
–
–
–
–
–
