Product Description

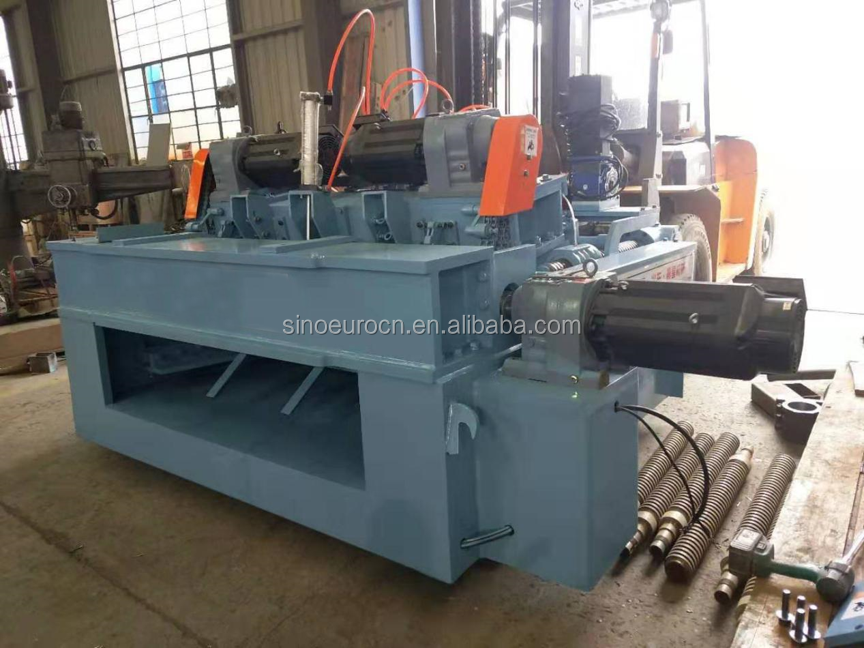

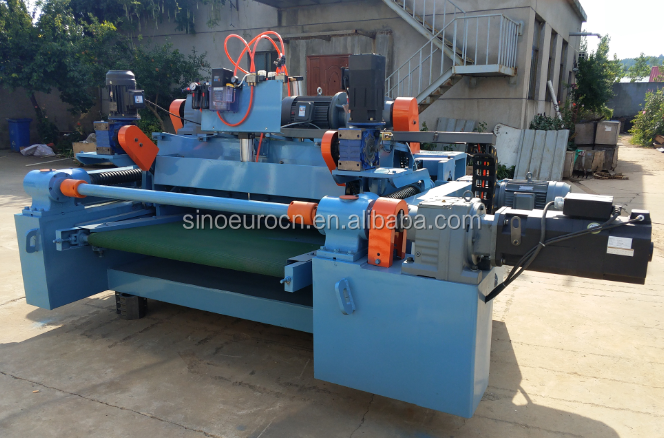

Core Veneer Peeling Lathe
30-80M/MIN Speed Adjustable Model
30-110M/MIN All Servo Speed Adjustable Model
|
30-80m/min Model
|
30-110m/min Model
|
|
|
Roller length
|
1500mm
|
1500mm
|
|
Opening
|
500mm
|
500mm
|
|
Remain logs diameter
|
28mm
|
24mm
|
|
Peel thickness
|
0.8-4mm
|
0.8-4mm
|
|
Cutting width
|
≥400mm
|
≥400mm
|
|
Peel speed
|
30-80m/min
|
30-110m/min
|
|
Single roller power
|
7.5kw*2 (Huali)
|
11kw*2 (servo motor)
|
|
Double roller power
|
7.5kw*2 (Huali)
|
11kw*2 (servo motor)
|
|
Feeding power
|
7.5kw (servo motor)
|
7.5kw(Servo motor)
|
|
Total power
|
40.5kw
|
56kw
|
|
Screw diameter
|
90mm
|
90mm
|
|
Control unit
|
Peeling Speed Adjustable System Closed Loop Servo Control
|
Peeling Speed Adjustable System Closed Loop Servo Control
|
|
Total weight
|
6000kg
|
7000kg
|
|
Overall dimension
|
4200*2300*1550mm
|
4200*2500*1200mm
|
Our Advantages

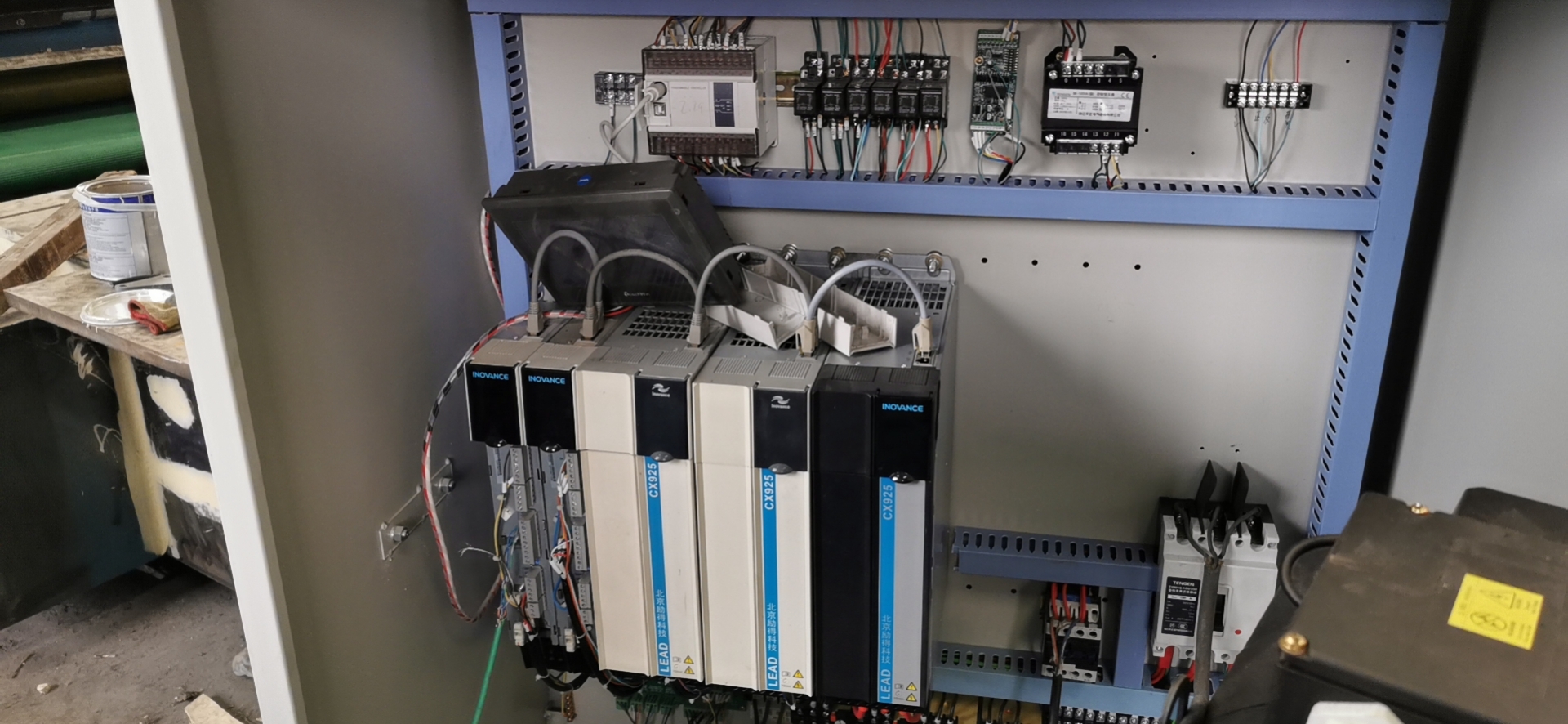

LEAD CONTROL SYSTEM
The CNC PLC control system is Lead system with driver or inverter, it is more stable, specially designed for our core veneer peeling lathe.
It can guarantee veener with good surface and even thickness in high peeling speed.

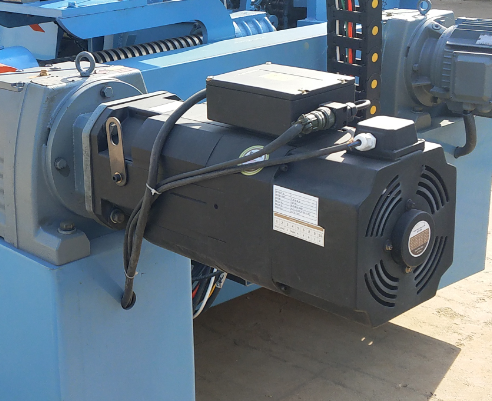

SERVO MOTOR
Our feeding motor and clipping motor adopts Futian Servo motor. It is better than other brand servo motor.
The accurate feeding will make veneer thickness more even, and clipper servo motor gives an accurate cutting width.

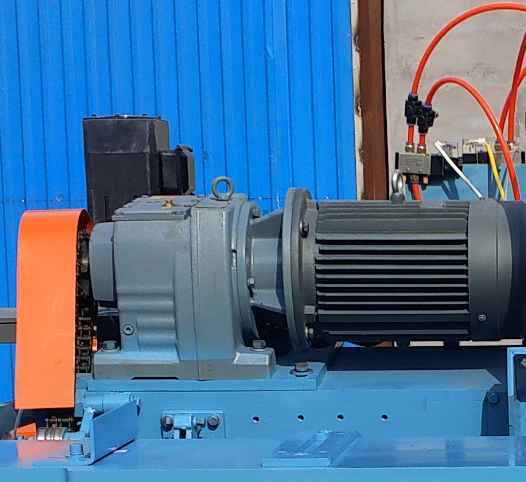

HUALI BRAND MOTOR
All normal motors are Huali brand, the best China motor brand. All reducer is Helical Gear type. It is more stable and long service life.

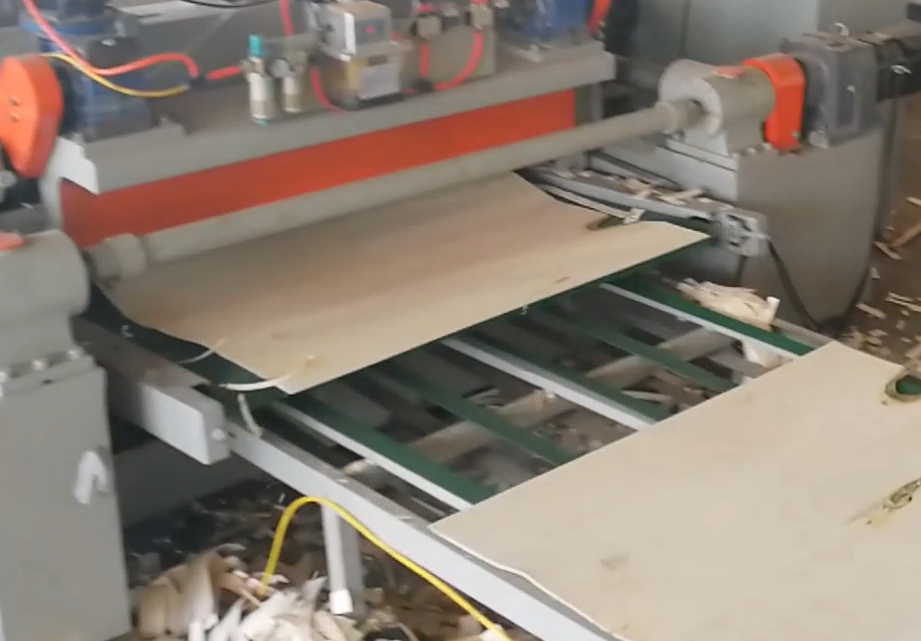

2 CUTTING WIDTH SHIFT IN ONE LOG
The cutting width can set 2 width and shift freely. And the cutting blade action is faster, it can save the veneer, no any waste of veneer.
SCREW FIXING FRAME
Whole machine frame is fixed by screw instead of welding. Welding will destroy steel inside structure, and result in transshape after several years.
But screw fixing frame can guarantee frame no out of shape.

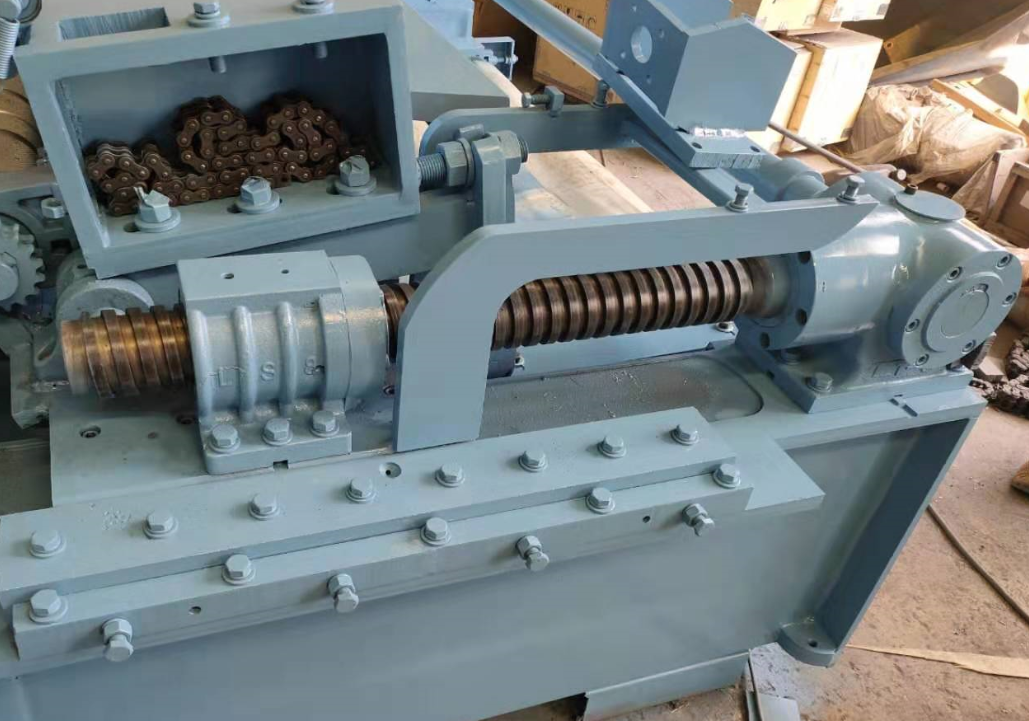

TAIWAN FEEDING SCREW
Taiwan high quality feeding screw, screw diameter is 90mm, much bigger than other factorys. Very accurate feeding, wear-resisting and long service life.
Matching machines

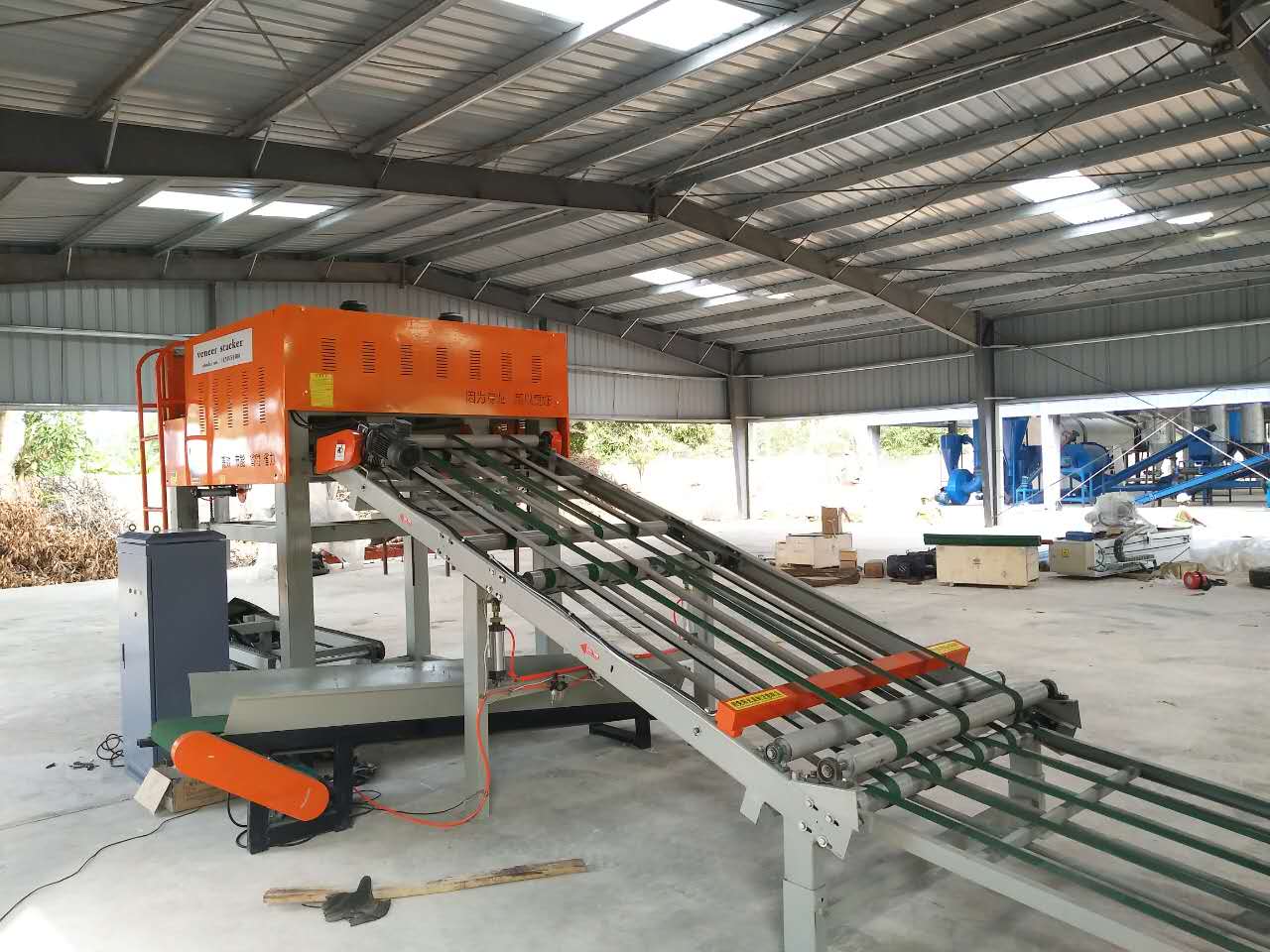

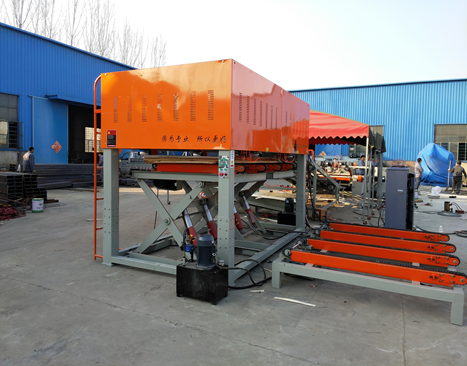

High Speed Vacuum Core Veneer Stacker Machine
|
Model
|
4*4FT Vacuum Stacker
|
4*8FT Vacuum Stacker
|
|
Veneer Length
|
660-1300mm
|
500-2600mm
|
|
Veneer Width
|
960-1270mm
|
960-1270mm
|
|
Veneer Thickness
|
0.5-4mm
|
0.5-4mm
|
|
Veneer Sorting Grade
|
1 grading
|
1 grade (4*8ft)/2 grade (4*4ft)
|
|
Stacking Height
|
1000mm
|
1000mm
|
|
Vacuum Absorb Motor
|
1.5KW*4PCS
|
2.2KW*6Pcs
|
|
Total Power
|
23.2KW
|
32KW
|
|
Lifting Mode
|
Chain lifting
|
Hydraulic lift table
|
|
Total Weight
|
2400kgs
|
4300kgs
|
|
Overall Dimension
|
8000*2040*2750mm
|
8700*2000*2750mm
|

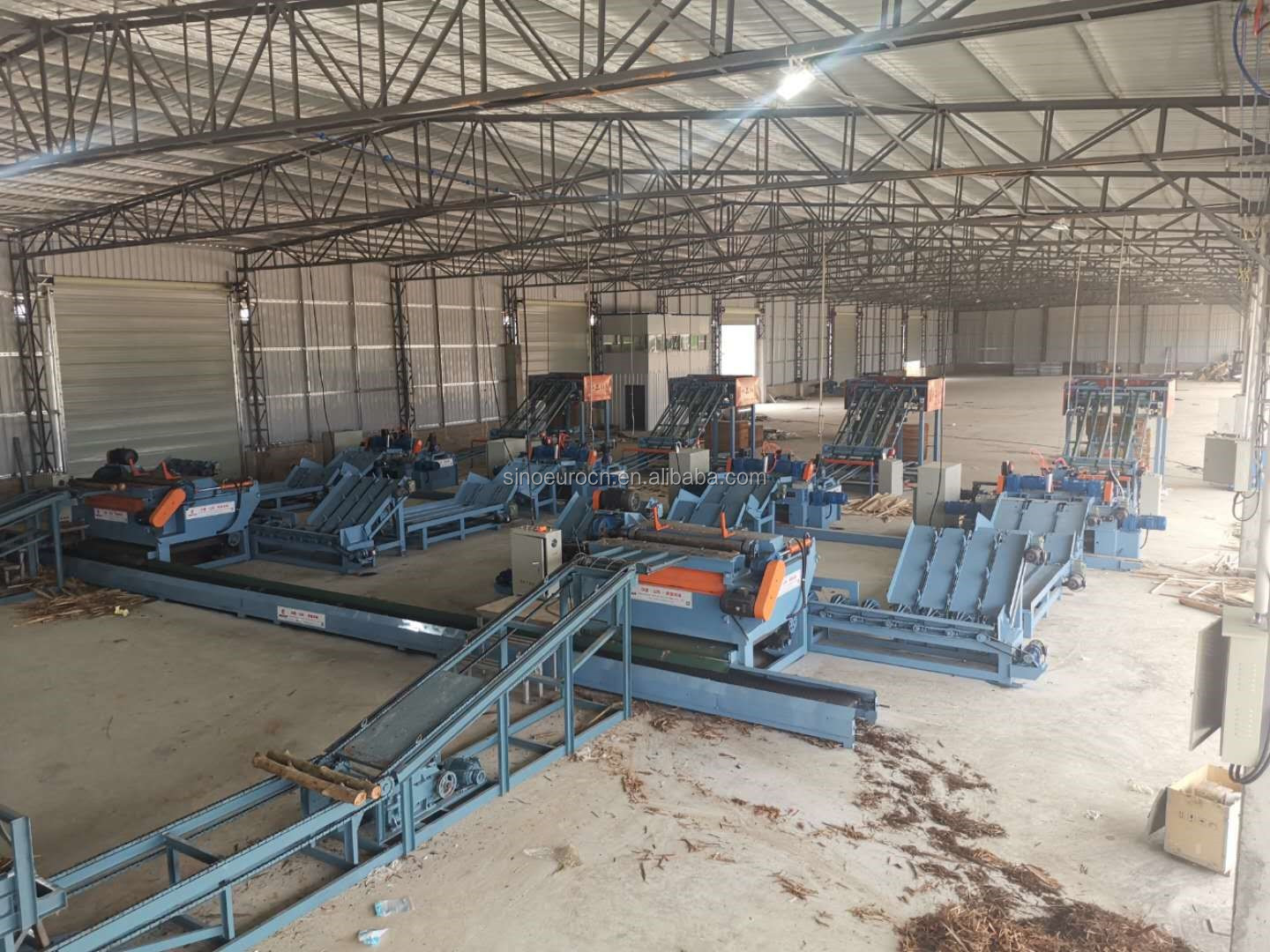

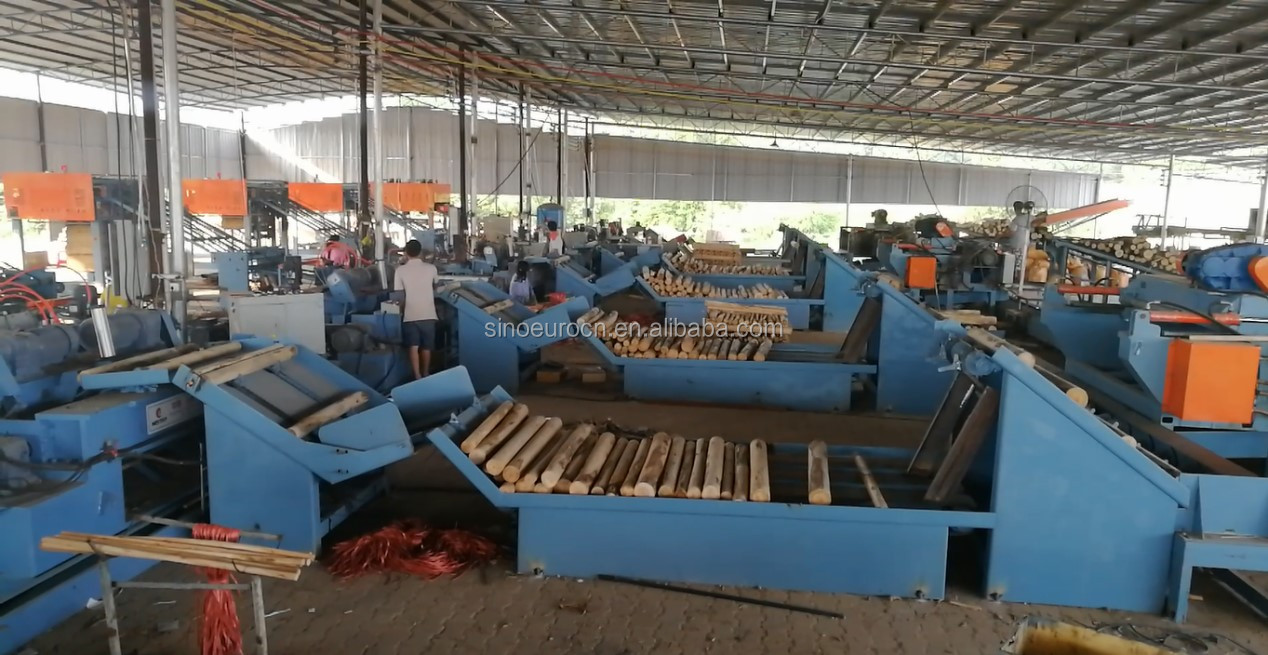

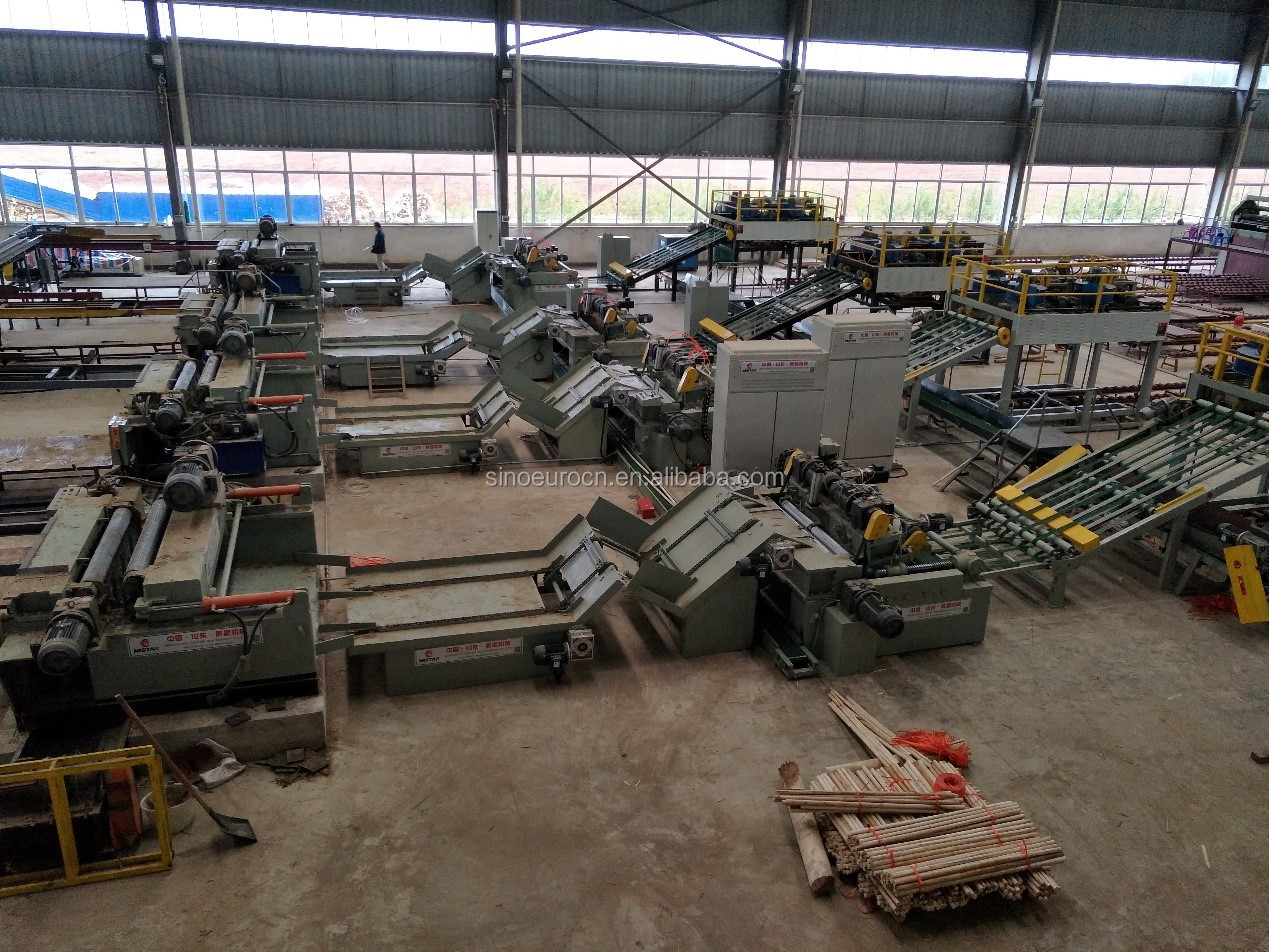

Our factory
Company Introduction

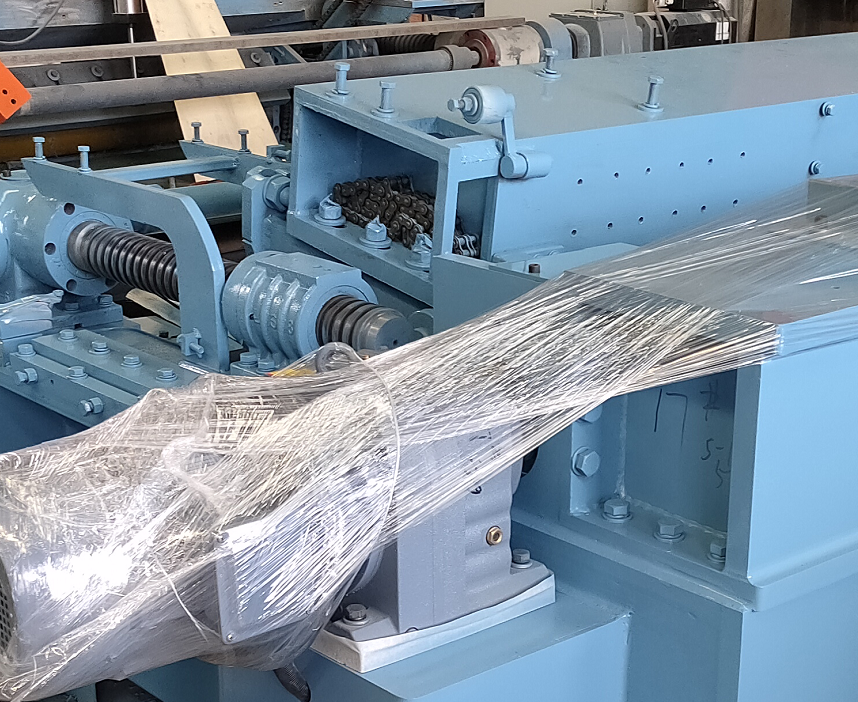

Packing & Shipping
