core veneer dryer machine

Hollow veneer dryer machine is main equipment for plywood production in drying section. Square tube type dryer is simple veneer dryer equipment. It is mainly usec to dry the core veneer to solve high moisture content problem after peeling. Its hot platen is produced by the seamless steel pipe.

Low cost, low investment.

Installed dimension is small, it occupied less area of factory.

The heating medium is steam orv thermal oil, which can consume the factory’s original thermal energy effectively.

Good drying performance.

Core Veneer Dryer Machine
core veneer dryer machine

Can be customized !! (click)
Please contact us

Specification
Name and Model
15 Layers 4*8FT Solid Hot Platen Press Dryer
12 Layers 4*8FT Solid Hot Platen Press Dryer
Composite frame
Assembled
Assembled
Normal pressure
60 tons
60 tons
Board feeding direction
Transverse
Transverse
Size of Hot platen
2800*1370* 42mm 2 in 2 out with groove (Diamond groove Diamond spacing40*40mm, depth:1mm, width:1.5mm)
2800*1370* 42mm 2 in 2 out with groove (Diamond groove Diamond spacing40*40mm, depth:1mm, width:1.5mm)
Platen Material
Q235 with small groove 1.5mm depth
Q235 with small groove 1.5mm depth
Oil Cylinders
ø100*1050mm*4pcs
ø100*840mm*4pcs
Layers
15 openings
12 openings
Spacing of layer
70mm
70mm
Hot platen
16 pcs
13 pcs
Colum width
350mm
350mm
Pump
Vane pump
Vane pump
Total power
15 KW, 380V 50Hz
15 KW, 380V 50Hz
Upper and bottom beam
400mm;400mm
400mm;400mm
Walking beam (middle beam)
300mm(Detachable frame)
300mm(Detachable frame)
Main frame steel thickness
25mm
25mm
Simultaneously closing system
with synchronizer 2 groups
with synchronizer 2 groups
Hydraulic system
Automatic hydraulic slience power pack
Automatic hydraulic slience power pack
Closing time
about 15s
about 12s
Control cabinet
Vertical electric control cabinet , PLC control + touch screen
Vertical electric control cabinet , PLC control + touch screen
Touch screen timer
Timer can be set different between each pressing time, 6 depressurization and tidal discharge
Timer can be set different between each pressing time, 6 depressurization and tidal discharge
Total weight
About 28 Tons
About 23.5 Tons
Overall dimension
3550*1370*3300mm
3550*1370*3000mm
Product Description

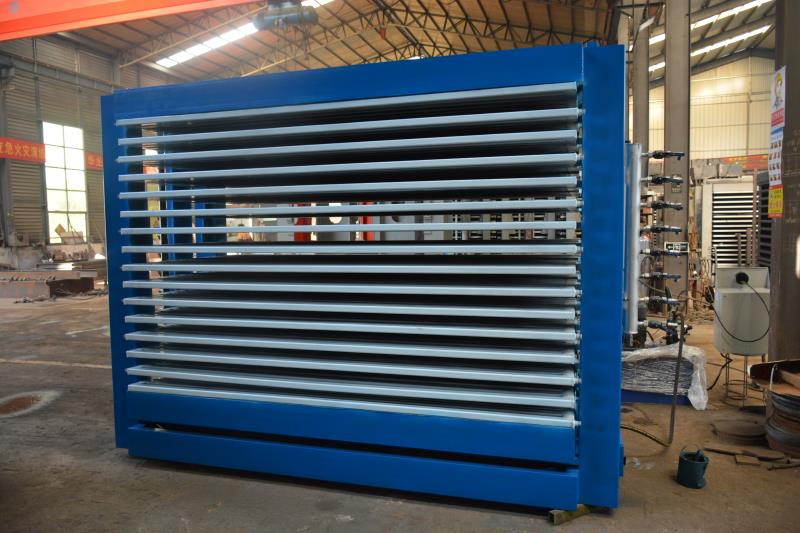

plywood core veneer dryer
Veneer dryer machine is mainly used to dry the core veneer to solve high moisture content problem after peeling.
The machine can dry veneers of various thickness and moisture contents. Any wood spices can be dried in this machine.

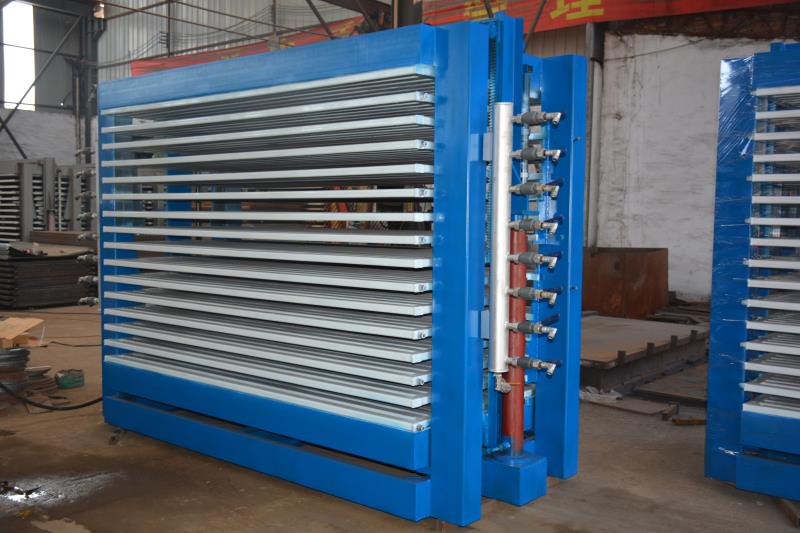

plywood veneer dryer

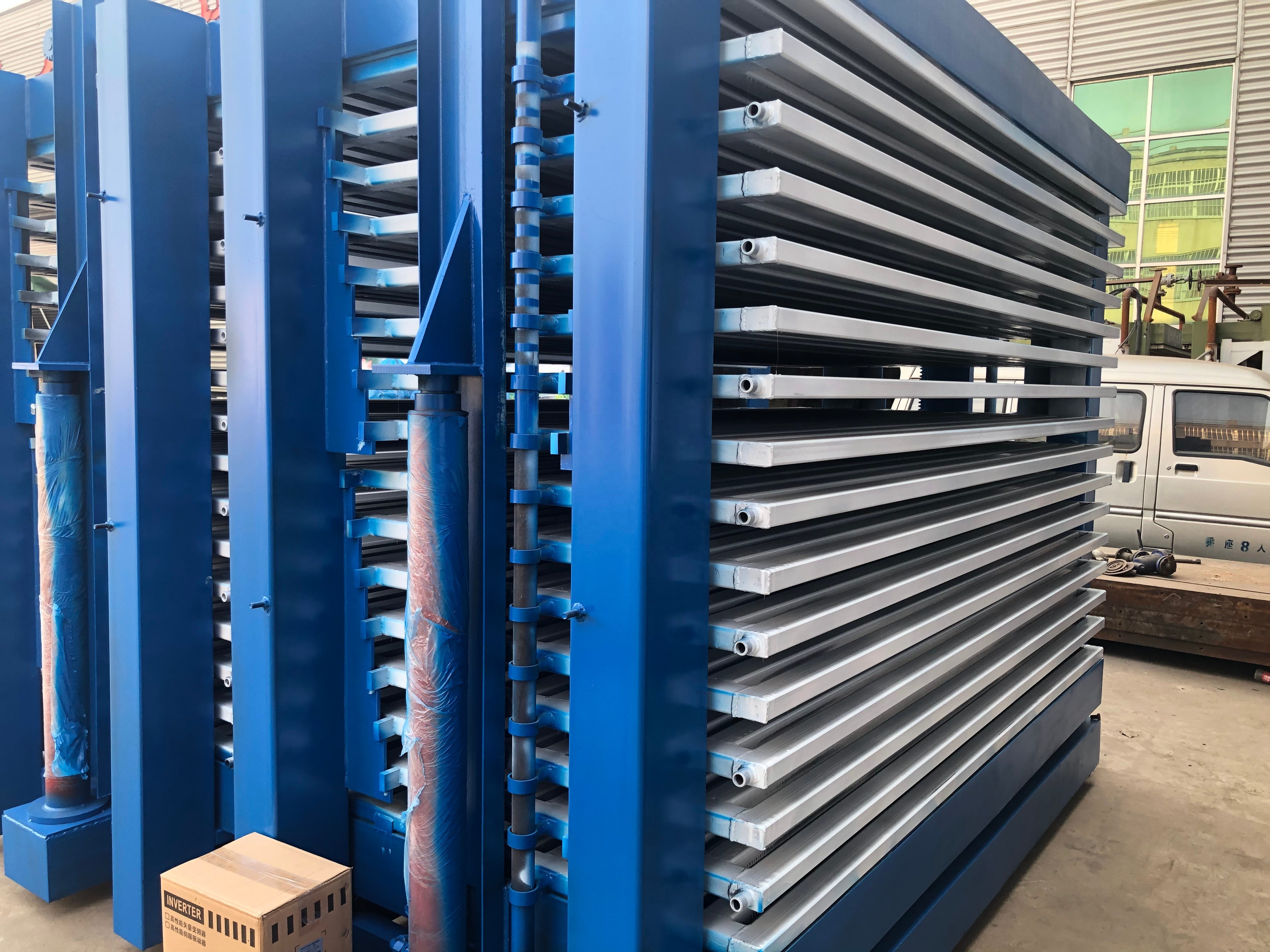

small capacity plywood veneer dryer

The heating medium is steam or thermal oil, which can consume the factory’s original thermal energy effectively.

Good drying performance, at least 0.5-1.0 CBM per cycle.

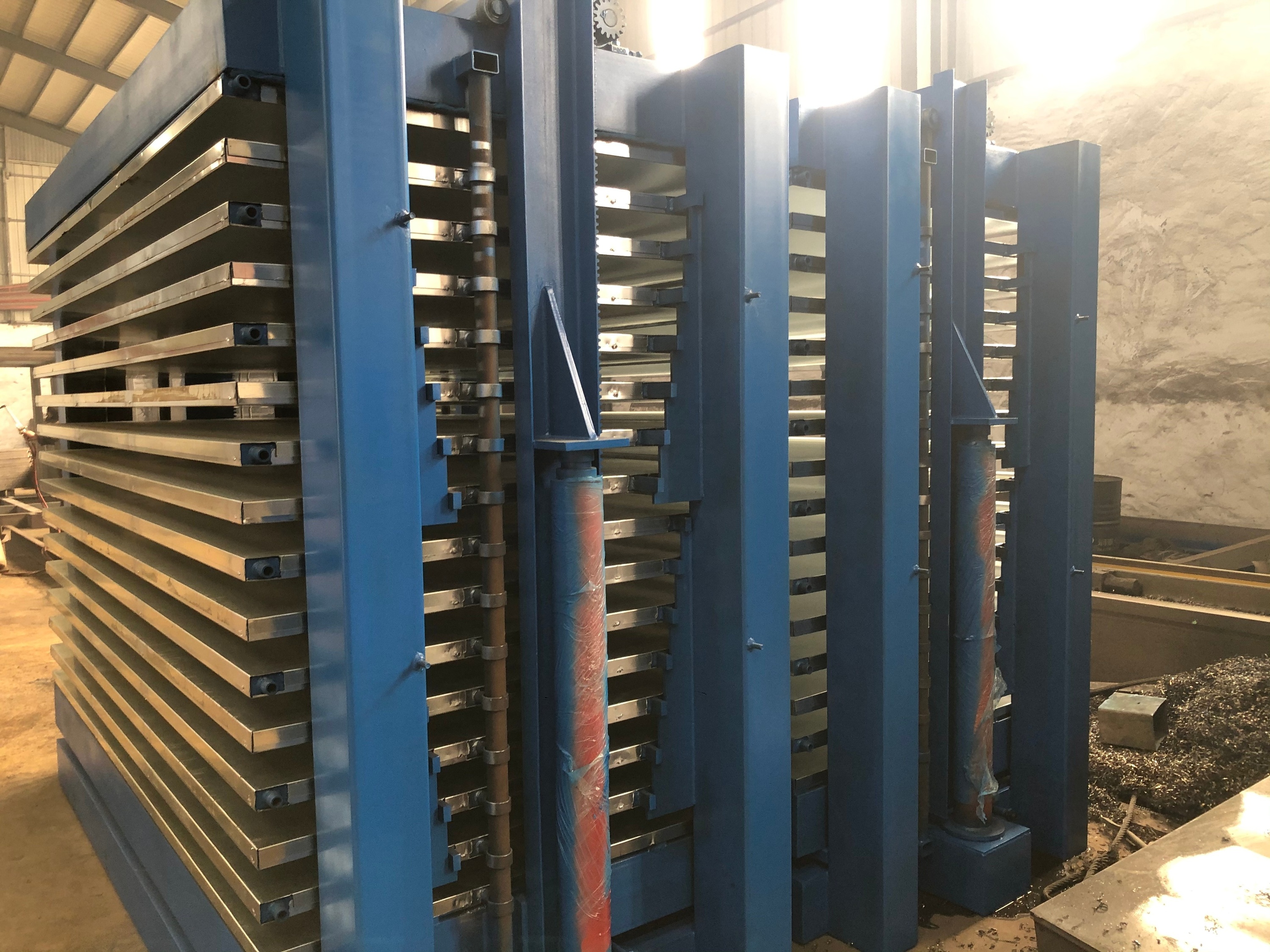

small capacity plywood veneer dryer

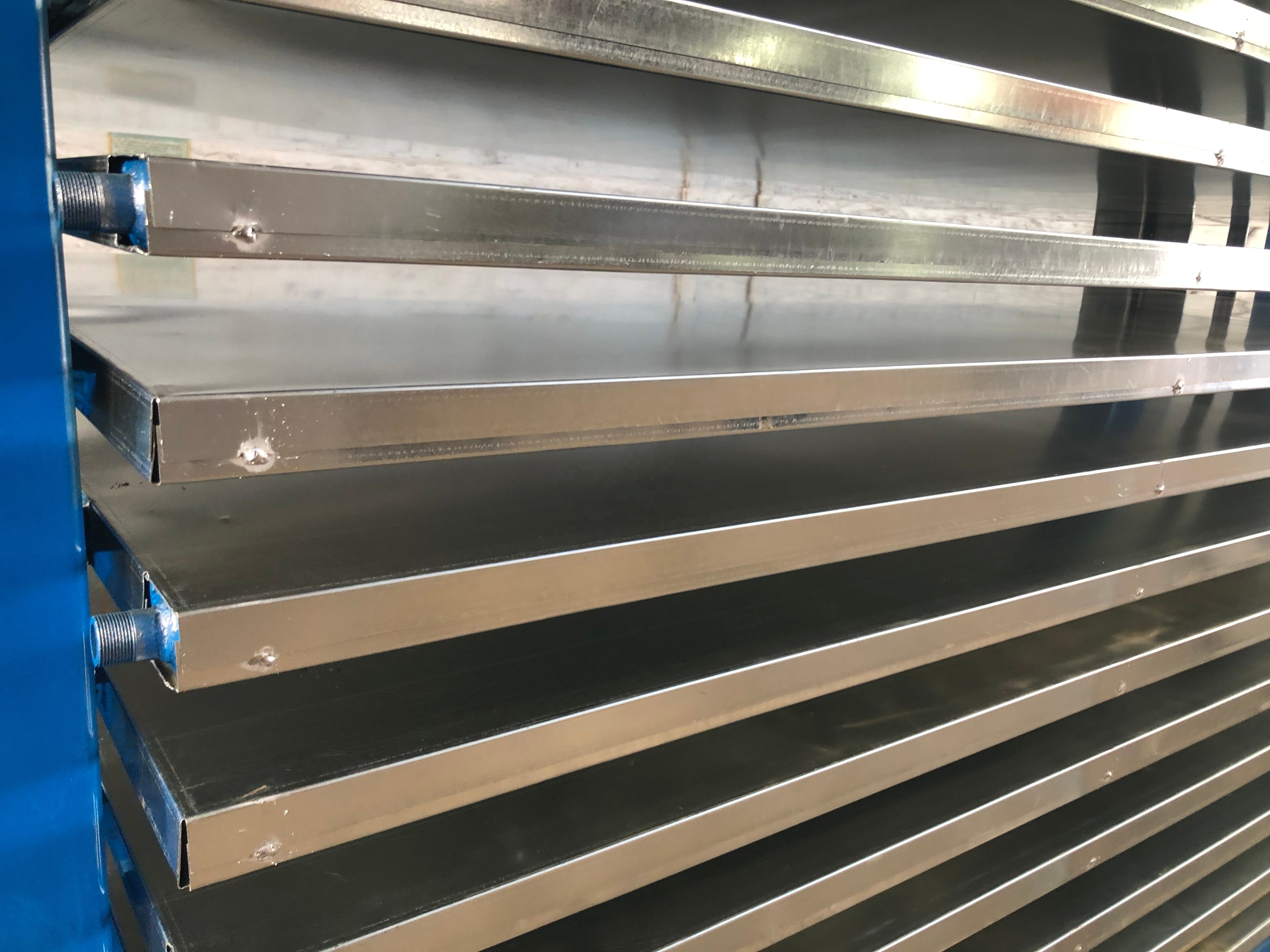

Its hot plate is produced by the seamless steel pipe. Good performance for air-tightness.




CNC control system and silent hydraulic station.

Labor saving and time saving.

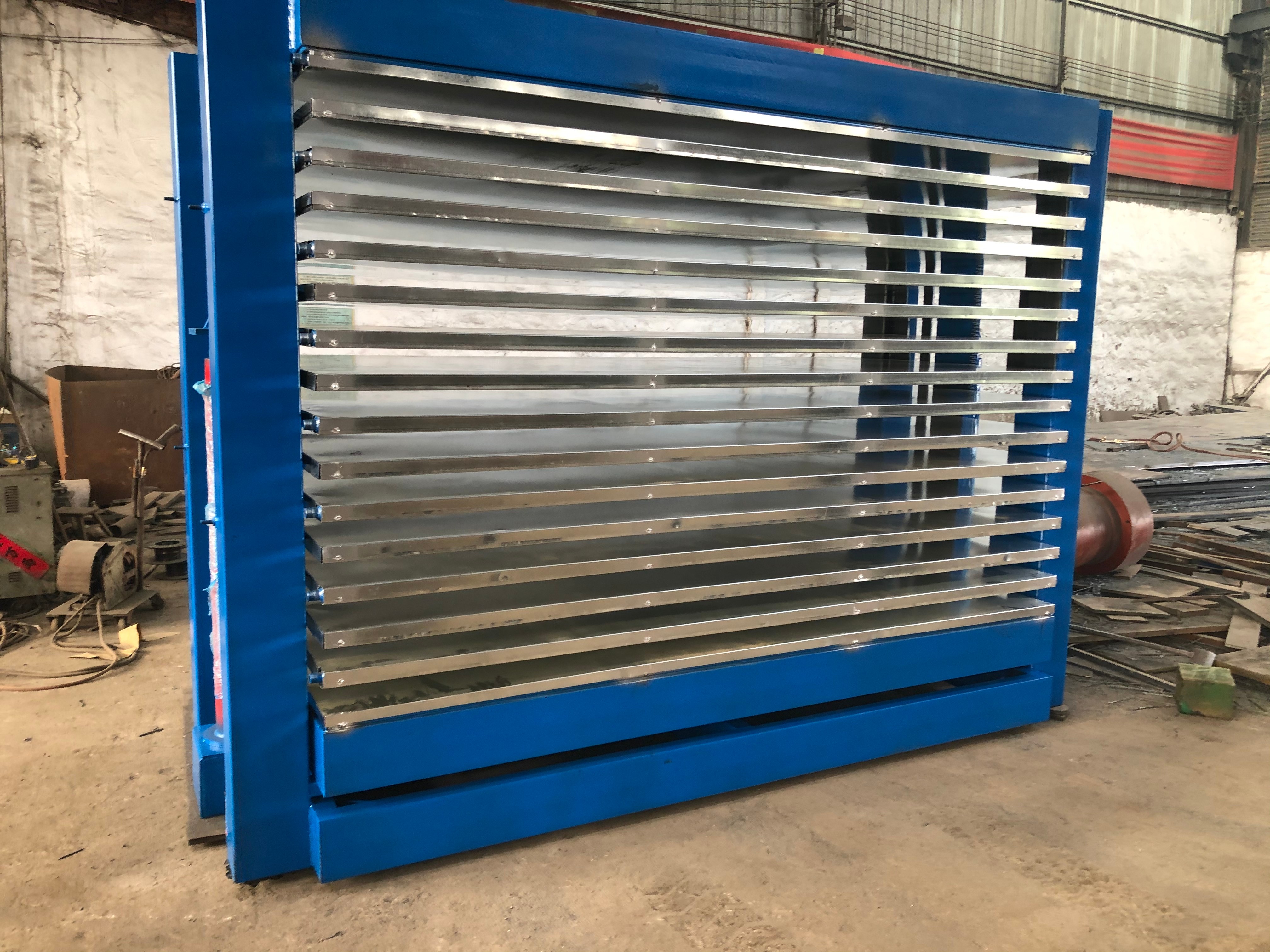

small capacity plywood core veneer dryer with hydraulic system
Low cost, low investment. Installed dimension is small, it occupied less area of factory.
small capacity plywood core veneer dryer



For more product





Roller type veneer dryer machine

It is suitable for the production process that cutting firstly then drying. Continuous veneer drying equipment, high efficiency and large capacity.
The working layers quantity can be designed according to client’s requirement.
veneer roller dryer
Breathing type veneer dryer

It applies for core veneer’s lamination, drying and leveling. The core veneer after drying will be with high flatness and sufficient shrinkage.

There is simultaneous opening and closing system and dry the veneer uniformly.
veneer drying machine dryer

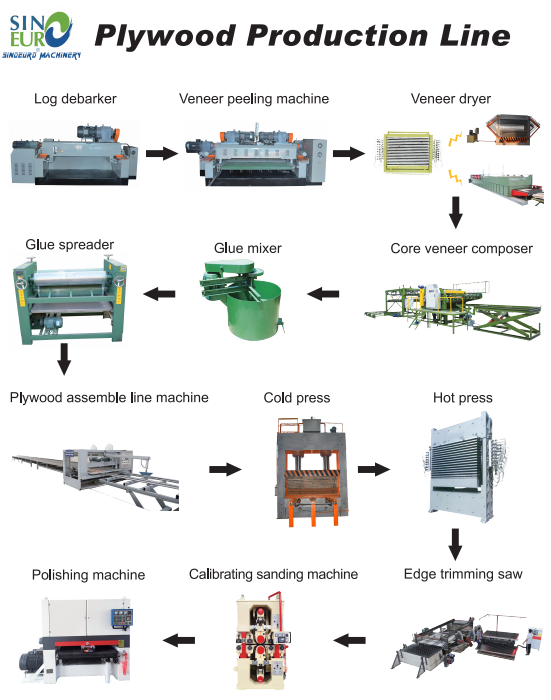

We can supply complete production line equipment, including rotary cutters, peelers, hot presses, dryers, etc. If you have any needs, you can also contact us !


plywood making machine plywood machines production line
