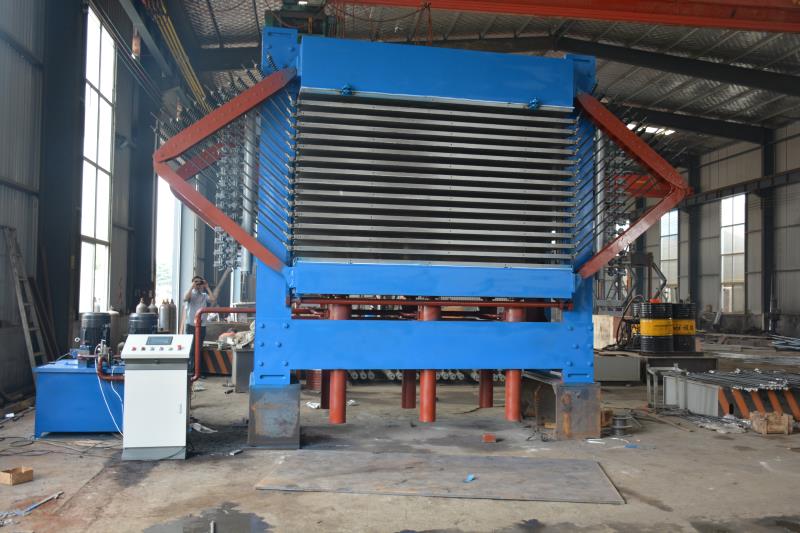

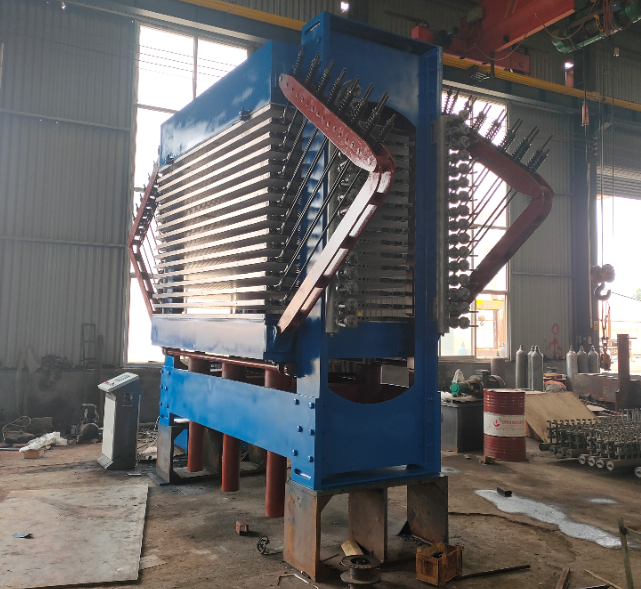

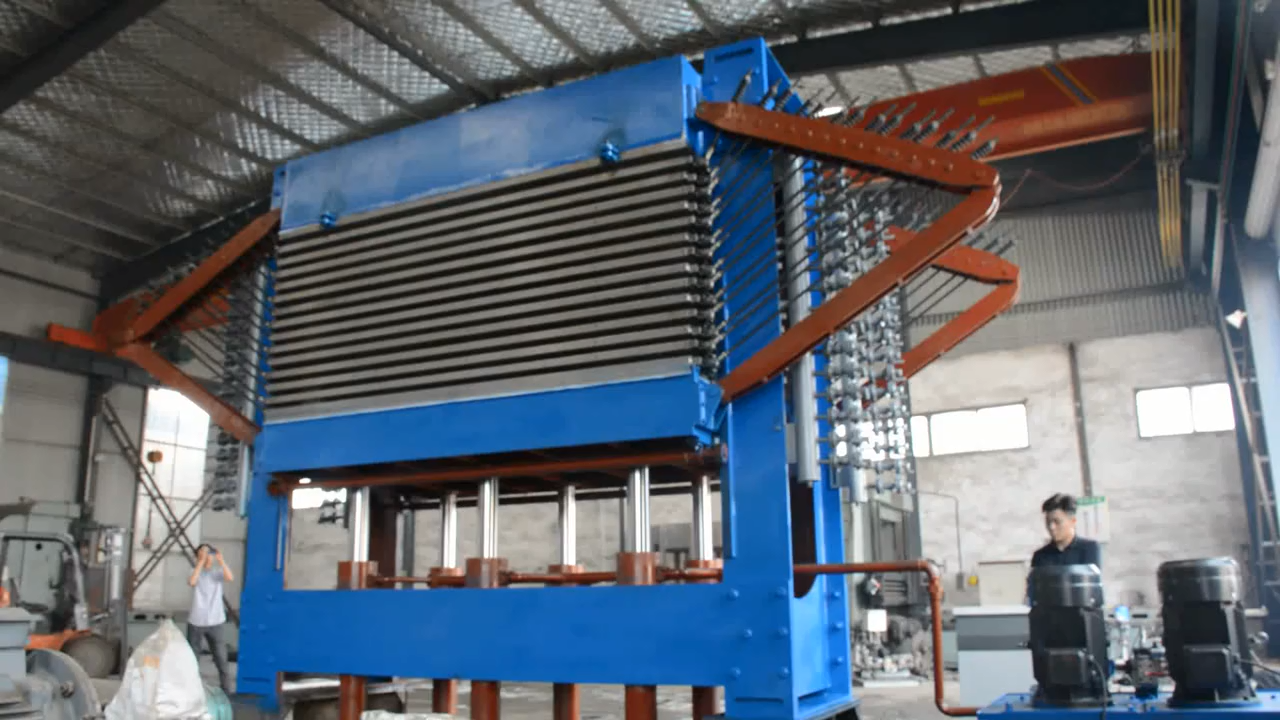

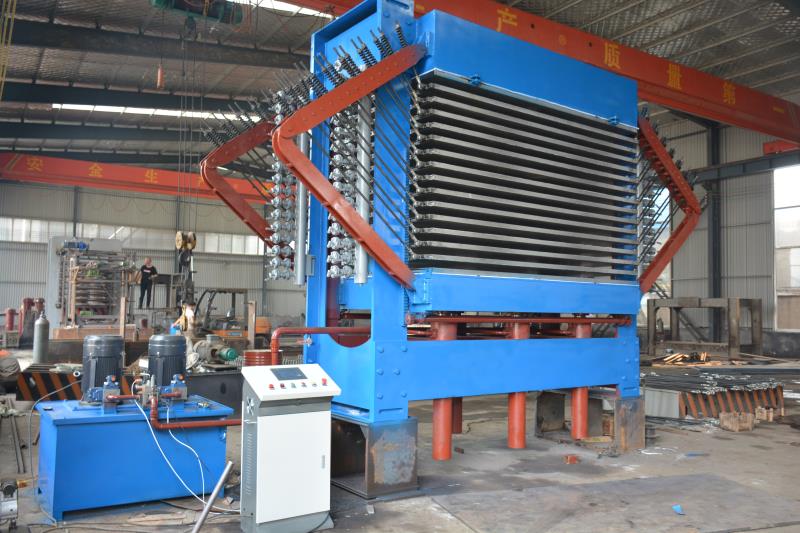

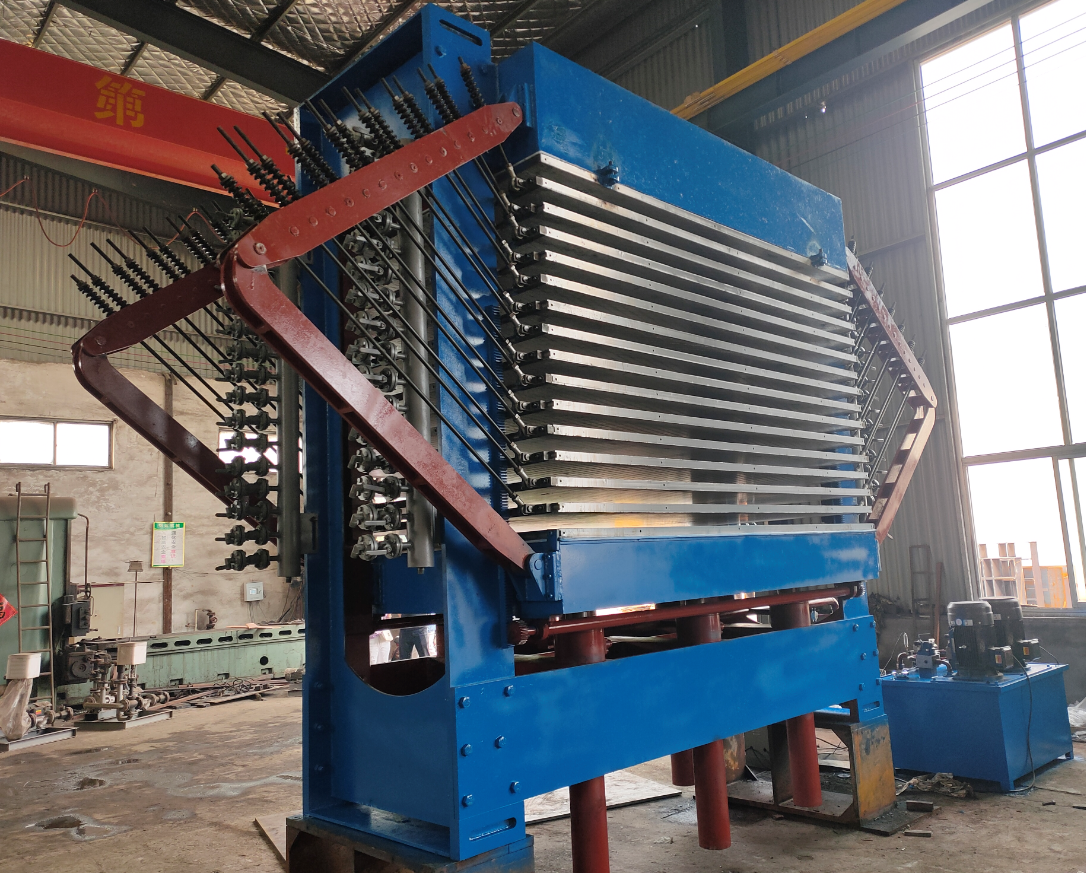

Heavy Duty Breathing Veneer Dryer Machine
Specification
|
Name and Model
|
15 Layers 4*8FT Solid Hot Platen Press Dryer
|
12 Layers 4*8FT Solid Hot Platen Press Dryer
|
|
Normal pressure
|
60Tons
|
60Tons
|
|
Platen Material
|
Q235 with small groove 1.5mm depth
|
Q235 with small groove 1.5mm depth
|
|
Size of Hot platen
|

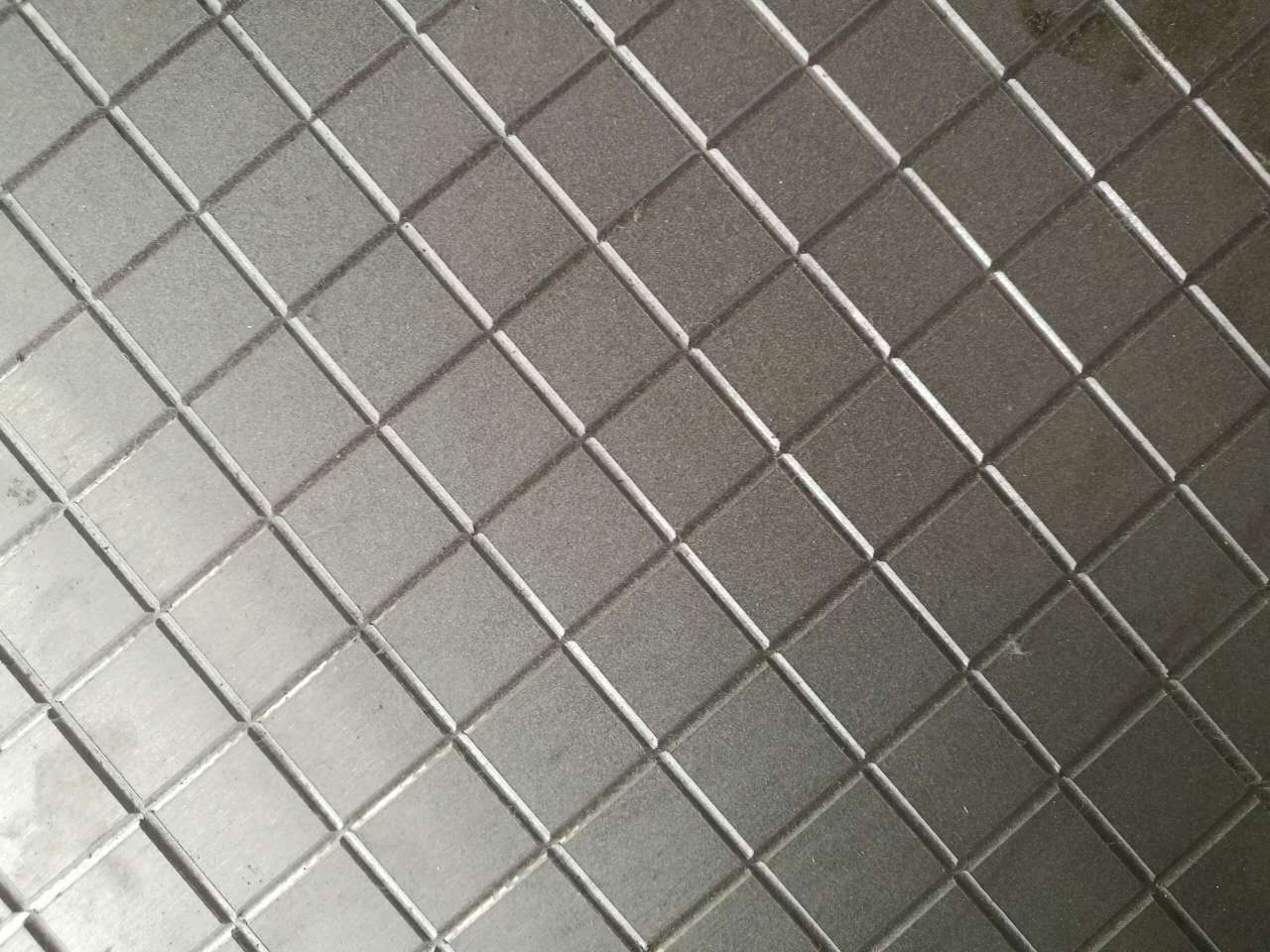

2800*1370* 42mm 2 in 2 out with groove (Diamond groove Diamond spacing40*40mm, depth:1mm, width:1.5mm)
|
2800*1370* 42mm 2 in 2 out with groove (Diamond groove Diamond spacing40*40mm, depth:1mm, width:1.5mm)
|
|
Oil Cylinders
|
ø100*1050mm*4pcs
|
ø100*840mm*4pcs
|
|
Total power
|
15 KW, 380V 50Hz
|
15 KW, 380V 50Hz
|
|
Layers
|
15 openings
|
12 openings
|
|
Spacing of layer
|
70mm
|
70 mm
|
|
Hot platen
|
16 pcs
|
13 pcs
|
|
Colum width
|
350 mm
|
350 mm
|
|
Upper and bottom beam
|
400mm;400mm
|
400mm;400mm
|
|
Walking beam (middle beam)
|
300mm(Detachable frame)
|
300mm(Detachable frame)
|
|
Main frame steel thickness
|
25mm
|
25mm
|
|
Closing time
|
about 15s
|
about 12s
|
|
Control cabinet
|
Vertical electric control cabinet , PLC control + touch screen
|
Vertical electric control cabinet , PLC control + touch screen
|
|
Total weight
|
About 28 Tons
|
About 23.5 Tons
|
|
Overall dimension
|
3550*1370*3300mm
|
3550*1370*3000mm
|
Product Description
The core veneer after drying will be with high flatness and sufficient shrinkage.

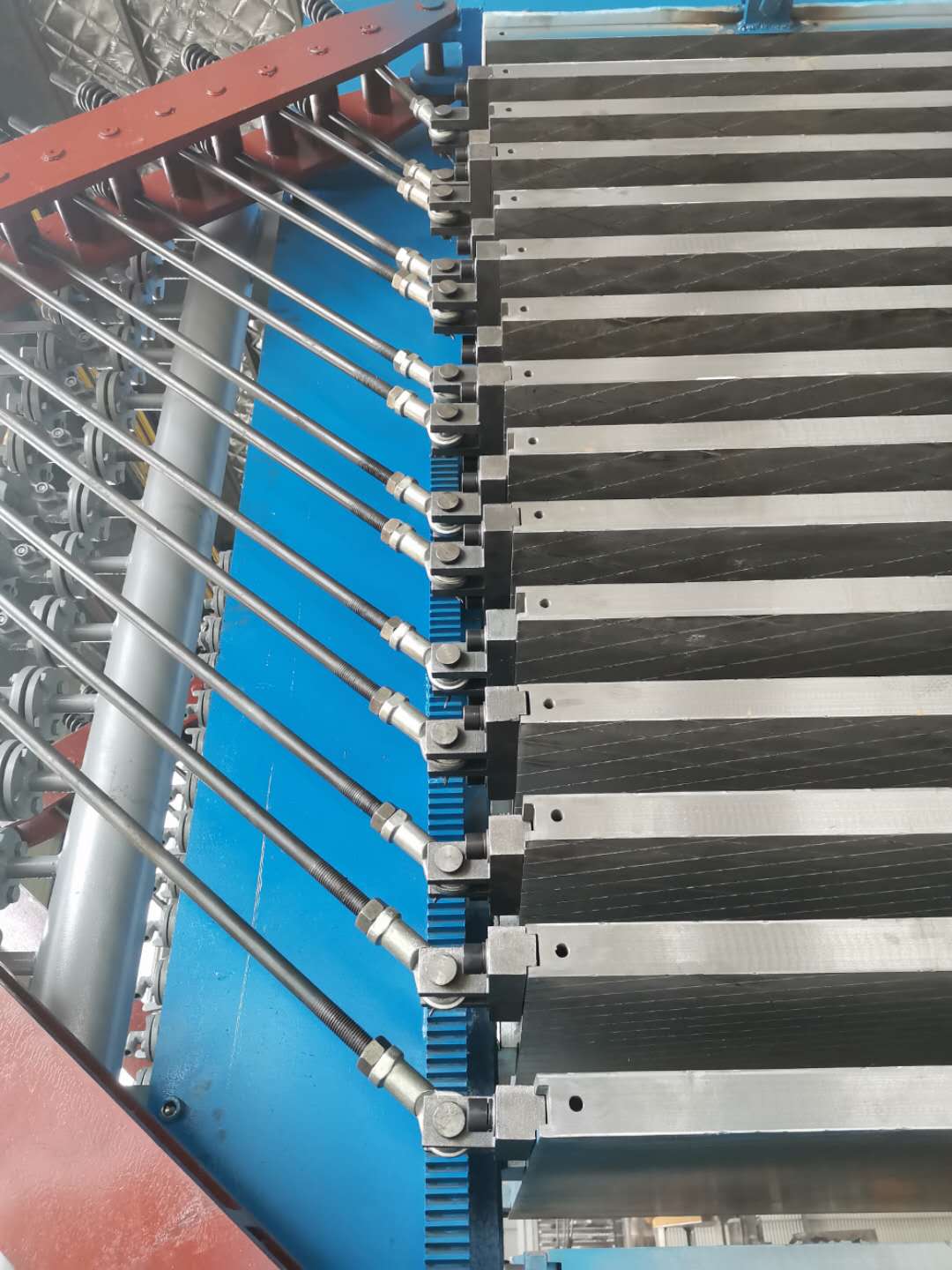

There is simultaneous opening and closing system and dry the veneer uniformly.
For more product
Square tube veneer dryer machine
Its length is large, so occupies large area.
We can supply complete production line equipment, including rotary cutters, peelers, hot presses, dryers, etc. If you have any needs, you can also contact us !
