core veneer composer machine

Veneer after drying may have different length and thickness, and the shapes may get irregular. This machine can detect the width, thickness, cavities of the panels, and have them rimmed, glued, spliced, cut to length and stacked automatically. With this machine, customized board of different sizes can be spliced.

This machine is mainly used for the production of plywood,LVL, floor base material, furniture board,constuction plywood…etc.Using this machine saves lots of core finishing worker, improves the quality of products and saves labor costs.

Core veneer Composer Machine Application

Core veneer composer machine is suitable for core joining together in plywood production line.

It can work different length sizes of core veneer with high strength thread and hot melt adhesive connection as one whole body.

Then facilitate the subsequent stages of production of plywood line. The whole process can be operated by one worker, it is time-saving and efficient

Product Description

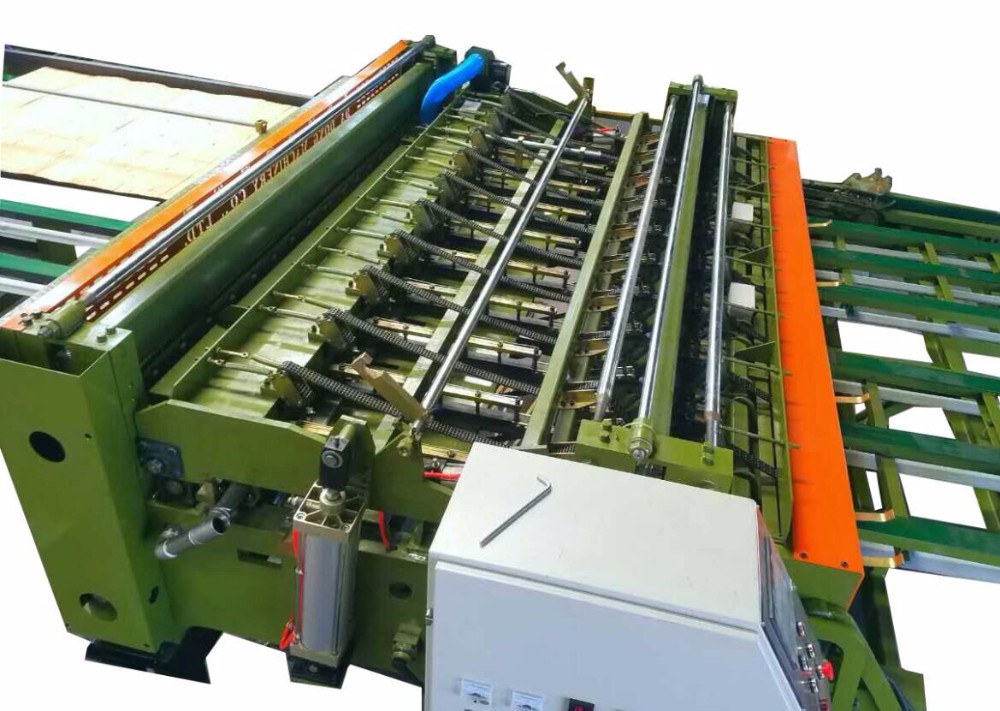

core veneer composer machine
core veneer composer machine
Specification
Mark
Dadong
Model
DCBJ-9B (M)
Driver
All Servo Motor
Fuselage structure
Integral steel plate cutting
Conveying speed
0-35m/min
Capacity
300pcs/h
Working veneer width
968-1270 mm (3-4ft)
Cutting veneer length
1220-2560 mm (4ft, 5ft, 6ft, 7ft, 8ft)
Working veneer thickness
1.2-3.6 mm
Length of knife
1400 mm
Length of felt-board machine
3600mm
Height of felt-board machine
2500mm
Width of felt-board machine
2600mm
Length of stacking machine
4000mm
Height of stacking machine
2500mm
Width of stacking machine
2200mm
PLC
Taiwan Delta
Output
300-350pcs/hour (4x8ft)
Weight
5500kg

Detailed Images
Integral steel plate cutting frame, precise structure connection, long service life.

Taiwan Delta Brand or Germany Siemens Brand Servo motor.

Taiwan Delta Brand PLC

Germany FESTO Brand glue rotary cylinder, high-quality glue

Main Features

1. PLC computer control, one worker operation, automatic process, labor cost saving
2. High precision detecting, cutting size in minimum.
3. Servo control makes it precise location and effectively control the overlap seam.
4. Use dedicated high-strength heat melts glue thread to stop the veneer breaking.
5. We use international famous brand parts such as Taiwan Delta, Germany Siemens
