Cold press machine

Plywood pre-press machine is also called plywood cold press machine. It is divided into upper cylinder pre-press machine and bottom cylinder pre-press machine. Before board slab comes into the plywood hot press, it need to be pre-pressed by plywood cold press machine. The veneers are boned together
intially, the pre-press production method can shorten hot pressing cycle time and improve the plywood quality. The board slab is easy for delivery and reduce the distance between hot platens.

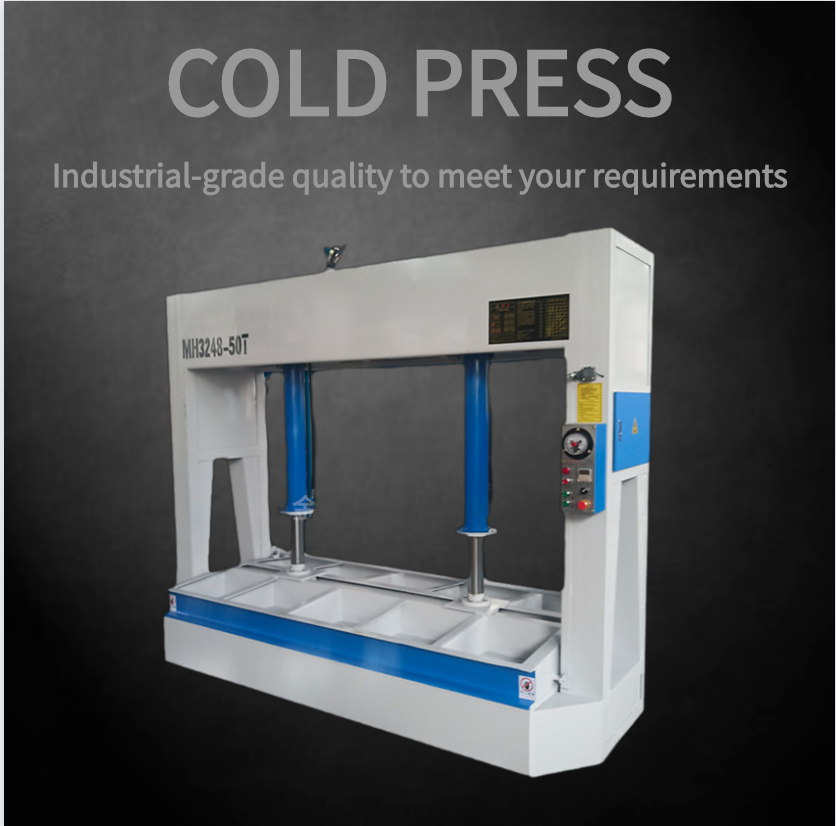

Cold press machine for plywood production

Product Description
Cold press machine is also called plywood pre-press machine. It is divided into upper cylinder pre-press machine and bottom cylinder pre-press machine.
Before board slab comes into the plywood hot press, it need to be pre-pressed by plywood cold press machine.
plywood cold press machine
The veneers are boned together intially, the pre-press production method can shorten hot pressing cycle time and improve the plywood quality.
The board slab is easy for delivery and reduce the distance between hot platens.
plywood pre-press machine
plywood pre-press machine
Product Usage
Specification
item
value
Place of Origin
China
Condition
New
Type
Cold Press Machine
Brand Name
Sinoeuro
Voltage
380v, 440v
Dimension(L*W*H)
2950*1250*2550mm
Certification
CE,ISO
Weight (KG)
50000kg
Applicable Industries
woodwrking machinery
Warranty
1 Year
Online support
Key Selling Points
Automatic
After Warranty Service
Video technical support, Online support
Local Service Location
Turkey, Italy, France, Philippines, Indonesia, Pakistan, India, Russia, Thailand, South Korea, Algeria, South Africa, Ukraine
Showroom Location
Egypt, Canada, Turkey, United States, France, Germany, Philippines, Pakistan, India, Russia, South Korea, Algeria, South Africa, Tajikistan, Japan, Australia
Marketing Type
Ordinary Product
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Warranty of core components
1 Year
Core Components
Bearing, Motor, Pump, Gear, PLC, Gearbox, Pressure vessel, Engine
Model NO
MH3248-50T
Work table size
2500*1250mm
Max pressure
50T
Stoke
1300mm
Table plate thickness
14mm
Max.boarding working thickness
1290mm
Woking speed
1800mm/min
Cylinder
125MM*2pcs
Power of hydrualic punp
4kw
Total weight
1950Kg
Packing & Delivery
Company Profile
plywood machine manufacturer
SINOEURO is a manufacturer of wood working machinery with well-equipped testing facilities and strong technical force. We are the leading manufacturer of woodworking machinery specialized in wood based panel production line for more than 20 years.We offer you qualified products and service with a complete equipment solutions. We can offer you not only a complete equipment solutions to your plant but also good technology service. Engineers available to service machinery overseas and after-sales service provided in our company.
