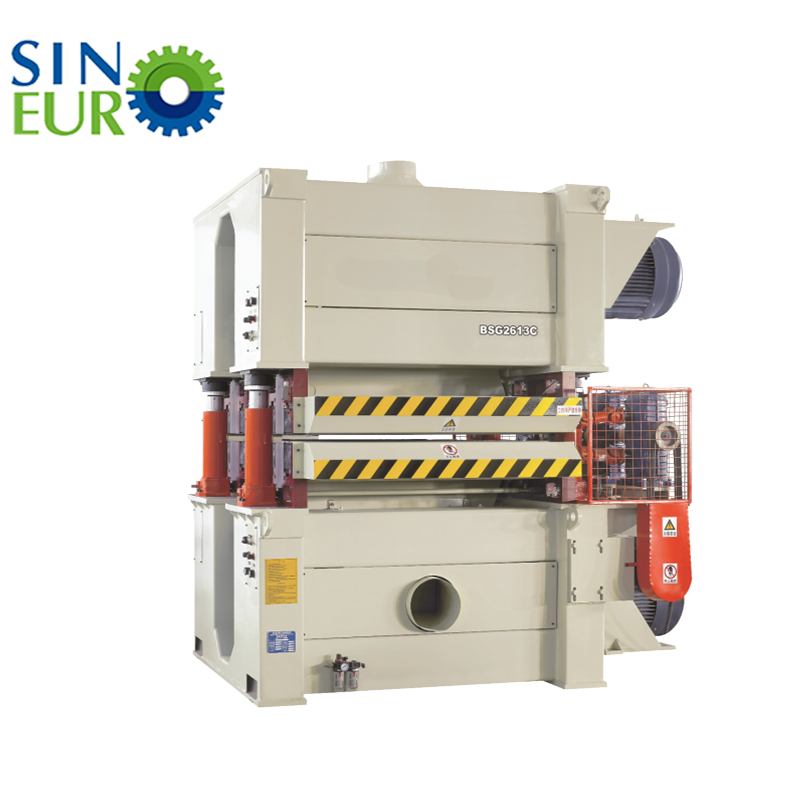

Calibrating and sanding machine

The machine is the calibration sander , suitable for wood panels, block board, cement fiberboard, insulation panels, ceramic fiber , glass fiber, wall panels, wood products and other artifacts.

Product Description

Calibrating and sanding machine



Calibrating and sanding machine

Specification
Model
BSG2313R-R-R
BSG2113R-R
Working width
≤1300mm
≤1300mm
Working thickness
0-100mm
0-100mm
Working length
≥750mm
≥1000mm
Working precision
±0.08mm
±0.1mm
Abrasive belt speed
22.5m/s
22.5m/s
Abrasive belt size P*W
2620*1320mm
2620*1320mm
Auto-feeding system: frequency
15-50m/min (adjustable)
5-30m/min (adjustable)
Motor for 3M non-woven roller
4KW (optional)
Motor for abrasive belt
55KW+45KW+37KW (optional)
55KW+45KW (optional)
Total power
150KW
116KW
Working air pressure
0.55Mpa
0.5-0.8Mpa
Air consumption
1.2cbm/min
1cbm/min
Speed of dust-collecting
6-45m/s
5-30m/s
Volume of dust-collecting
28000cbm/h
18000cbm/h
Overall dimension
3100*2845*2500mm
2900*2820*2500mm
Net weight
12000kg
10000kg




BSG Model Calibrating And sanding Machine Advantages

1.Adopting foundry frame, the sanding units can not be distorted and have good effect of vibration and absorption..

2.Fault display makes maintenance and repair easy. When fault happens, the machine will be powered off, brake, the table fall and protect work pieces from being damaged.

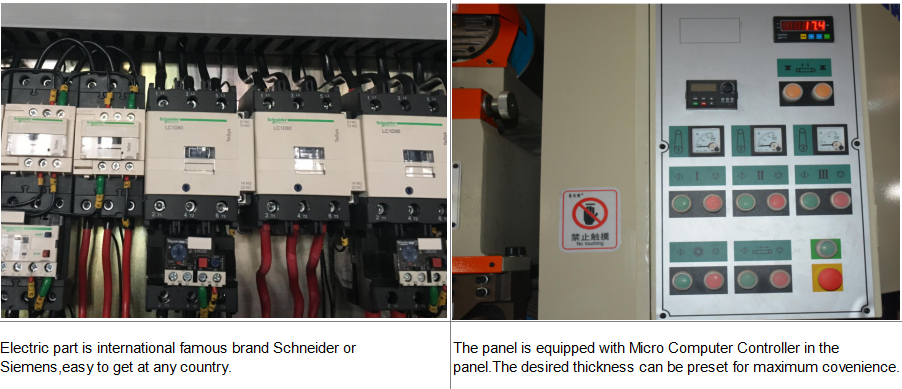

3.PLC is used to control the sanding belt sawing and thickness display, which guarantees the anti-jamming function of the machine.

4. Transference to concrete is set up very easily, so good for construction work. (There is no need for any transference
preparation.)

5. After installation of concrete, the surface looks like a mirror. (the cement does not stick.)

6. You are able to use film faced plywood until the plywood itself is damaged. (Strong with nailing and knifing)

7. Environmentally friendly. (Even after incineration, there is no hazardous substance.)

8. It can be used for a long time, and for the initial price paid for the material, you will feel its worth over time

calibrating and sanding machine
calibrating sanding line
Calibration sanding machine

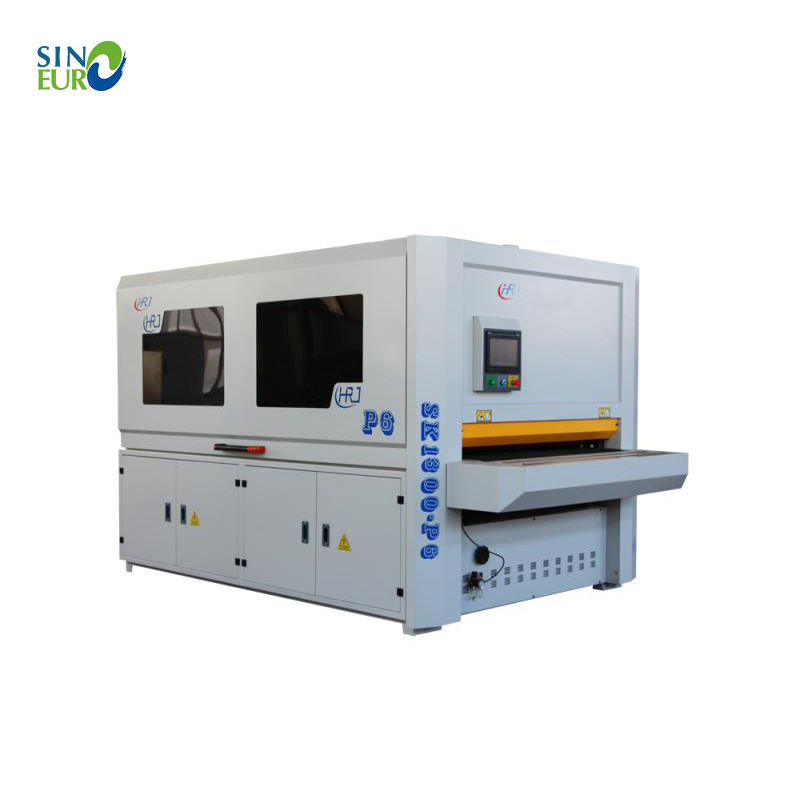

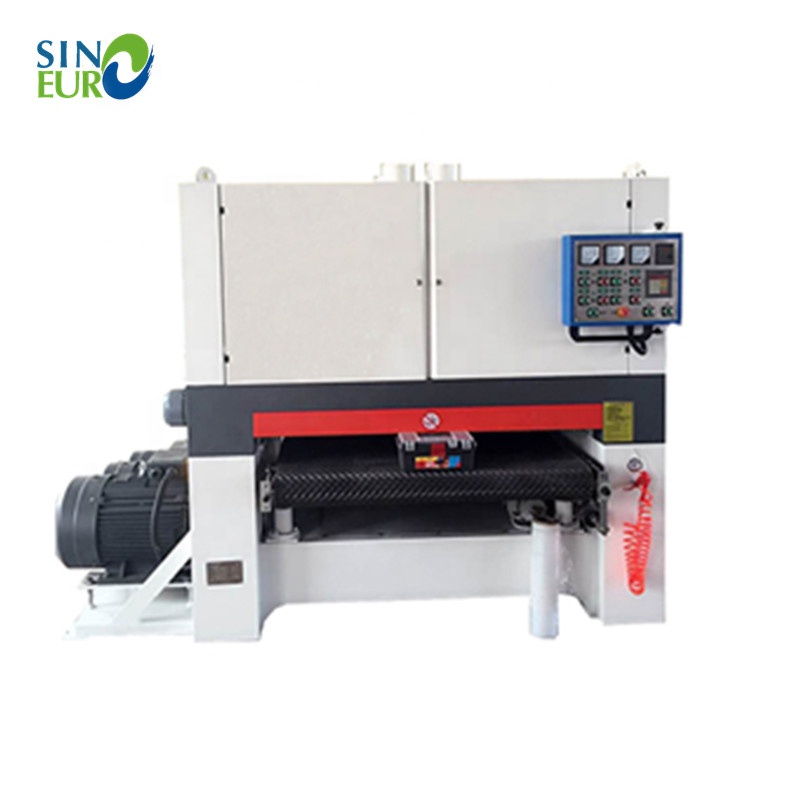

Wide Belt Sander
Furniture Brush Sander
polishing and sanding machine
wide belt sanding machine for plywood
calibrating and sanding machine for plywood

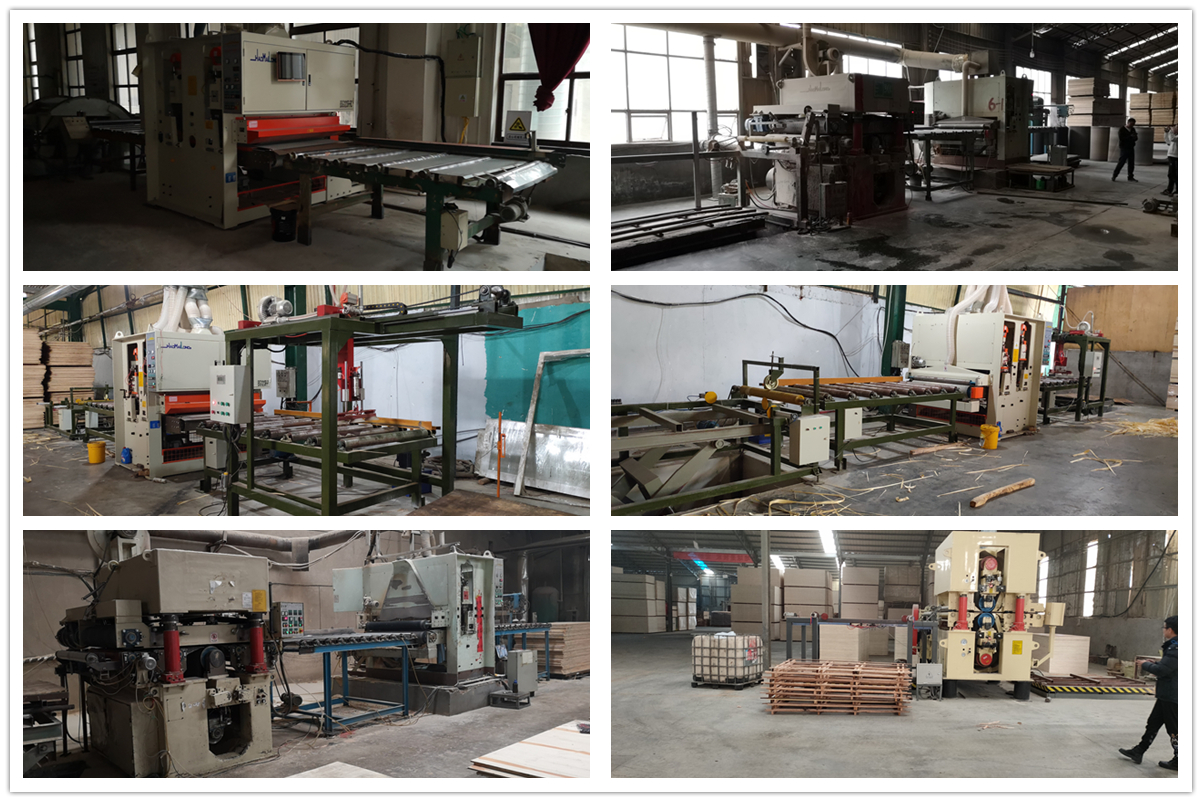

Machines in Users’ Factory
