High Precision Knife Grinding Machine

The travelling system of this kinfe grinder adopts cycloidal pin gear speed reducer, which works with the motor of national standaed to ensure travelling stability. The electromagnetic chuck is excellent in quality, duarable anf in line with national standard, which ensures less heat generation, great suction force and long service life. It is suitabal for apecialized large-scale processing factory, blade manufacturer, hardware accessory facotry, board processiong factory, printing plant…

Blade sharpening machine

blade sharpening machine 1500mm 2600mm high precision CNC knife grinder for veneer peeling machine and printing plant.
Product description

Blade Sharpening Machine Knife Grinder Application

This machine is for grinding straight knife of veneer peeling machine, clipper, log debarker, slicer, etc.

LMD-MZ7115 type knife grinder is specially for 4ft veneer peeling line.

We adop casting iron frame without deformation and precision gear reducer running system.

The head part of the machine is equipped with a fast lifting device,  it is more convenient and efficient to replace the grinding wheel.

The copper screw and sucker make the machine much more durable and precise.

blade sharpening machine 1500mm 2600mm high precision CNC knife grinder for veneer peeling machine and printing plant.
blade sharpening machine 1500mm 2600mm high precision CNC knife grinder for veneer peeling machine and printing plant.
blade sharpening machine 1500mm 2600mm high precision CNC knife grinder for veneer peeling machine and printing plant.
blade sharpening machine 1500mm 2600mm high precision CNC knife grinder for veneer peeling machine and printing plant.
Model
LMD-MZ7115
Max. Grinding Length
1600mm
Table Size
1550*180(200)mm
Wheel Size
Φ200*Φ100*Φ32mm
Work Voltage
380V/415V
Grinding Speed
17m/min
Adjustable Angle
±90º
Grinding Head Driving Mode
Transmission (optional frequency dynamic)
Total Power
6.0kw
Overall Dimension
3850*1300*1300mm
Total Weight
1800kg
Detailed Images
blade sharpening machine 1500mm 2600mm high precision CNC knife grinder for veneer peeling machine and printing plant.

Name:  CNC controller

Blade sharpening machine has automatic CNC controller, easy to operate and durable.

blade sharpening machine 1500mm 2600mm high precision CNC knife grinder for veneer peeling machine and printing plant.

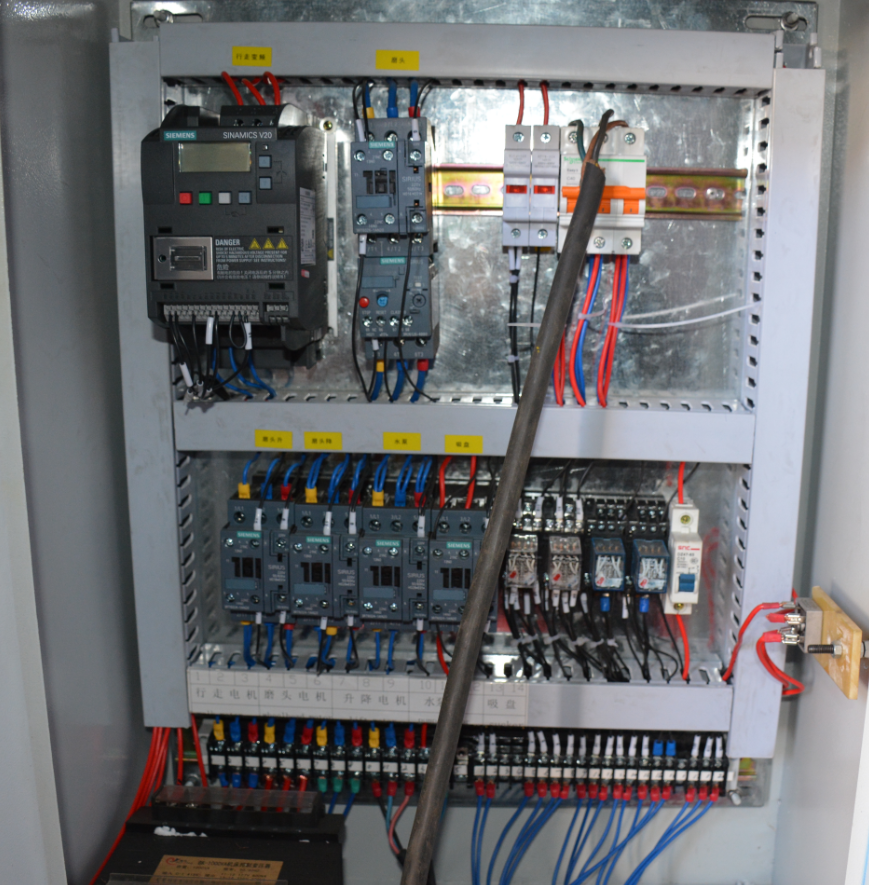

Name: Electric control panel
Scientific and orderly circuit, all the electrical parts are GB startand. We can also adops Siemens electrical parts according to customers requests.
blade sharpening machine 1500mm 2600mm high precision CNC knife grinder for veneer peeling machine and printing plant.

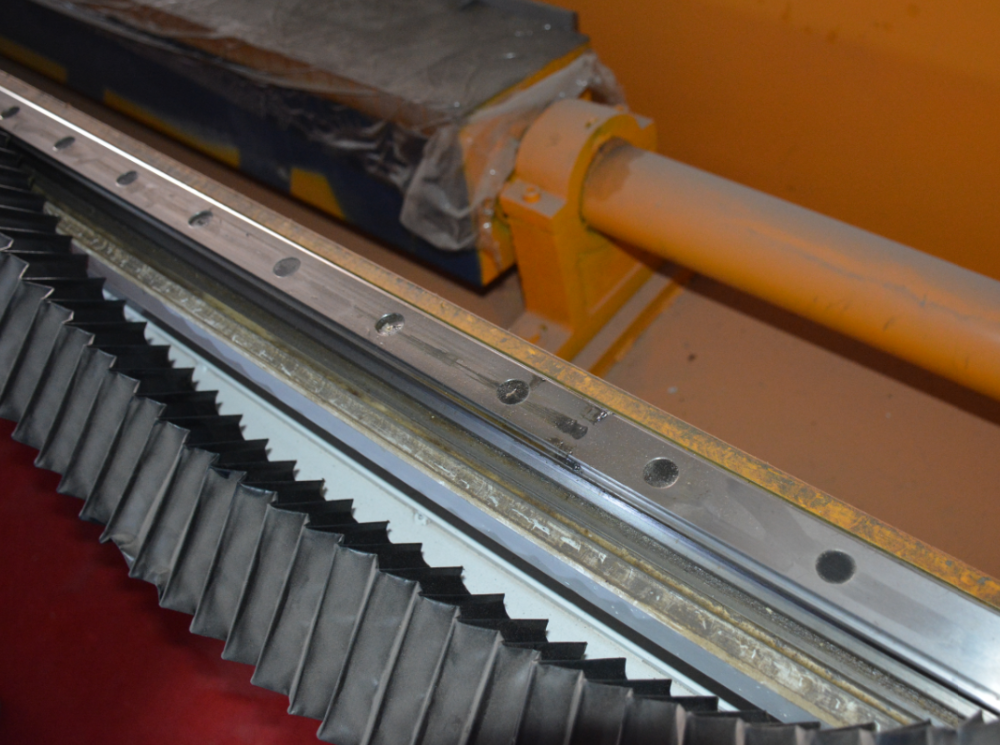

Name: Taiwan Shangyin Precision Linear Guide Rail
The machine runs much more precisely and stably, also long service life.

1500mm 2600mm high precision CNC knife grinder for veneer peeling machine and printing plant.
Name: Sucker
Copper sucker is more durable, and it is antirust.
Our Service
Pre-sale services:

We provide best service according to your demand, such as prophase plan, examine on the spot, process flow design ,

customized equipment, design solution for complete production lines and operator training etc.

In-sale services:

Send 2~12 technicians(adjustable according to the degree of automatic ) to the job site for guiding the installation and adjustment on duty,

training operators and finishing the check and accept together with you. You can come to our factory to study for free.

After-sale services:

We provide one year warranty to make sure your machine runs consistently. We always keep certain inventory level of spare parts,

which means the replancements can be shipped to your right away.

Packing & Delivery
1500mm 2600mm high precision CNC knife grinder for veneer peeling machine and printing plant.
Packaging
Size

3850 (L) * 1300 (W) * 1300 (H)mm

Weight

1800kg

Packaging Details

Normally it is nude package, or pack it according to customer’s requests.
