Biomass steam boiler

Specification
Name and Model
|
TOB-001
|
TOB-002
|
TOB-003
|
TOB-004
|
Capacity
|
1t/h
|
2t/h
|
3t/h
|
4t/h
|
Steam pressure rate
|
1.25MPa
|
|
|
|
Test pressure
|
1.65MPa
|
|
|
|
Rated steam temperature
|
194°C
|
|
||
Feeding water temperature
|
20°C
|
|
||
Fire grate size
|
1.8m²
|
3.36m²
|
3.36m²
|
5.72m²
|
Radiant heating surface
|
6.34m²
|
10.42m²
|
12.58m²
|
13.1m²
|
Convective heated surface
|
25.45m²
|
45.26m²
|
55.72m²
|
84.496m²
|
Economizer surface
|
21.12m²
|
26.4m²
|
28.16m²
|
54.5m²
|
Theoretical thermal efficiency
|
77.99%
|
77.25%
|
82.88%
|
80.87%
|
Exhaust gas temperature
|
132.1 °C
|
149.33 °C
|
106.17 °C
|
129.59 °C
|
Water volume
|
2.92cbm
|
4.6cbm
|
5.5cbm
|
6.2cbm
|
Fuel
|
Wood, Biomass particles
|
Biomass particles,wood
|
Wood, Biomass particles
|
Light oil,Wood, Biomass particles
|
Chimney diameter
|
Φ300*25000mm
|
Φ325*30000mm
|
Φ273*30000mm
|
Φ323*30000mm
|
Overall diameter of boiler main body
|
4213*1960*28930mm
|
5140*2400*3200mm
|
6217*3040*4235mm
|
6613*3500*4430mm
|
Total weight
|
About 8.8Ton
|
15Ton
|
18 ton
|
21Ton
|

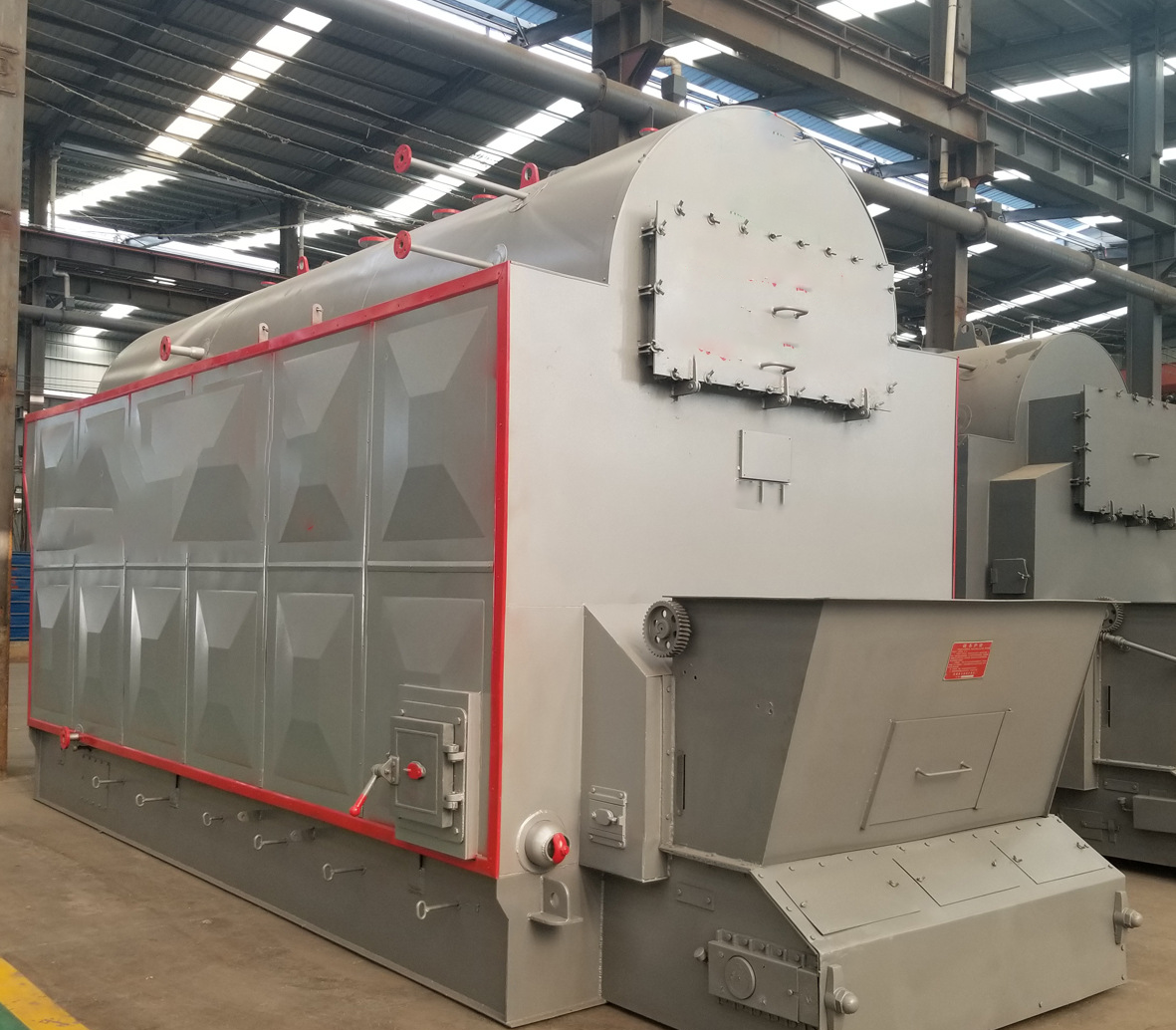

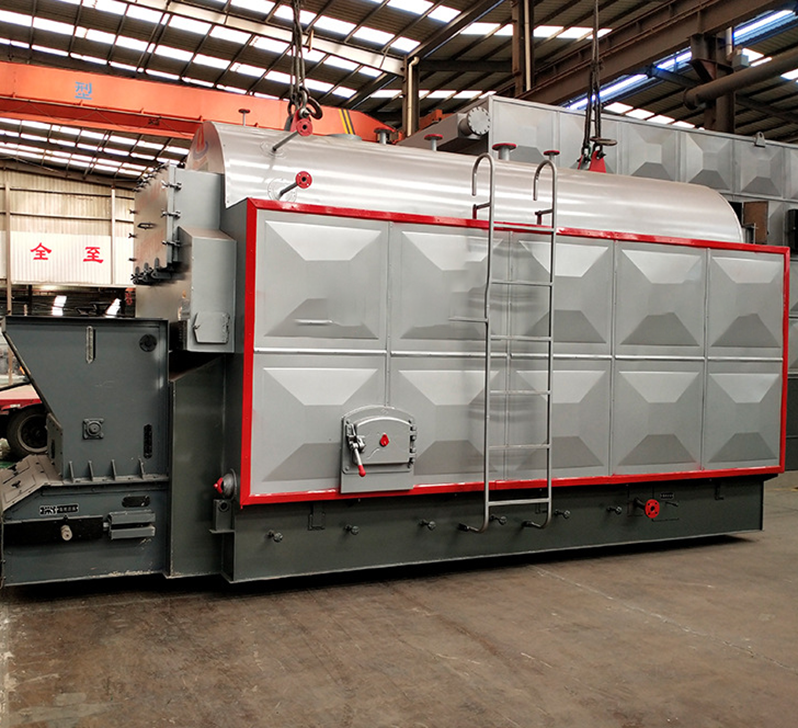

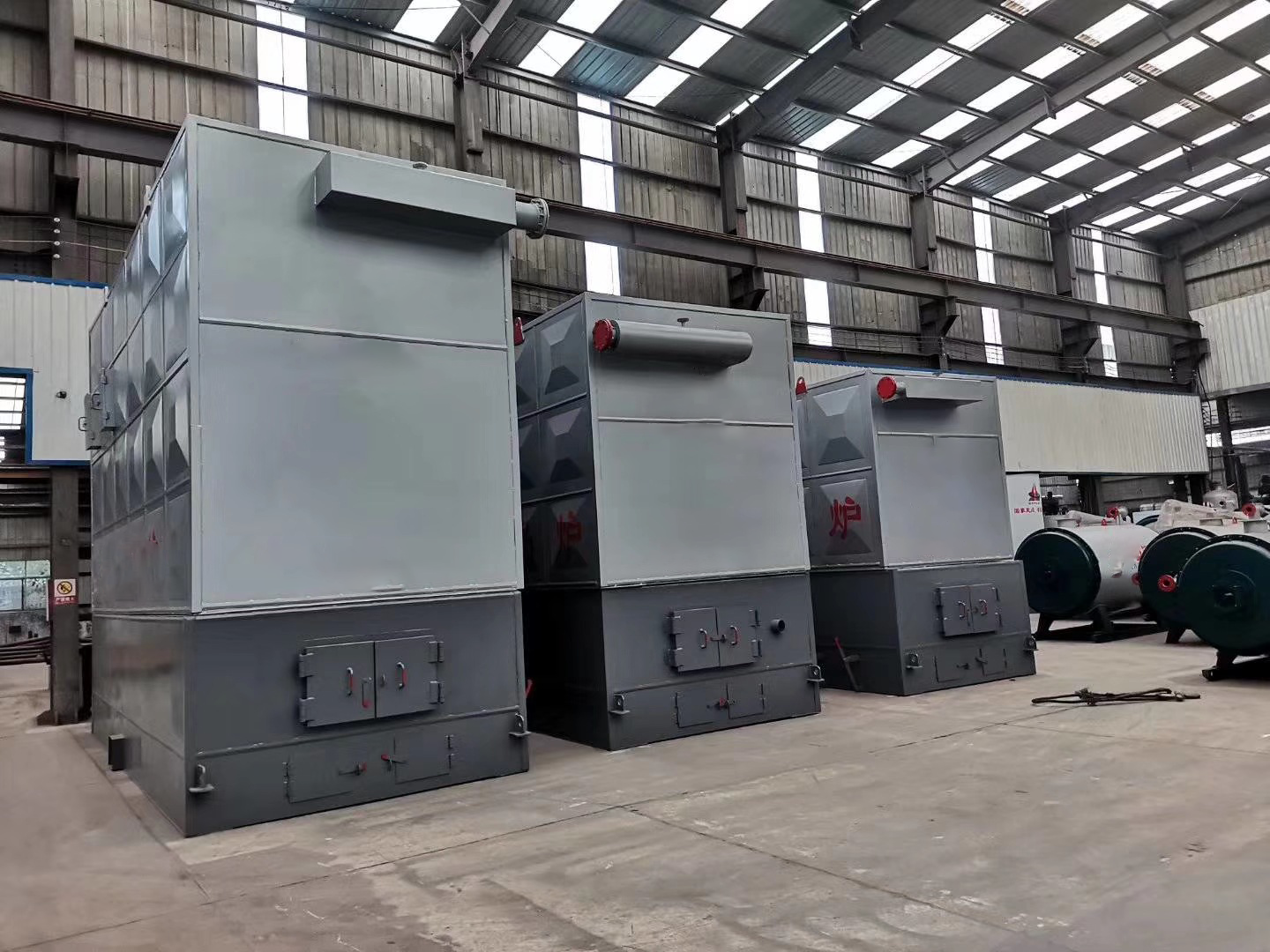

Product Description


The heating surface compact structure, and heating surface from the inside, outside close-packed circular tube constitutes the inner coil radiation heating surface,
outer surface and coil and inner coil convection heating surface.

The arrangement of heating surface is reasonable.
High thermal efficiency.

Applicable fuel: Wood, Biomass particles and so on.




Company Profile

Why Choose Us
1) Provide the free consultation of the equipment

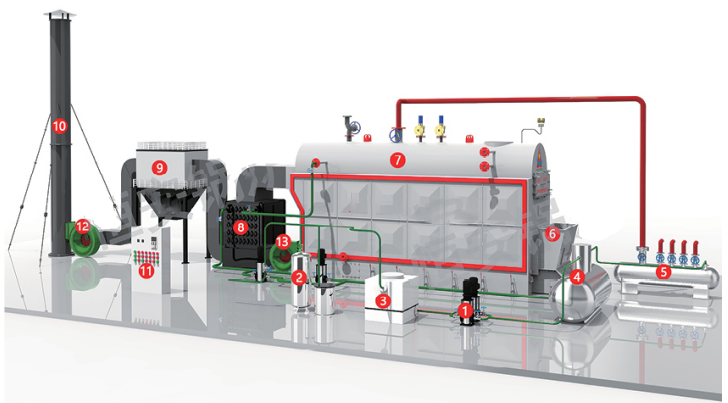

2) Provide the standard device and the flow chart
3) According to the clients’ special requirement, offering the reasonable plan and free design to help to select the equipment.
4) Welcome to visit our factory
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator.
After sale services:
1) 24 hours online service
2) Provide the VIDEO with Install and debug the equipment

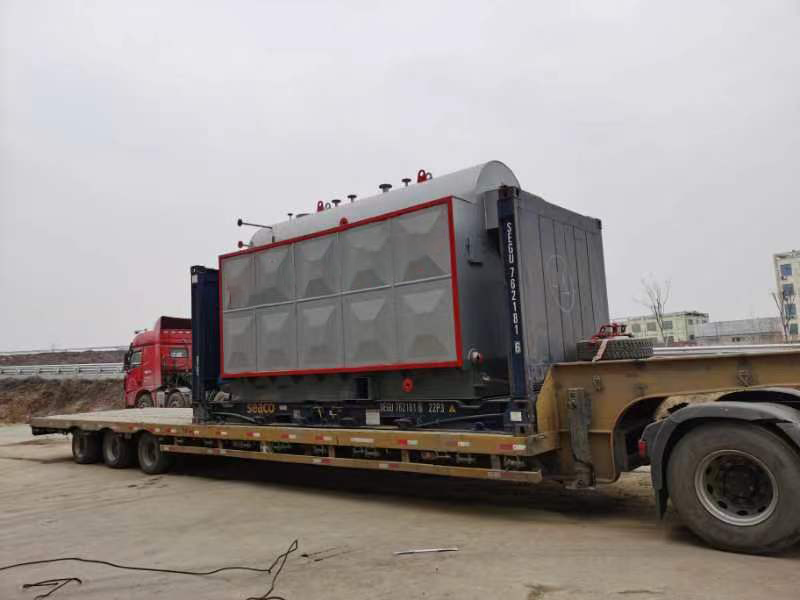

Packing & Delivery

FAQ
1. Can you offer good price with fine quality also?
Surely,if without quality, we cannot win long market.we will loose long-terms customers.Quality is our responsibility. We must produce and test machine well. Because we are always expecting long term business.Regarding the price. We are not sure if it is lowest or highest, but we will be offering reasonable.We don’t want heavy profits, We want a acceptable price to you,and we are expecting a bigger quantities of sales for different wood machines.
