automatic veneer stacker for plywood machine

Product Description
sinoeuro plywood production line machines manufactruer

Automatic veneer stacker



Automatic veneer stacker is used in rotary cutting lines and plywood production lines.
The use of stacker can not only save workers but also increase productivity.
The veneer is automatically transported to the stacker after being spun and cut by a conveyor belt.
Specification
Model
 4*4FT Automatic Veneer Stacker
 4*8FT Automatic Veneer Stacker
Veneer width
400-1300mm
4*3ft, 4*4ft, 4*8ft (size adjustable)
veneer thickness
1.2-3.6mm
1-4mm
Stacking speed
30-100m/min (speed adjustable)
30-100m/min (speed adjustable)
Stacking height
1000mm
1000mm
Vacuum absorb motor
1.5KW*4PCS
1.5KW*8PCS
Lift motor power
2.2 kw
2.2 kw
Total Power
23.2KW
29.2KW
Total weight
2400kgs
4000kgs
Overall dimension
8000*2040*2750mm
10600*2040*2750mm

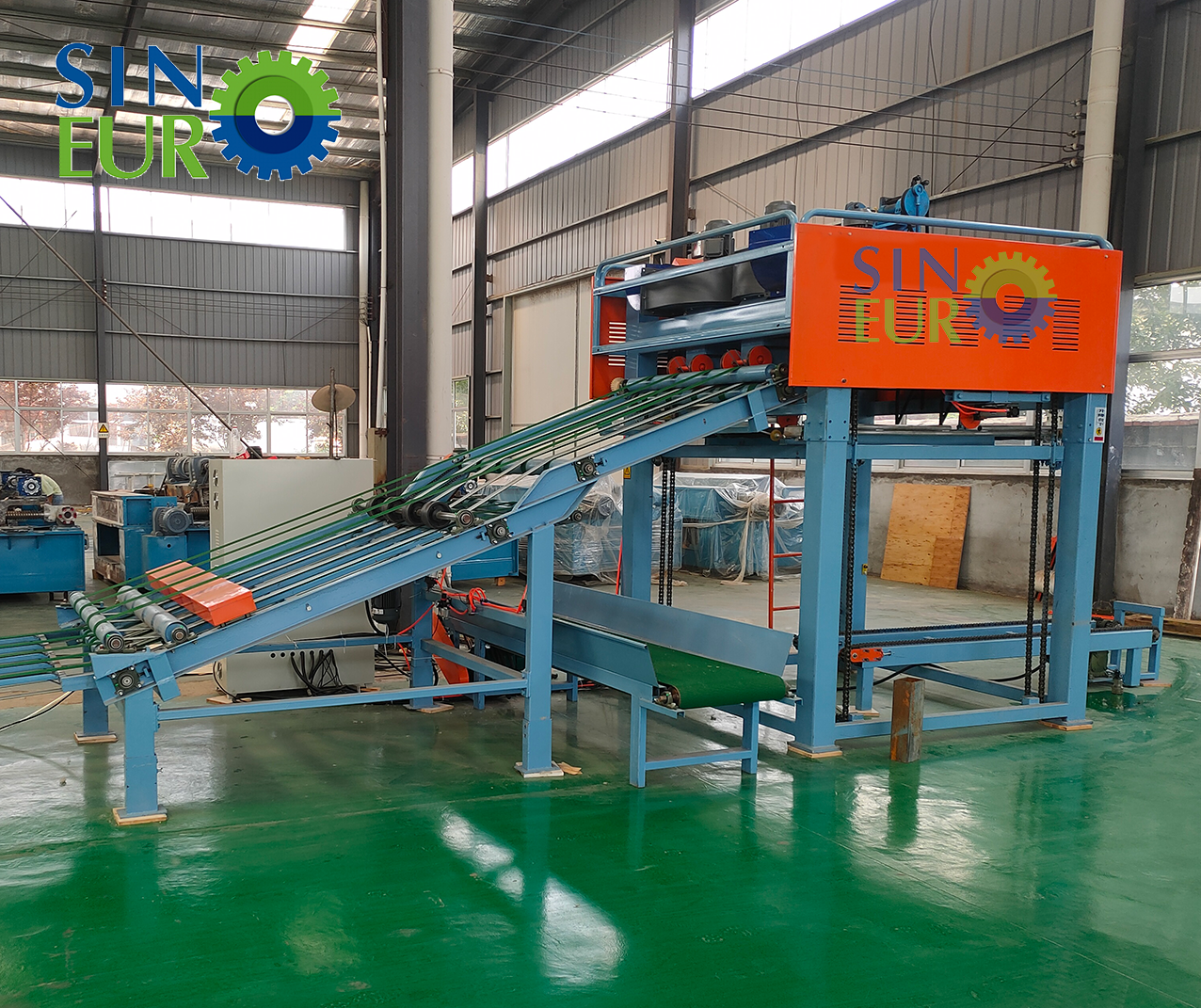

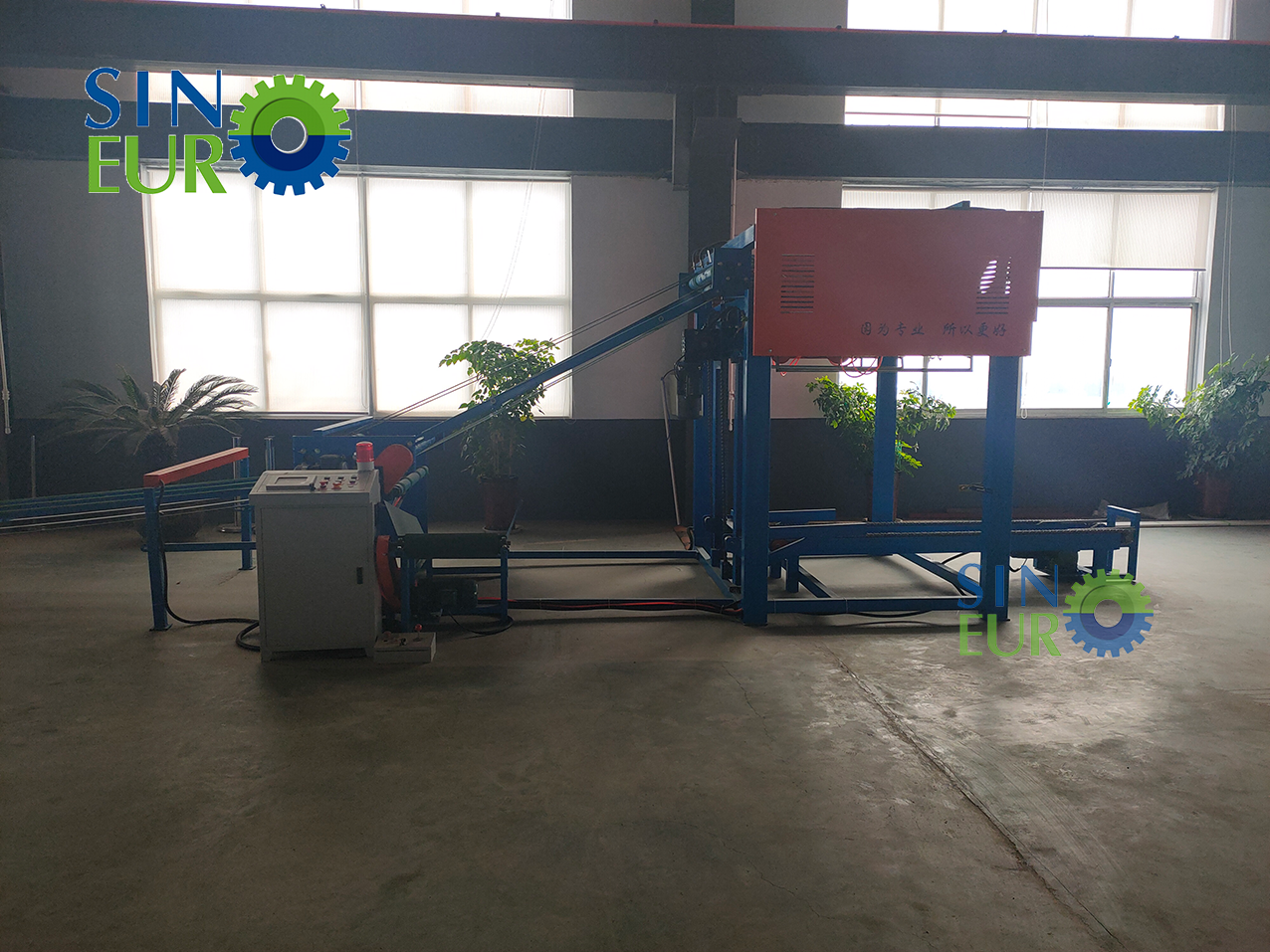

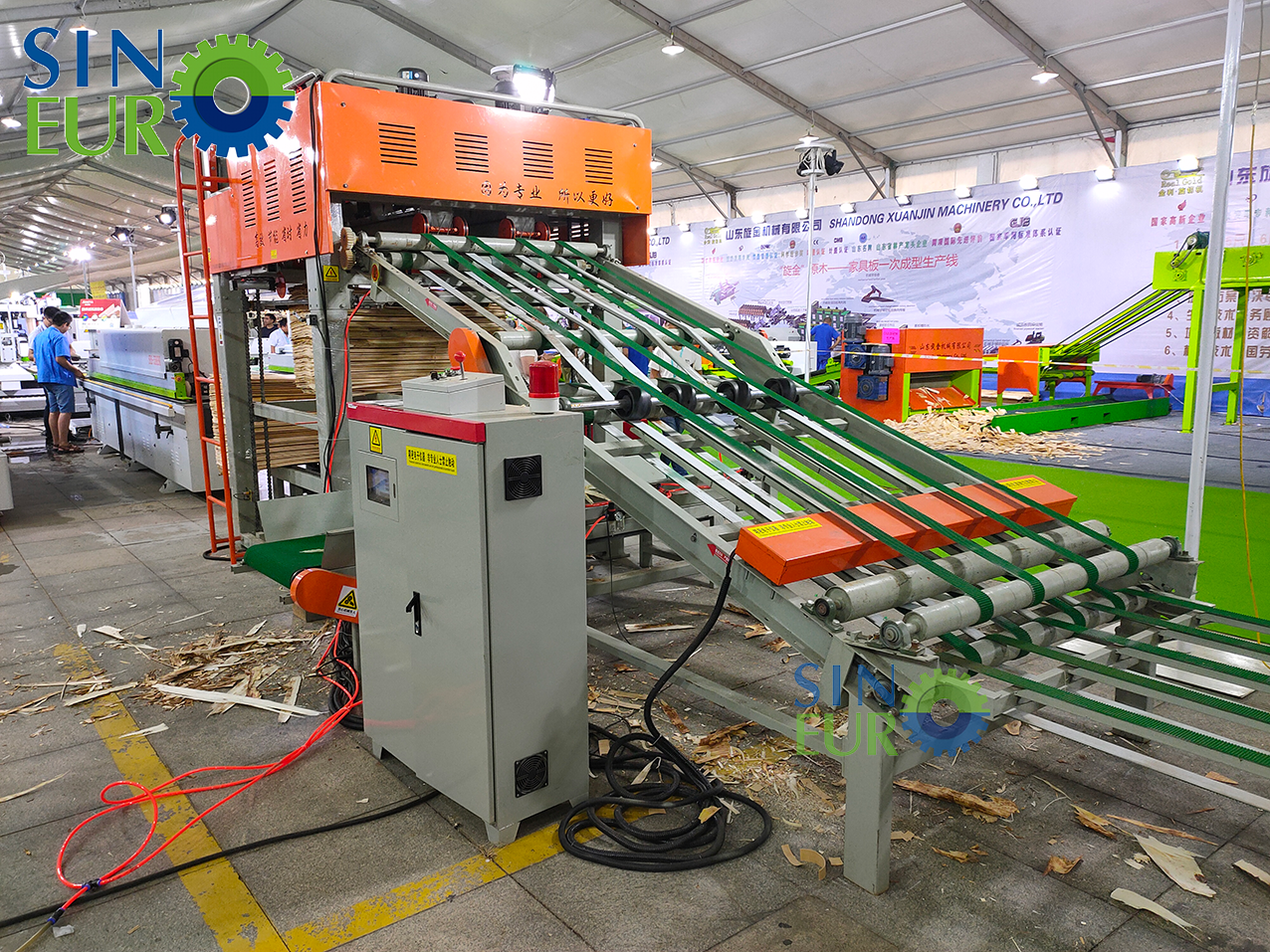

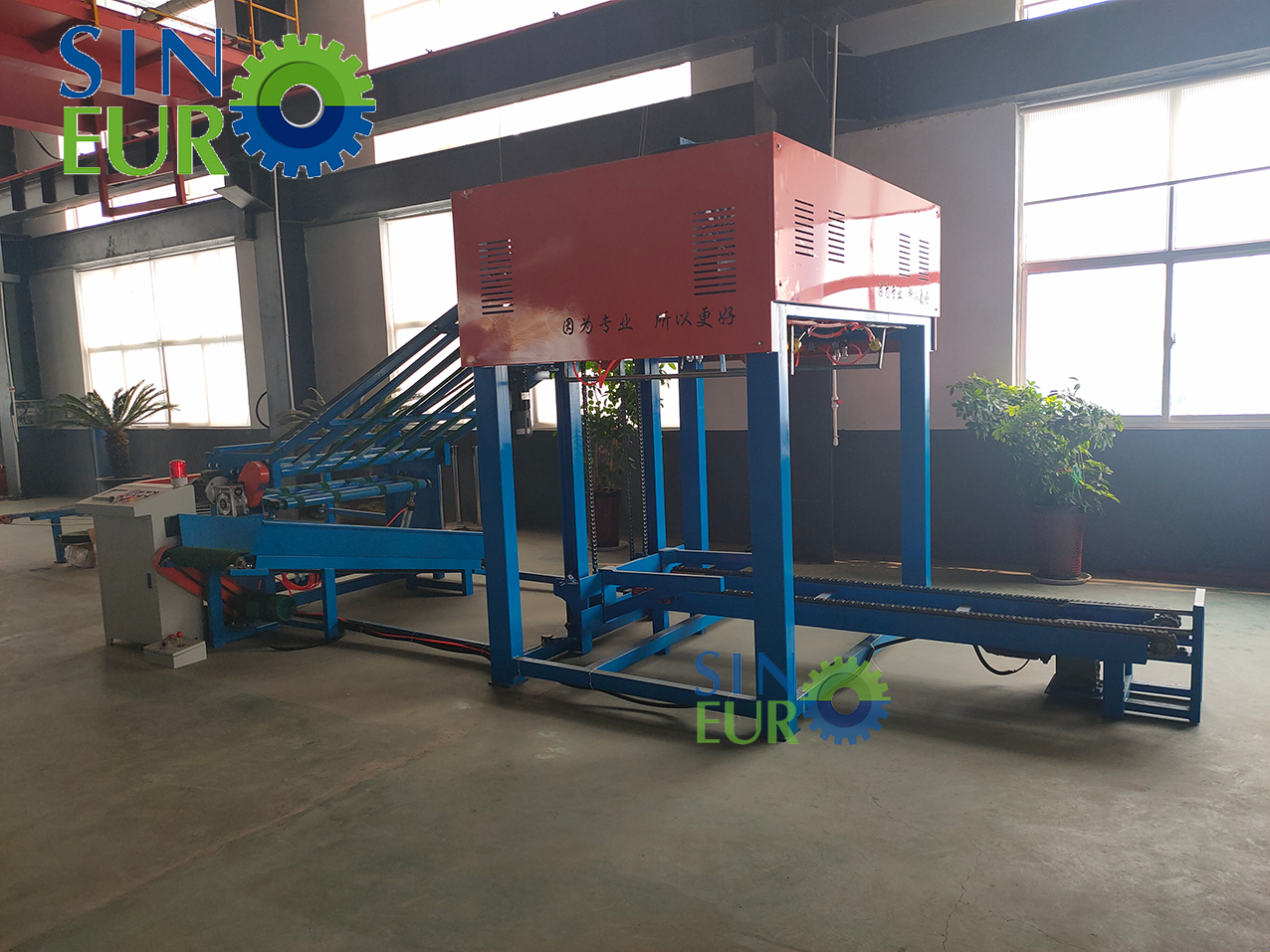

Machine live photo
automatic veneer stacker for plywood machineautomatic veneer stacker for plywood machine
automatic veneer stacker for plywood machineautomatic core veneer stacker
automatic core veneer stacker automatic core veneer stacker
Details Images

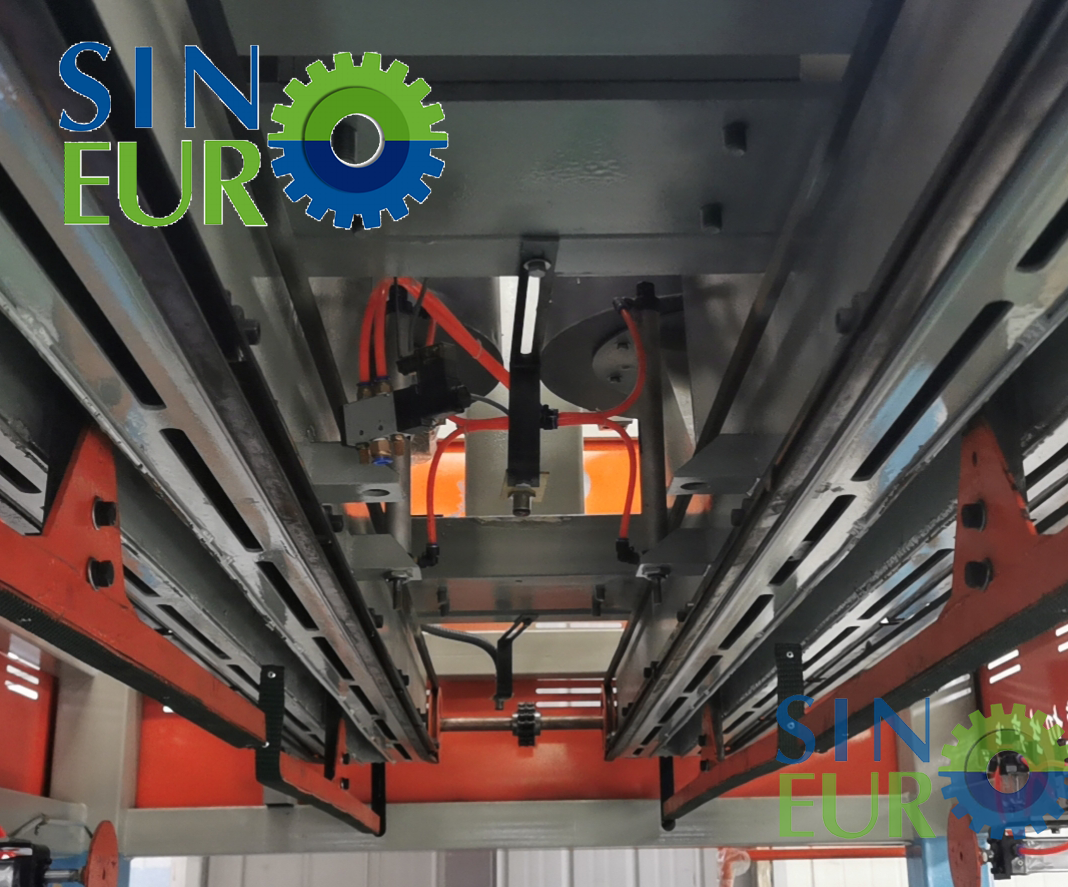

Vacuum absorb stacking veneer
Exclusive patent desgin,Strong Adsorbing for all thickness veneer
automatic core veneer stacker

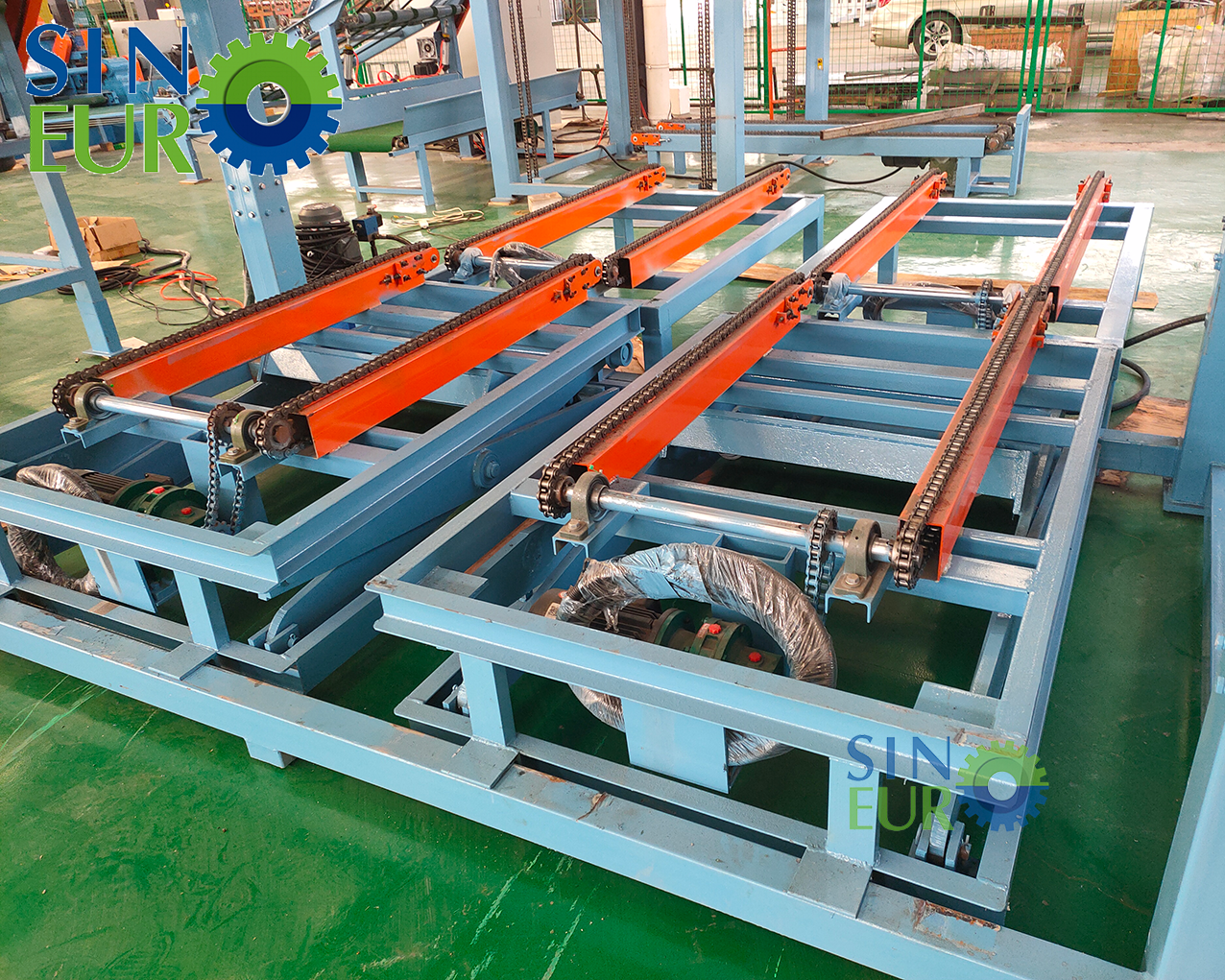

Sorting & Grading veneer
Veneer stacking by 2 grade or 3 grade, quality veneer and defects veneer
automatic core veneer stacker

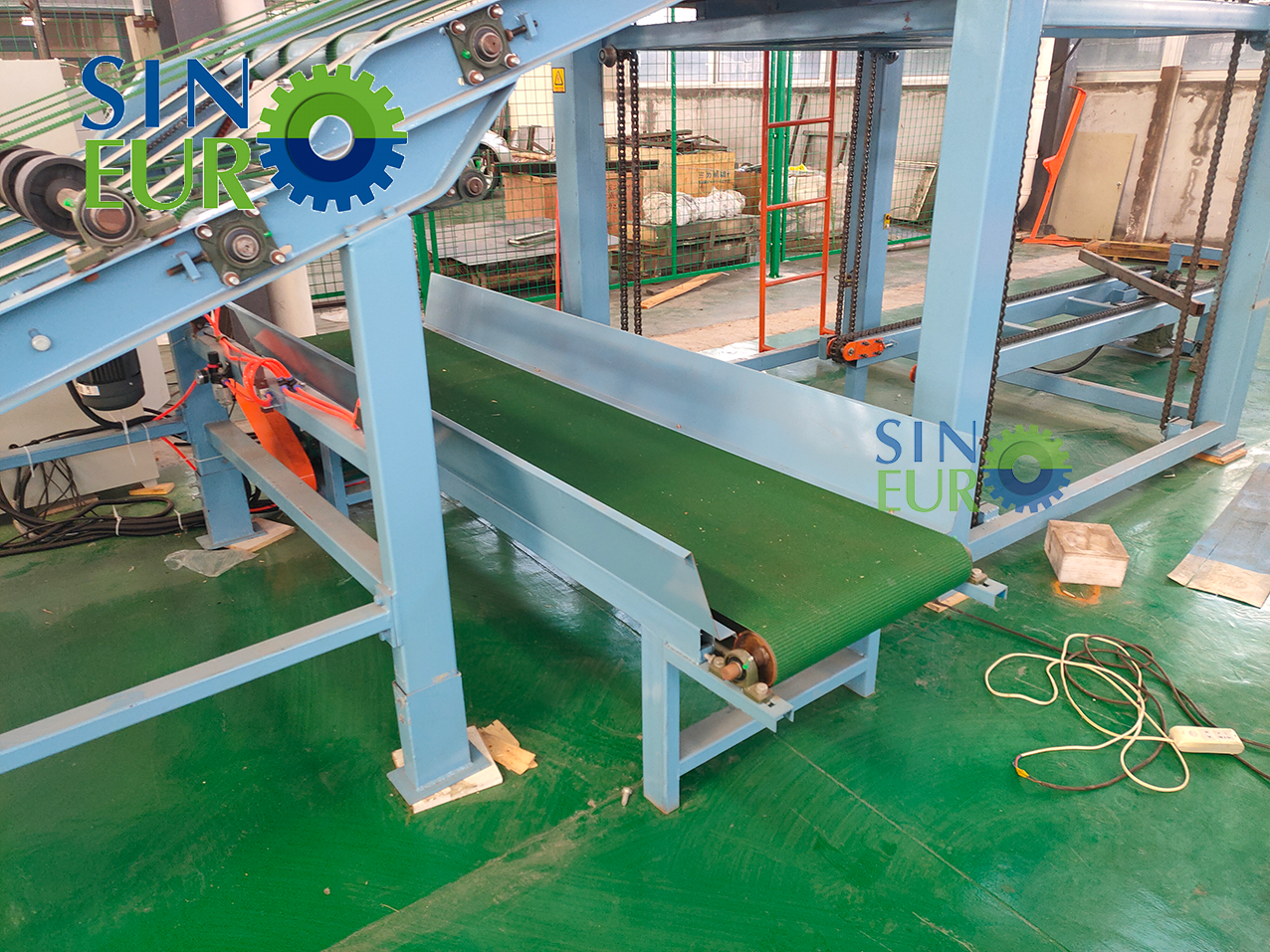

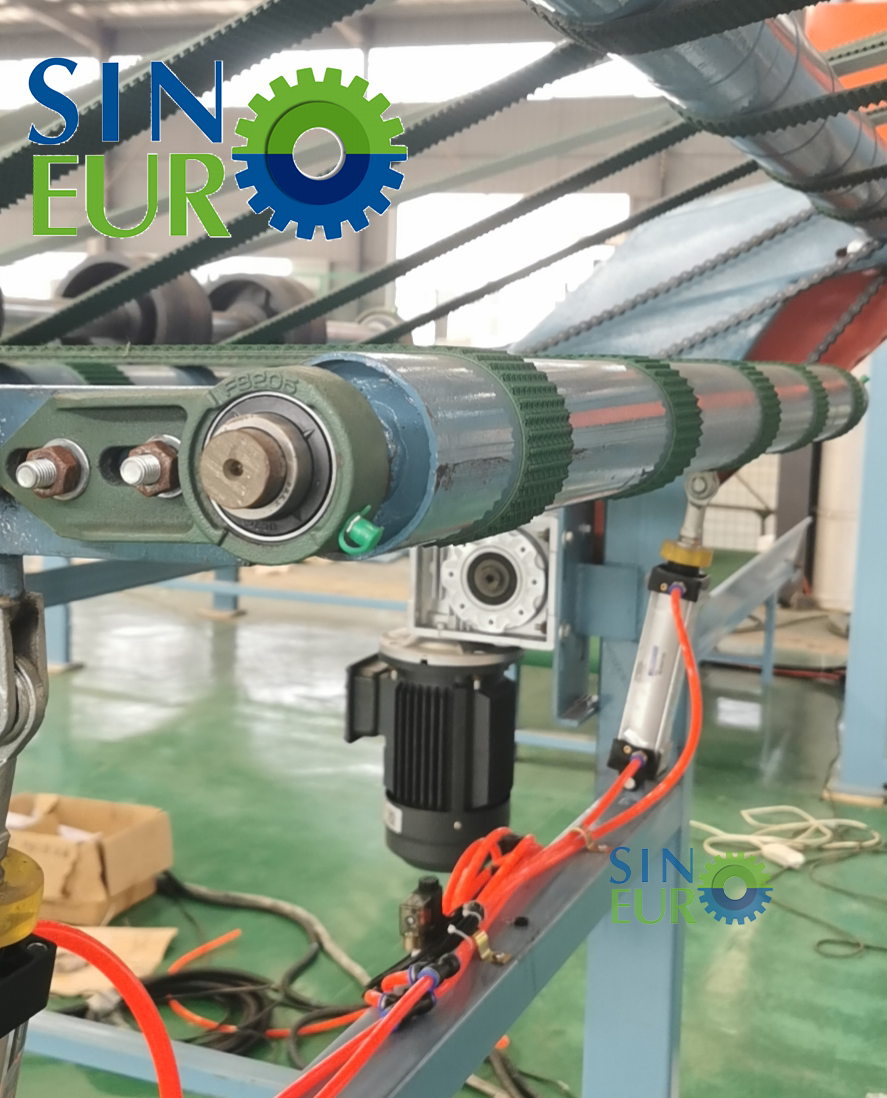

Waste veneer belt conveyor
Waste veneer belt conveyor waste veneer automatic drop and conveyor out
automatic core veneer stacker
Automatic outward control system
Complete automation of manufacturing process,High efficiency and stable quality,It can quickly adjust the product structure and expand production capacity,
and greatly reduce the labor intensity of industrial workers.
automatic core veneer stacker details

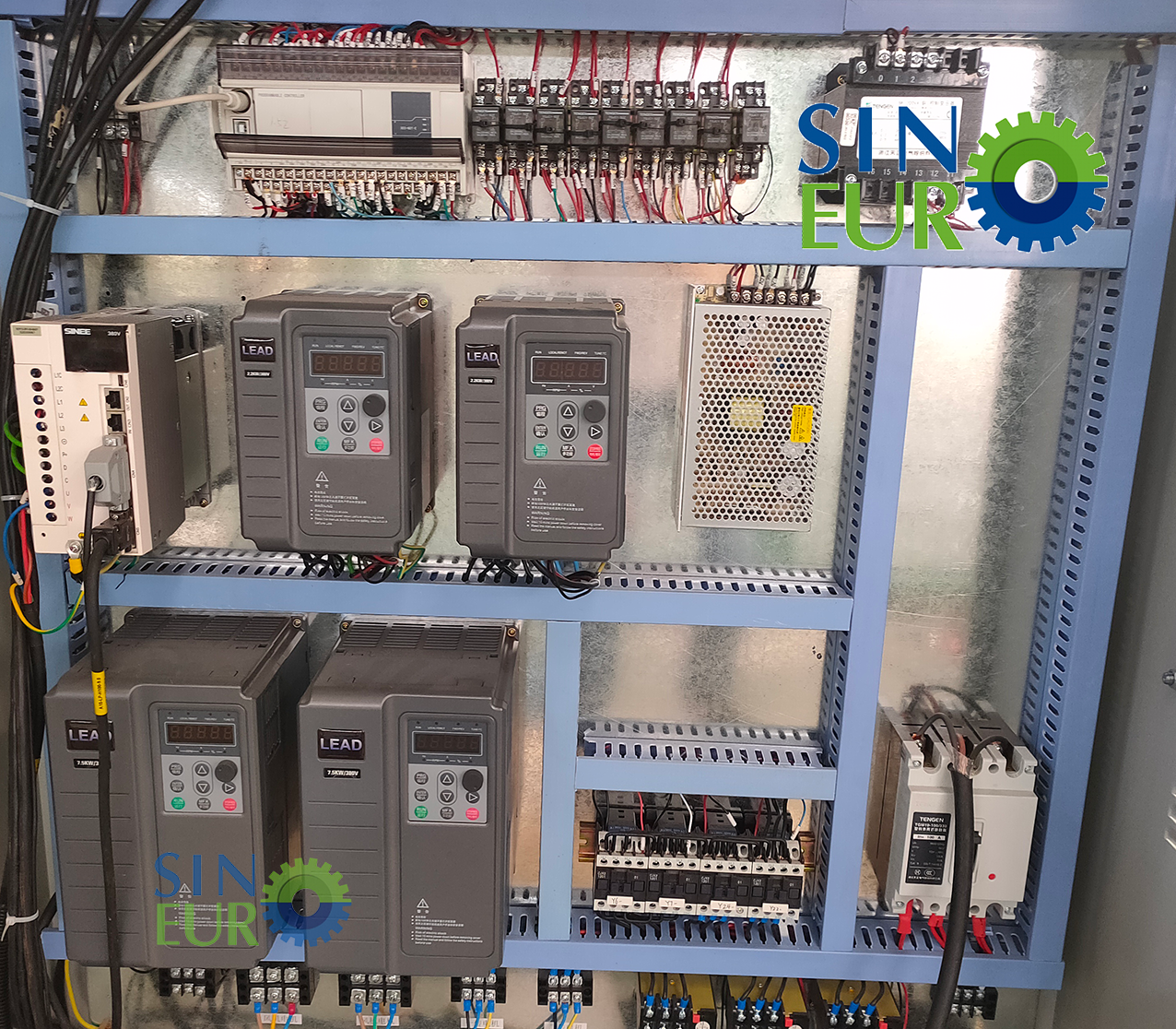

Lead control system
Lead control system is the most stable and precise system.
It uses Schneider brand electrical parts. And it operate easily and has long using life .
automatic core veneer stacker

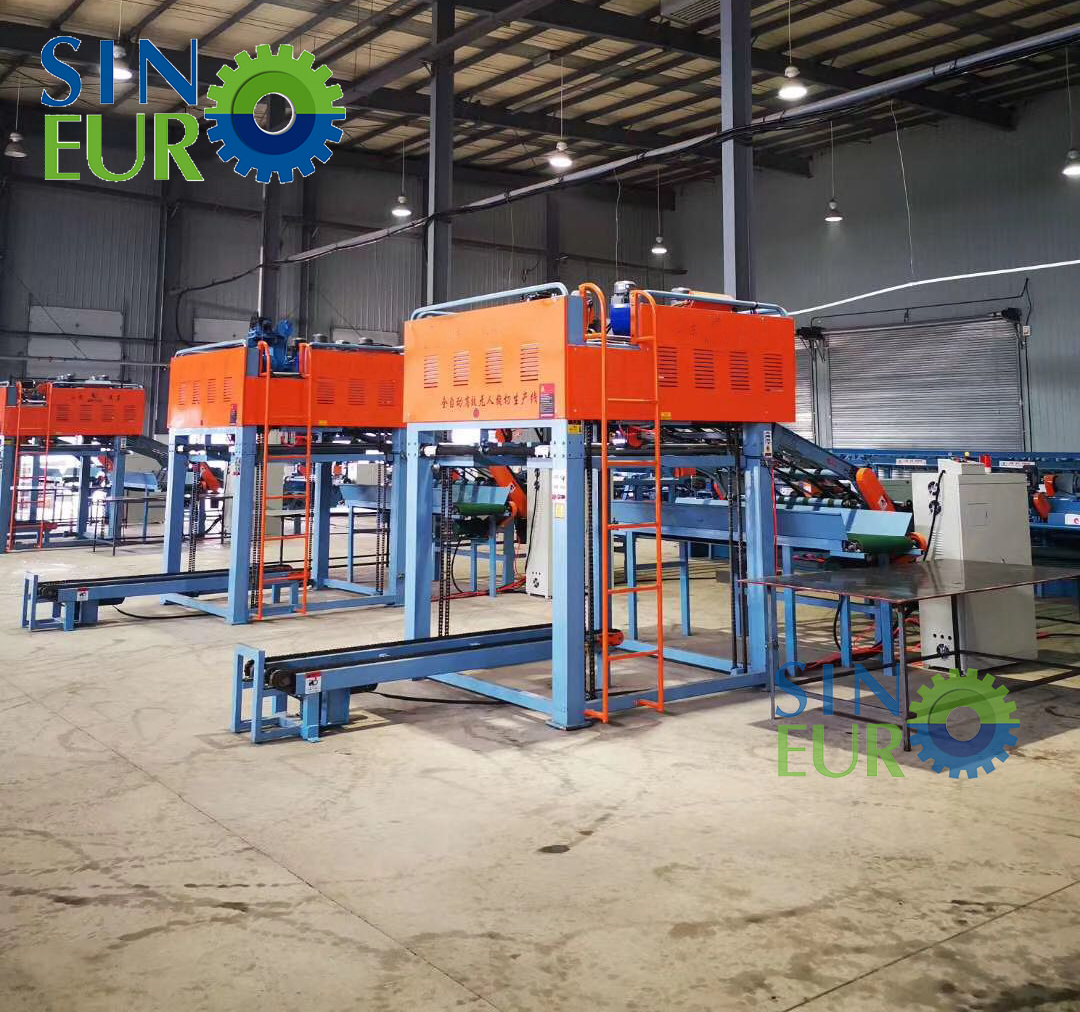

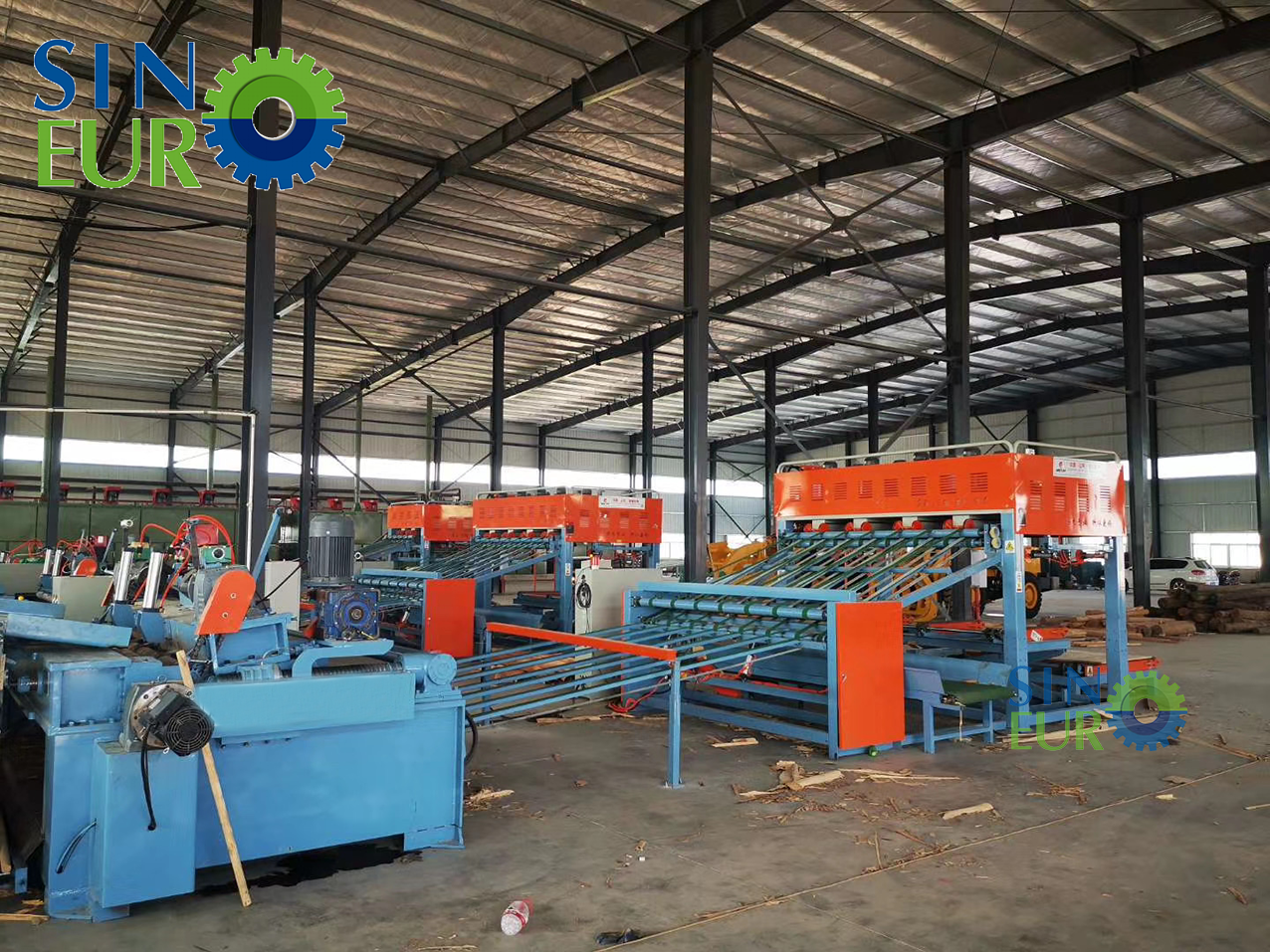

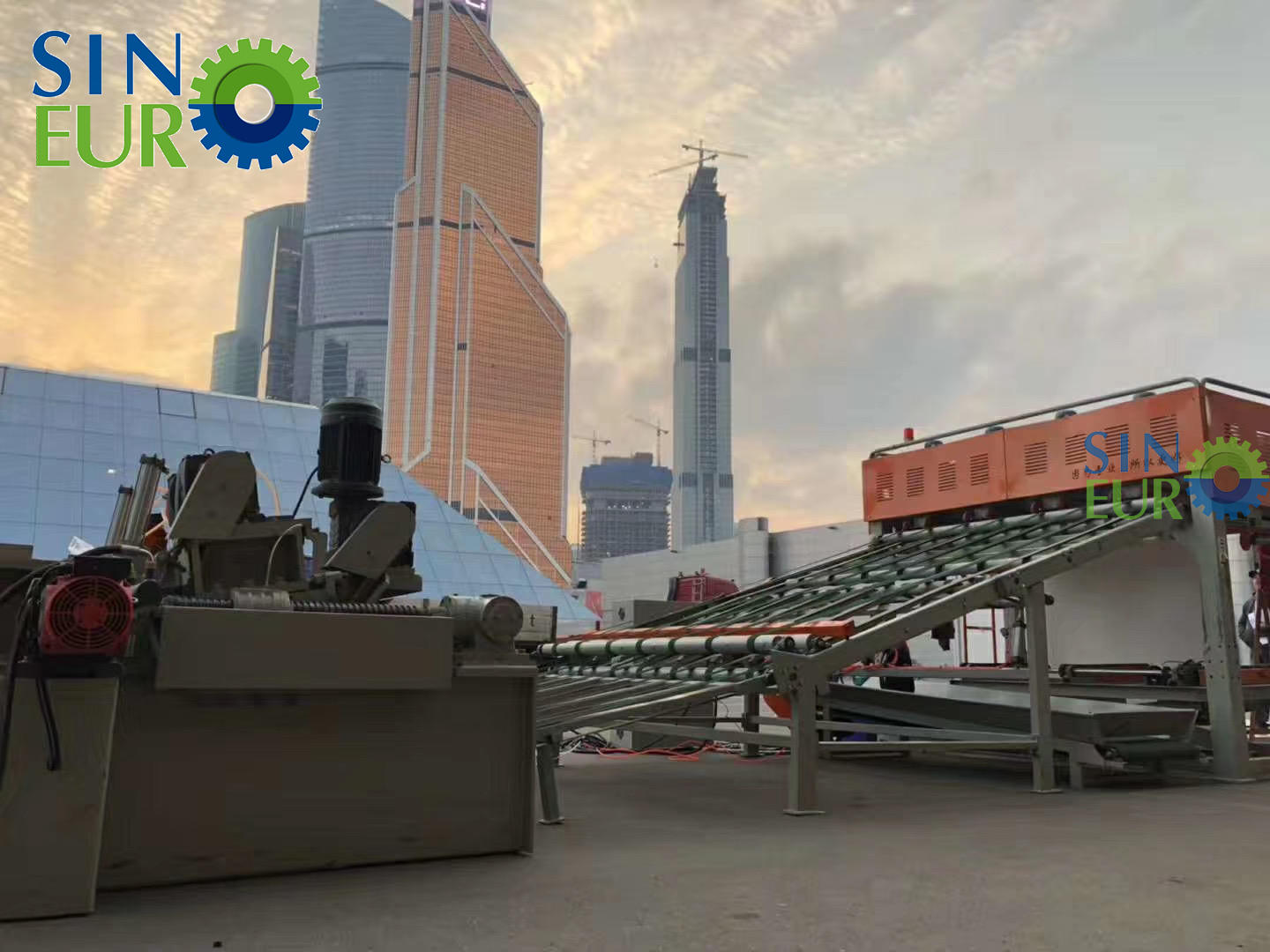

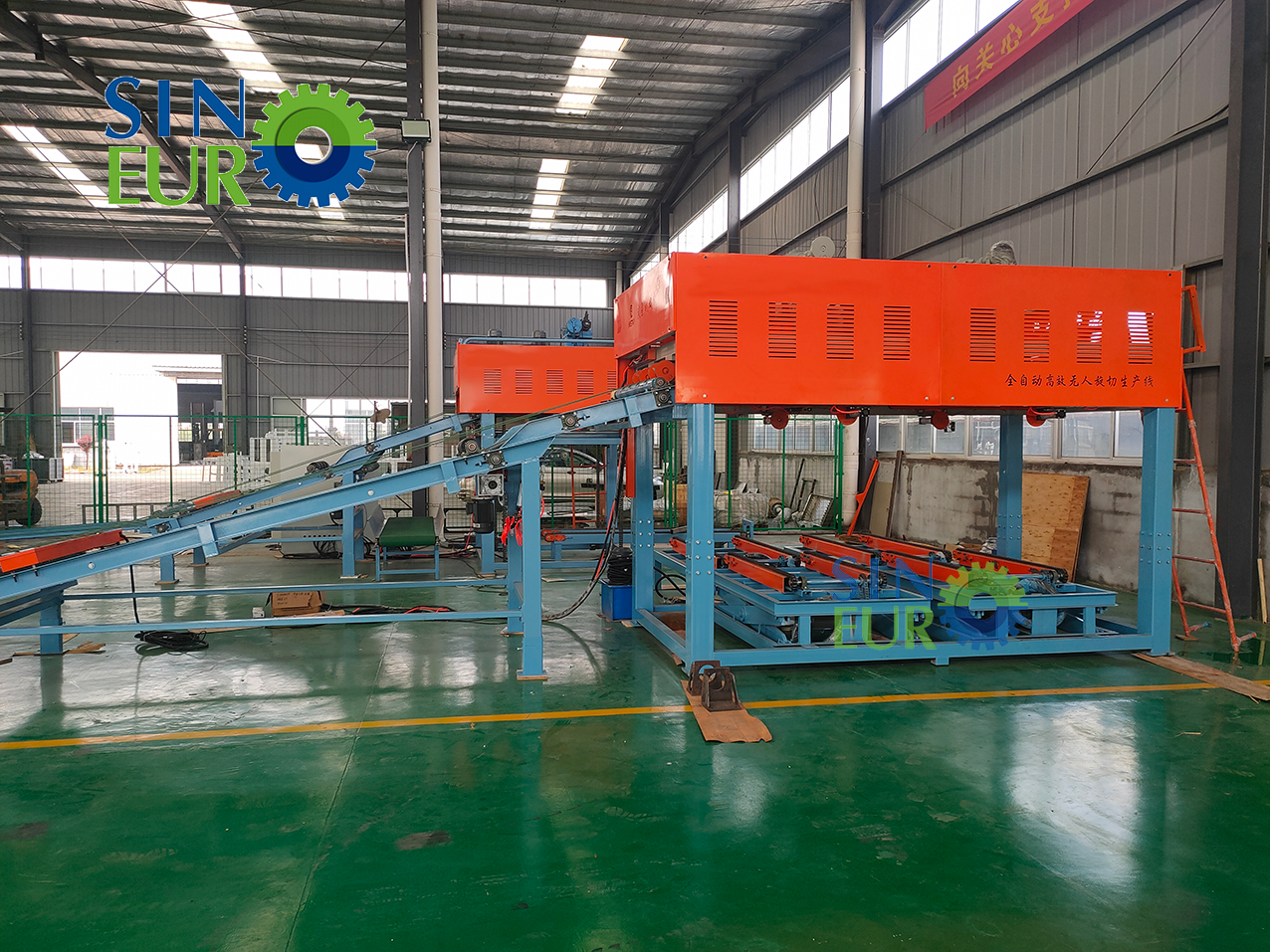

Machines in Users’ Factory



We are a professional manufacturer of plywood machines and have a large inventory of all types of models.

Here is a part of our factory to show the machines.

If you have any questions about plywood machines or process, please feel free to ask us.

automatic core veneer stacker factory
automatic core veneer stacker factory
automatic core veneer stacker factory
automatic core veneer stacker factory
Company Introduction
sinoeuro plywood machiery
sinoeuro plywood machiery
sinoeuro plywood machiery
sinoeuro plywood machiery
sinoeuro plywood machiery

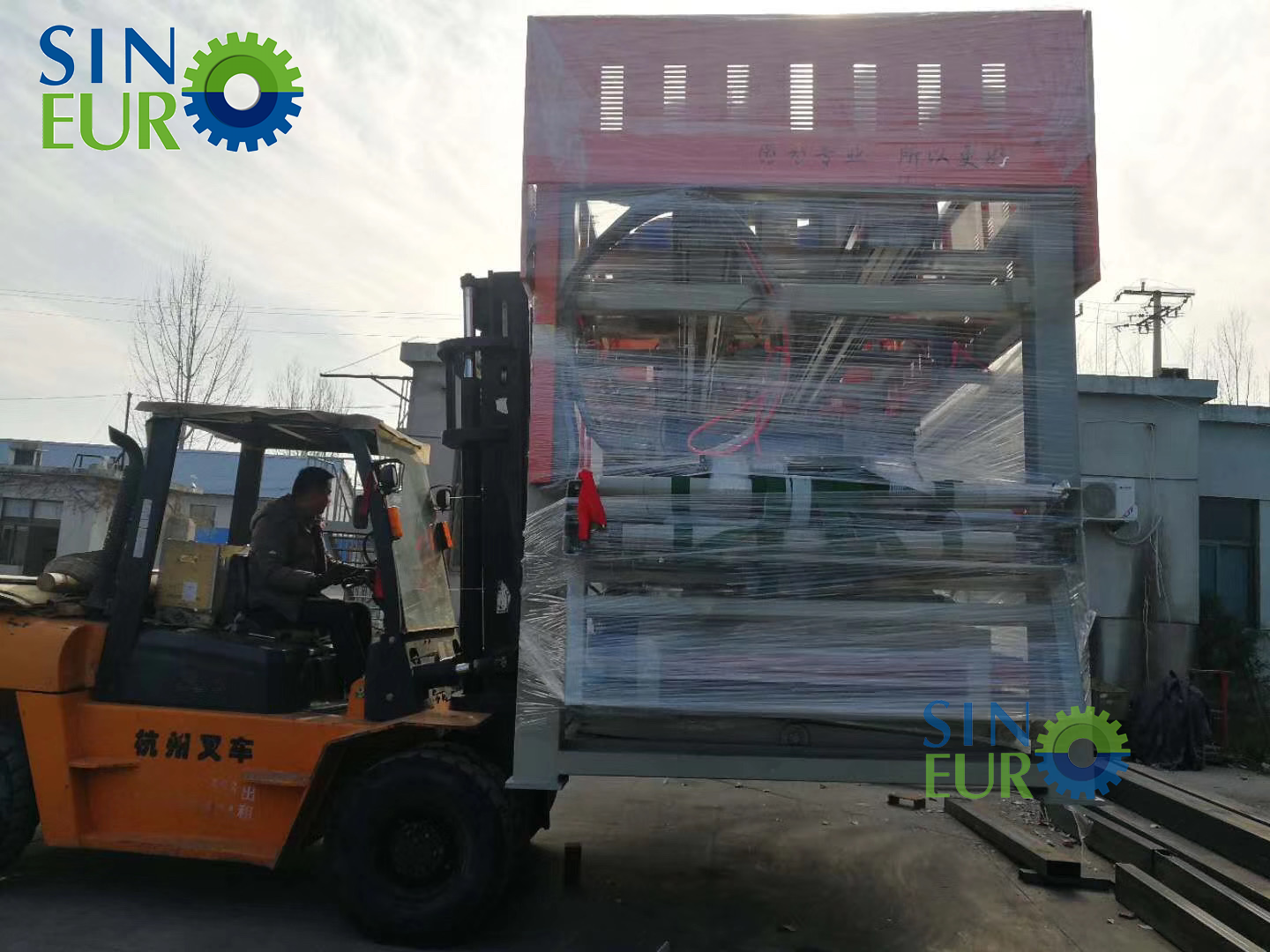

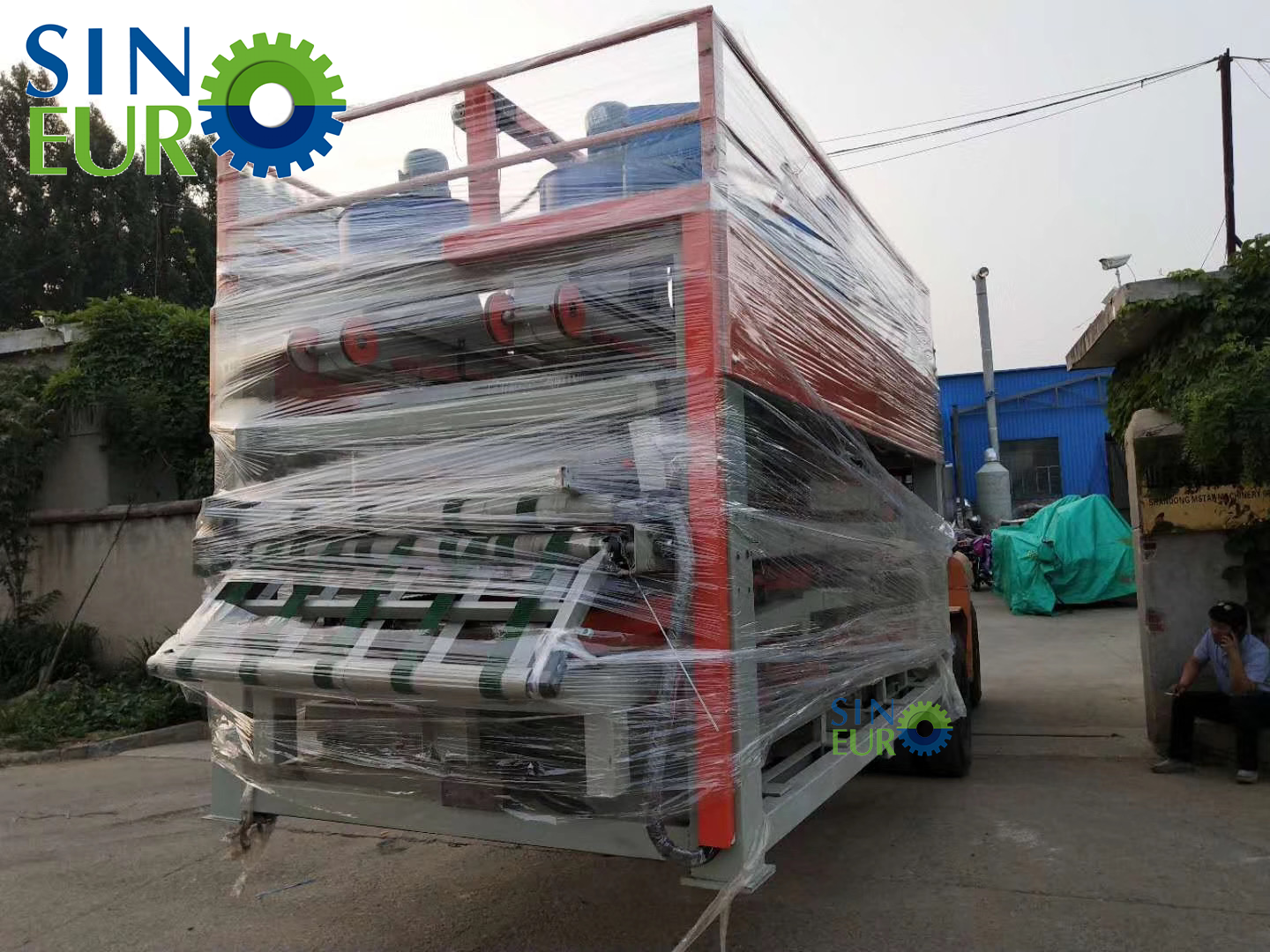

Packing & Shipping
sinoeuro plywood machiery
sinoeuro plywood machiery
sinoeuro plywood machiery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
