plywood veneer jointing machine

Veneer after drying may have different length and thickness, and the shapes may get irregular. This machine can detect the width, thickness, cavities of the panels, and have them rimmed, glued, spliced, cut to length and stacked automatically. With this machine, customized board of different sizes can be spliced.

This machine is mainly used for the production of plywood,LVL, floor base material, furniture board,constuction plywood…etc.Using this machine saves lots of core finishing worker, improves the quality of products and saves labor costs.

Product Description

Plywood veneer jointing machine

plywood veneer jointing machine

Specification
Models

CXCT-4C1

CXCT-4C2 CXCT-4B1
Knife length 1350(675 x 2 No.s) 1350(675 x 2 No.s) 1350(675 x 2 No.s)mm
Weight 7T 6T 5T
After jointing size 1,300x2600mm 1300x2600mm 1300x2600mm
Veneer thickness 1.0-4.0mm 1.0-4.0mm 1.0-4.0mm
Feeding speed 32(can be adjust) 6-7sheet (4*8ft)Max. m/Min 32Max. m/Min 32Max. m/Min
Number of glue threads 5-7Rows 7Rows 7Rows
Number of hole detectors 7Point 13Point 10Point
Total power required 22KW 21KW 21KW
In- feed conveyor 3KW 3KW 3KW

Separation device for waste

50*75 Air- operated 50*75 Air- operated 50*75  Air- operated
Conveying device for out-feeding 3KW 3KW 3KW
Heater for glue melting for edge and yarn application 5.5kw 5.5kw 5.5kw

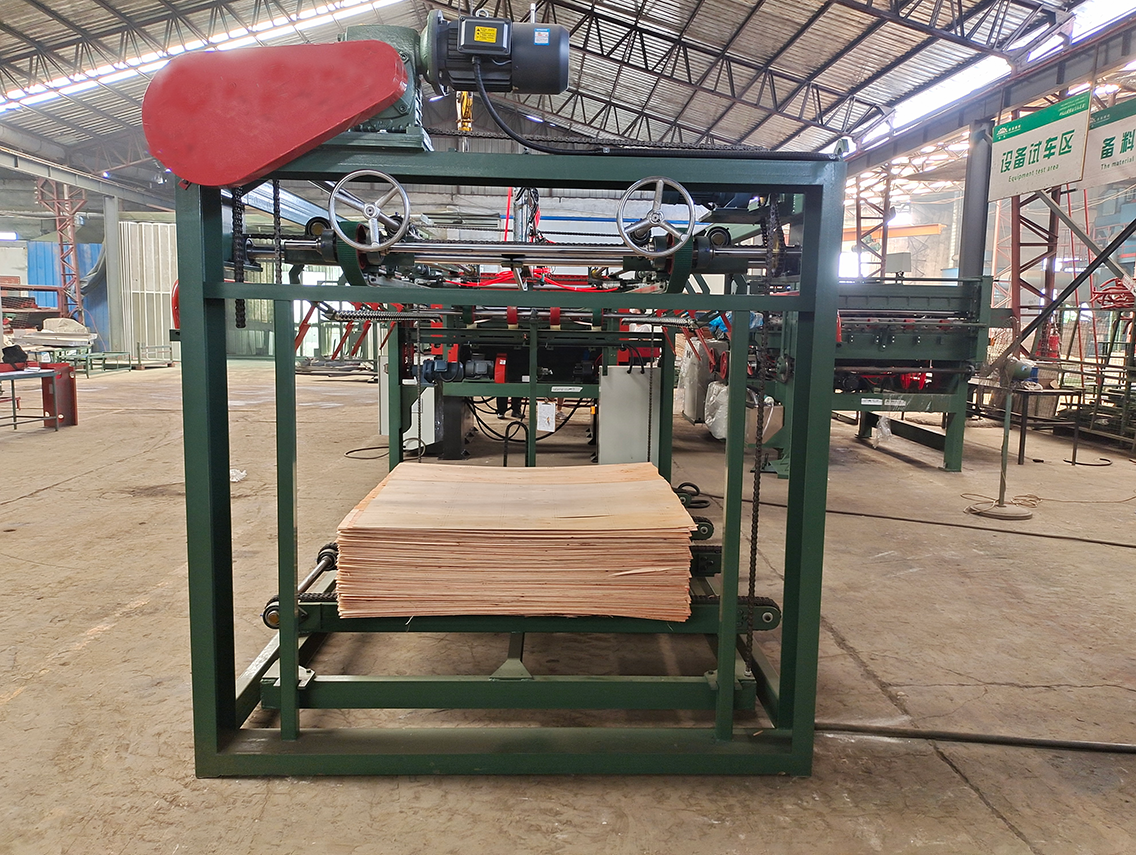

Lifting table and stacking machine 2.2kw 2.2kw 2.2kw

Dimension

12.5mx2.5mx2.3m 12.5mx2.5mx2.3m 12.5mx2.5mx2.3m

Output

6-7 sheet per minute 6-7 sheet per minute 5-6 sheet per minute
plywood veneer jointing machine

This machine is mainly used for the production of plywood, LVL, floor base material, furniture board, construction plywood,

container flooring board, melamine plywood, blockboard and so on.

Can be used for the horizontal splicing of rotary cut core veneer with the thickness of 1.2-3.6mm.
plywood production line veneer jointing core composer machine
plywood production line veneer jointing core composer machine

Plywood veneer jointing machine changes the traditional manual veneer forming technology and makes plywood paving unitized and automatic.

It saves lots of core finishing worker, improves the quality of products and saves labor costs.
Details Images
Servo Motor
Mitsubishi servo drive can protect veneer from over lap .
Intelligent thickness detecting
Detect core veneer thickness and cut uneven thickness part. Improve core veneer quality. Mechanical positioning is firm and accurate,
no damage and non-contact measurement;
Famous brand electrical parts
Japan Mitsubishi PLC , Siemens brand inverter, Schneider band electrical parts.
Low voltage circuit breaker
Schneider low voltage circuit breaker .High precision of voltage stabilization, automatic protection when output short circuit,
wide voltage range and strong anti-interference ability.
Festo Rotary Cylinder
Festo rotary cylinder control glue sticking position accuracy .That guarantee veneer no any overlap .
Machine frame laser cutting
The machine frame is made by laser cutting , stable and durable.
Clinet’s factory installat
