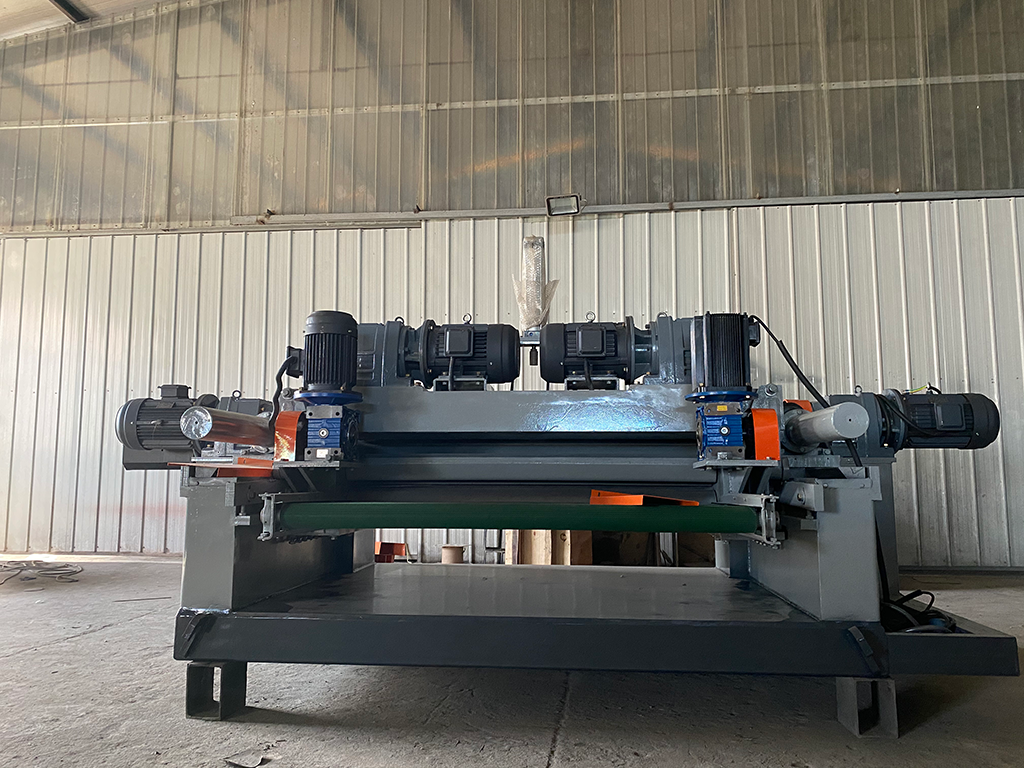

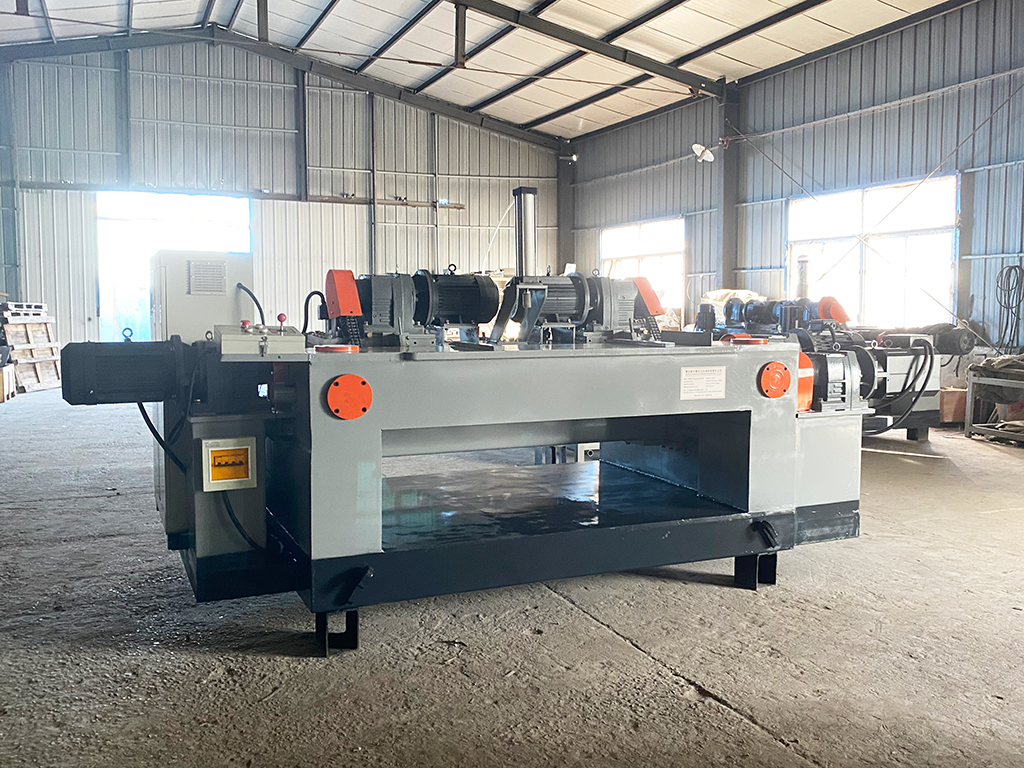

4ft veneer peeling machine
Product Description
The spindleless 4ft veneer peeling machine is used to peel the core veneer for the plywood making.
It is used after the wood log debaker machine. Its color, power, weight can be customized.

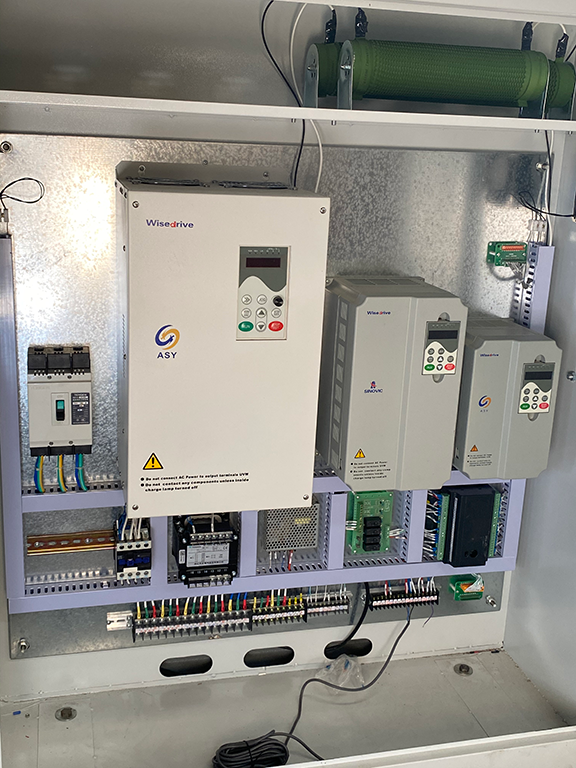

1.The advanced CNC system ensures the veneers cut uniformly with high precision and high efficiency.
2. Wood rotary peeling machine and cutting machine all in one.
1.Wood rotary peeling Max. Diameter is 500mm.
2.The thickness of the veneer, the gap of the knife can be adjusted automatically. You only need to input the thickness you need,
the machine can adjust the gap of knife by itself. So the workers needless adjust the knife gap by hand.
Suitable to different kind wood like eucalyptus, poplar,birth, pine and so on. Adjustable setting, the knife can be easily checked for sharpening.
2.The machine uses high-precision gear wear and durability
|
Model
|
SE-SP1500F
|
SE-SP1500S
|
|
Length of peeler log
|
1000-1300mm
|
900-1300mm
|
|
Diameter of peeler log
|
Φ36-Φ500mm
|
Φ36-Φ500mm
|
|
Length of blade
|
1500mm
|
1500mm
|
|
Thickness of veneer peeler
|
0.5-4mm
|
0.5-4mm
|
|
Linear speed of host machine
|
45mm
|
35-80m/min Speed adjustable
|
|
Diameter of driving roller
|
120mm
|
610-2540mm
|
|
Diameter of pressurebar roller
|
120mm
|
120mm
|
|
Power of feeding Motor
|
7.5KW Servo Motor
|
120mm
|
|
Power of single roller
|
11KW
|
11kw servo motor
|
|
Power of double roller
|
11KW
|
5.5KW*2pcs
|
|
Power of cutter
|
2.2KW
|
7.5KW*2
|
|
Power of rubber roller
|
2.2kw
|
2.2KW servo motor
|
|
Power of conveyor
|
2.2kw
|
2.2kw
|
|
Total Power
|
35.4KW
|
1.5kw
|
|
Total Power
|
35.4KW
|
42.9KW
|
|
Total weight
|
50000kgs
|
52000KGS
|
|
Overall dimensions
|
4500*1800*1380mm
|
4500*1800*1380mm
|
Company Description
We also supply full plywood production line machines, incluing log debarking machine, veneer peeling machine, knife grinder, veneer stacker, glue spreader, hot press machine, cold press machine, edge trimming saw machine and so on. If you have any needs or probelms, please contact us! We will provide professional suggestion and service.
